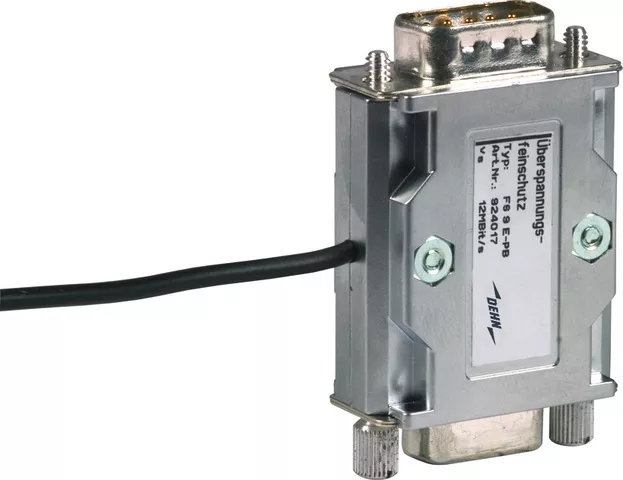

Ogranicznik przepięć FS 9E PB 6, wtyk/gniazdo D-Sub, 9-biegunowy FS 9E PB 6
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 924017 |
GTIN(EAN) | 4013364045934 |
Price unit | piece |
Catalog price | 1 410,33 zł (1 146,61 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 38,4 g |
ETIM class: | Surge protection device for data networks/MCR-technology |
Mounting method: | Other |
Connection 1: | D-Sub 9-pole |
With remote signalling contact: | no |
Number of conductors (without earthing): | 5 |
Limiting frequency: | 90 MHz |
Explosion-tested version: | no |
Nominal discharge surge current (8/20): | 0.4 kA |
Voltage protection level core/core: | 25 V |
Max. continuous voltage DC: | 7 V |
Degree of protection (IP): | IP40 |
Voltage protection level core/signal ground: | 25 V |
Voltage protection level signal ground/protective ground: | 18 V |
Nominal voltage DC: | 6.0 - 6.0 V |
Pro-active thermo-control: | no |

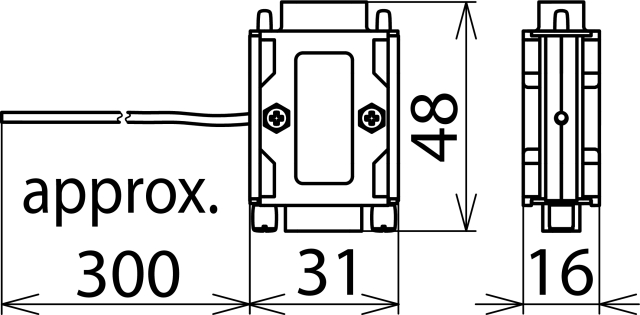

Assembly width: | 31 mm |
Signal disconnection: | no |
Earthing via: | Separate conductor |
