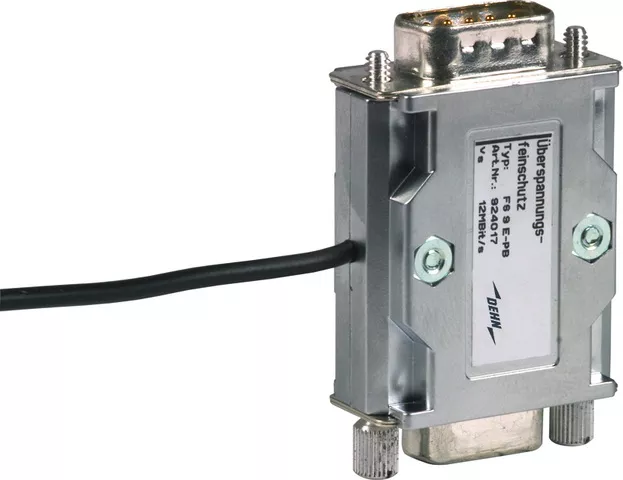

Ogranicznik przepięć FS 9E PB 6, wtyk/gniazdo D-Sub, 9-biegunowy FS 9E PB 6
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 924017 |
| GTIN(EAN) | 4013364045934 |
| Price unit | piece |
| Catalog price | 1 410,33 zł (1 146,61 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 38,4 g |
| Country of origin | Niemcy |
| ETIM class: | Surge protection device for data networks/MCR-technology |
| Mounting method: | Other |
| Connection 1: | D-Sub 9-pole |
| With remote signalling contact: | no |
| Number of conductors (without earthing): | 5 |
| Limiting frequency: | 90 MHz |
| Explosion-tested version: | no |
| Nominal discharge surge current (8/20): | 0.4 kA |
| Voltage protection level core/core: | 25 V |
| Max. continuous voltage DC: | 7 V |
| Degree of protection (IP): | IP40 |
| Voltage protection level core/signal ground: | 25 V |
| Voltage protection level signal ground/protective ground: | 18 V |
| Nominal voltage DC: | 6.0 - 6.0 V |
| Pro-active thermo-control: | no |

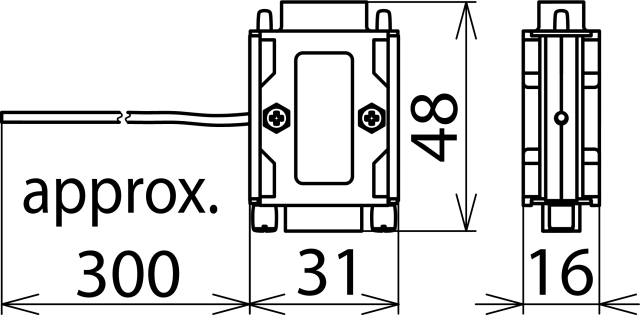

| Assembly width: | 31 mm |
| Signal disconnection: | no |
| Earthing via: | Separate conductor |
