Złączka SMD-Through-Board do pł.druk. 0,75 mm² raster 6,5 mm 1-bieg., biała 2070-461/998-406
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2070-461/998-406 |
| GTIN(EAN) | 4055143645164 |
| Price unit | piece |
| Catalog price | 2,32 zł (1,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

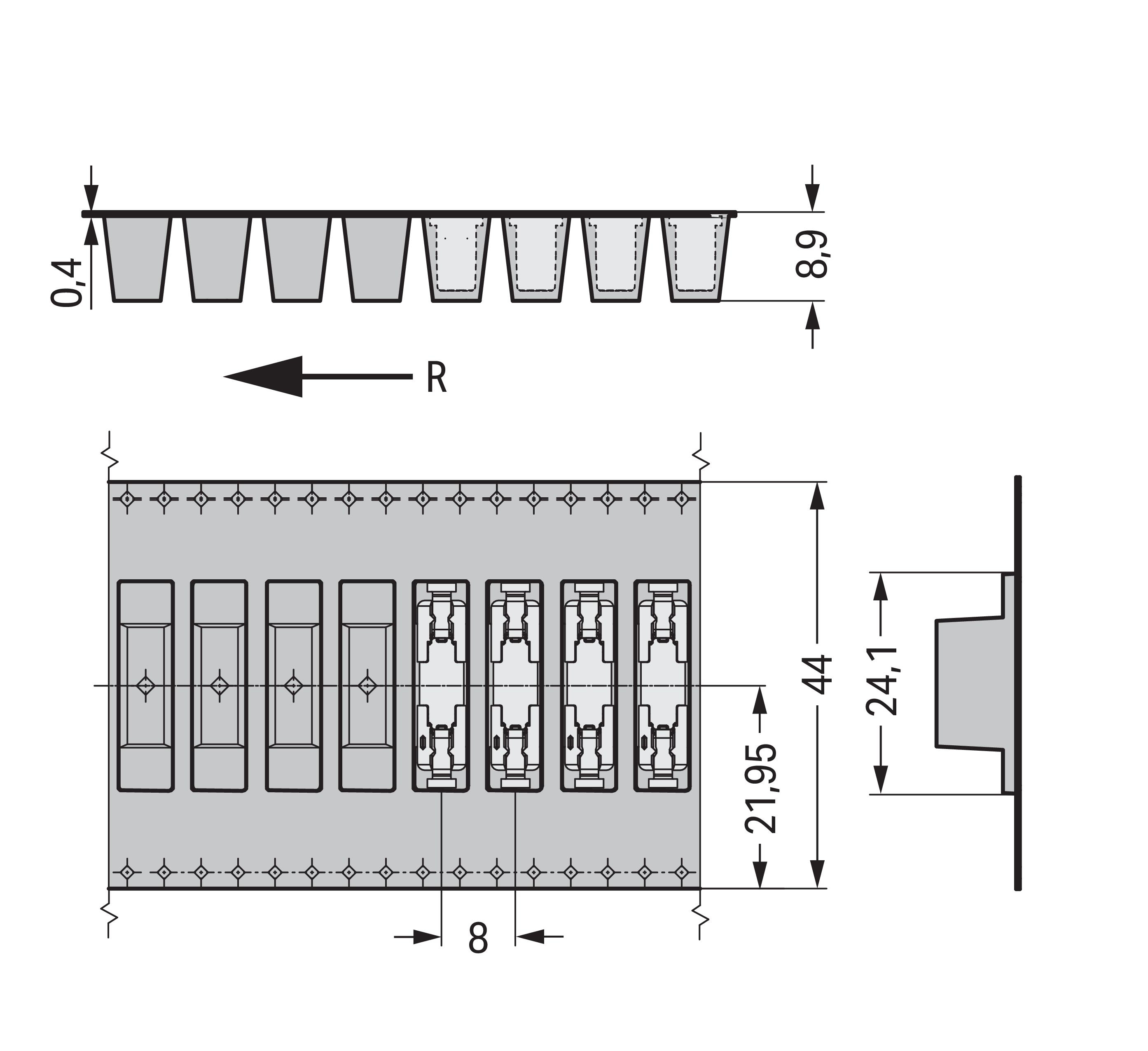

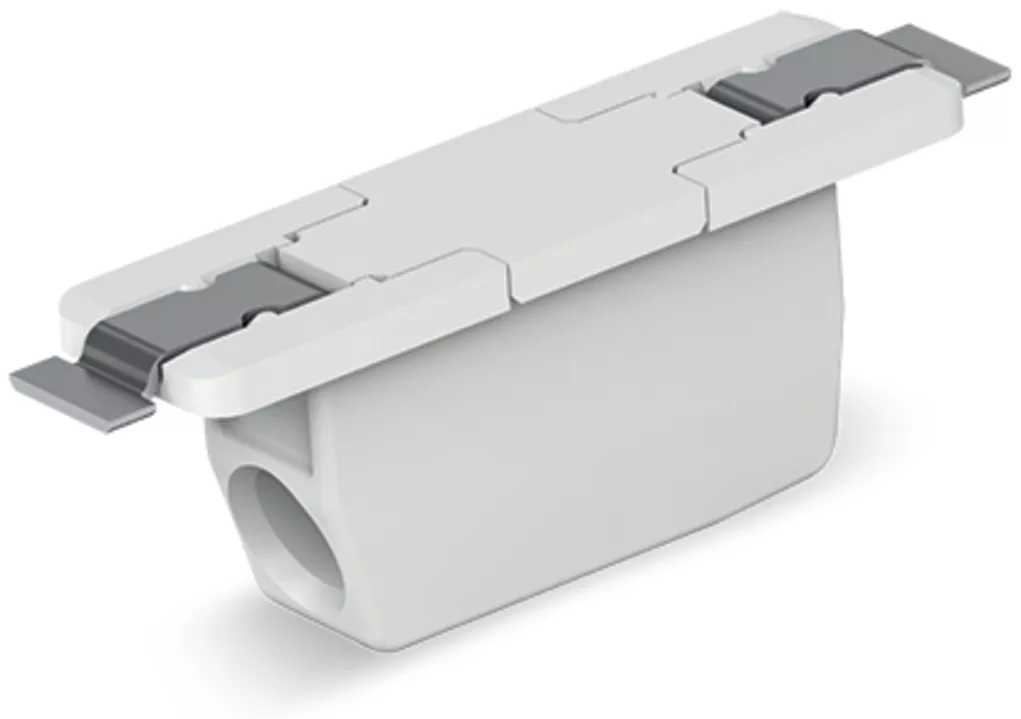

złączka SMD Through-Board do PCB; 0,75 mm²; raster 6,5 mm; 1-bieg.; Push-in CAGE CLAMP®; w rolce; 0,75 mm²; biały
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 105 °C |

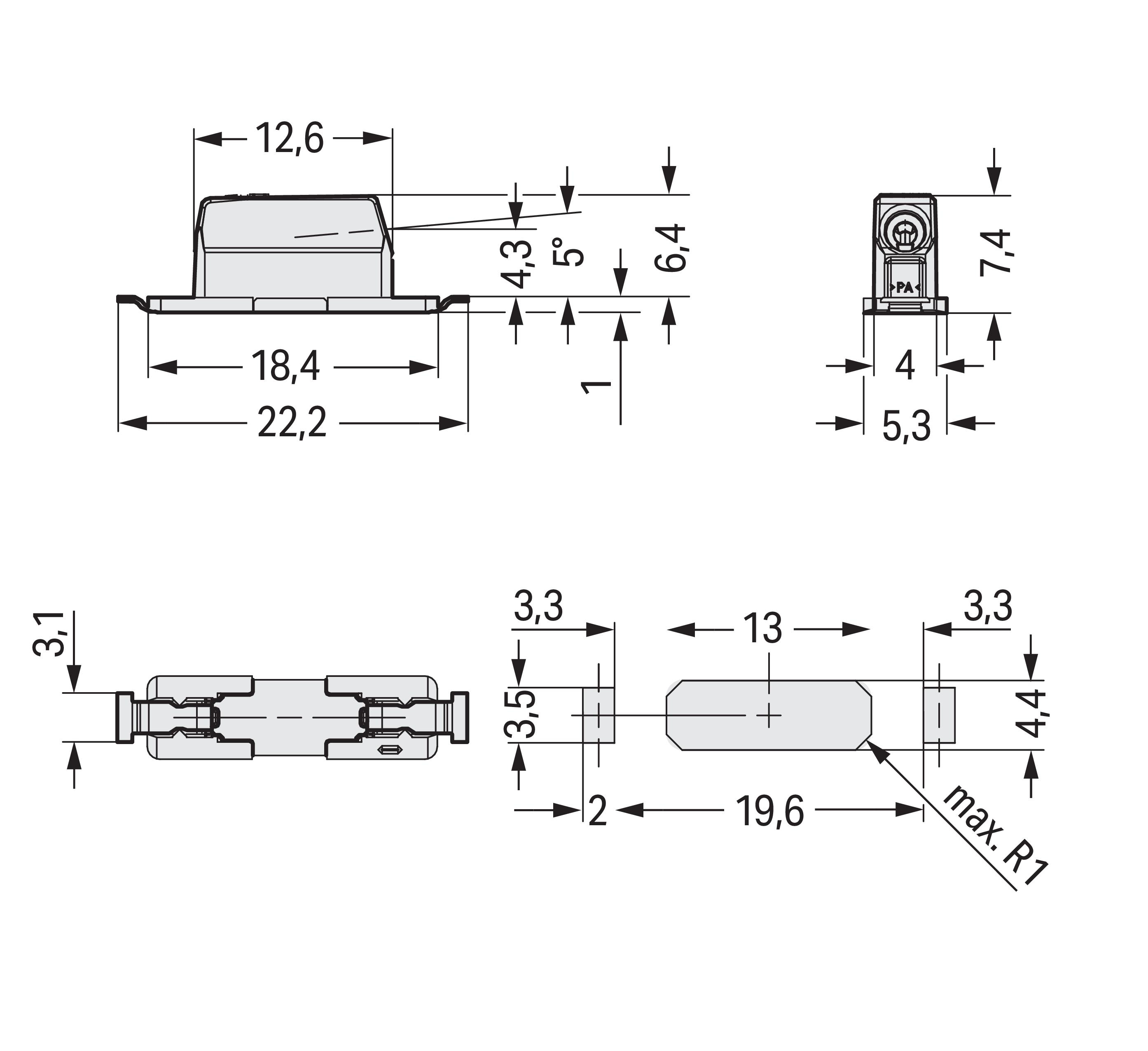

| Height: | 7.45 mm |
| Connectable conductor cross section solid-core: | 0.2 - 0.75 mm² |
| Mounting method: | Other |
| Rated current In: | 9 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 0.75 mm² |
| Number of poles: | 1 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | White |
| Width: | 5.3 mm |
| Rated voltage: | 320 V |
| Depth: | 22.2 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-04-04 15:32:25 |
| Files to download: | |
| External links: |
