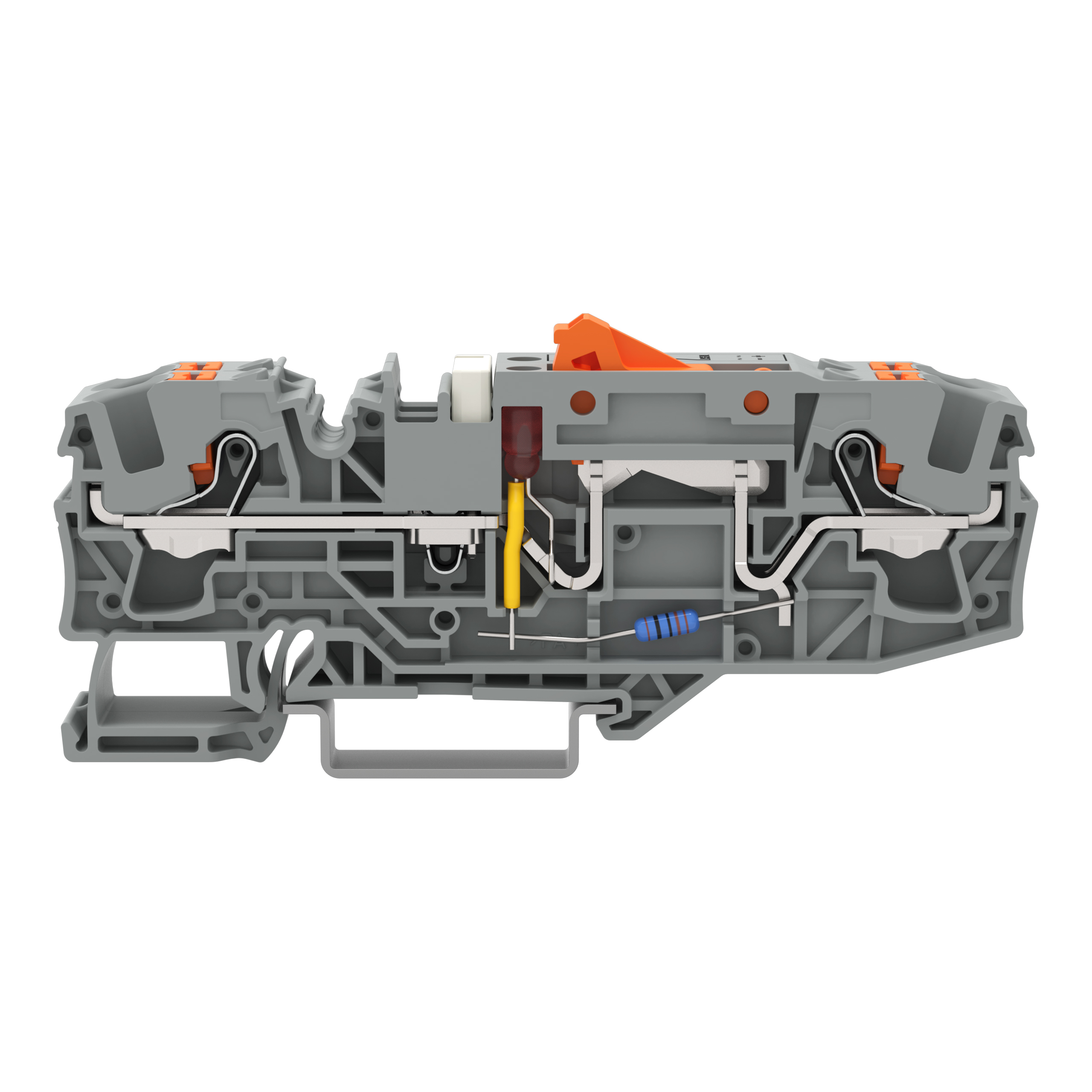

Złączka rozłączalna do kontr. doziemień z możliwością pomiaru, szary 2206-1671/1000-850
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2206-1671/1000-850 |
GTIN(EAN) | 4066966341096 |
Price unit | piece |
Catalog price | 223,37 zł (181,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złączka rozłączalna do kontroli doziemień; z możliwością pomiaru; z uchwytem łącznika nożowego, pomar.; z przyciskami; 120 V; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 241,4 g |
ETIM class: | (Knife) disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Height: | 96.3 mm |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Type of slitting: | None |
Rated current In: | 30 A |
Inflammability class of insulation material according to with UL94: | V0 |
Type of cross disconnection: | None |
With integrated test socket: | no |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Rated voltage: | 500 V |
Width: | 15 mm |
Depth: | 36.8 mm |
