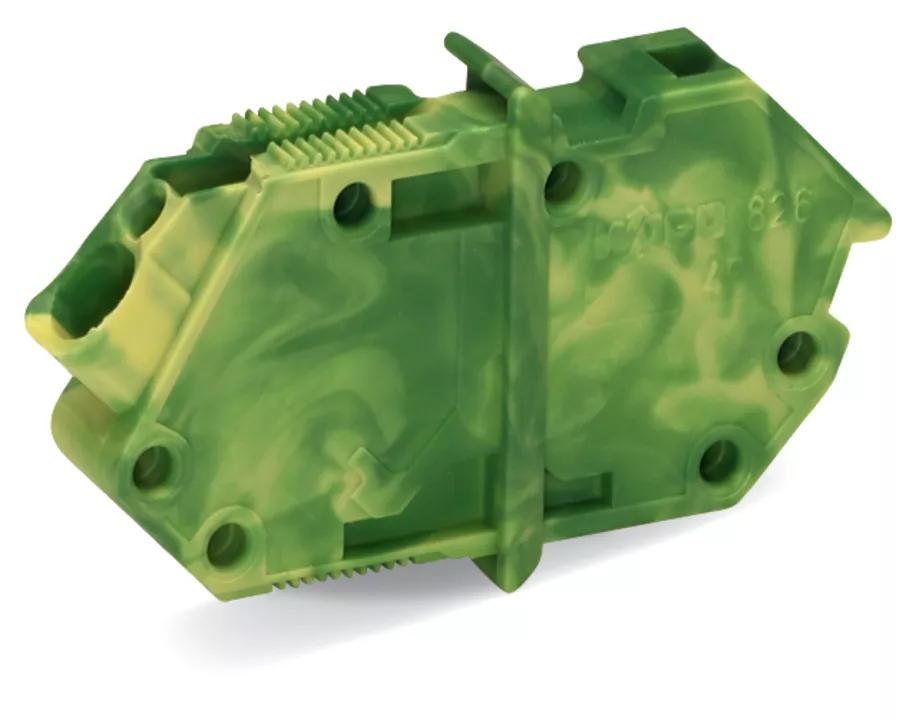

Złączka przepustowa żółto-zielona 826-159/000-016
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 826-159/000-016 |
GTIN(EAN) | 4044918546256 |
Price unit | piece |
Catalog price | 18,30 zł (14,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka modułowa przepustowa PE końcowa; połączenie przewód/przewód; grubość blachy 1 … 4 mm; 4 mm²; raster 7 mm; 1-bieg.; CAGE CLAMP®; 4,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 4,79 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 2 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 105 °C |
Height: | 23.55 mm |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
Mounting method: | Other |
Rated current In: | 32 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Green/yellow |
Width: | 7 mm |
Rated voltage: | 320 V |
Depth: | 42.5 mm |
