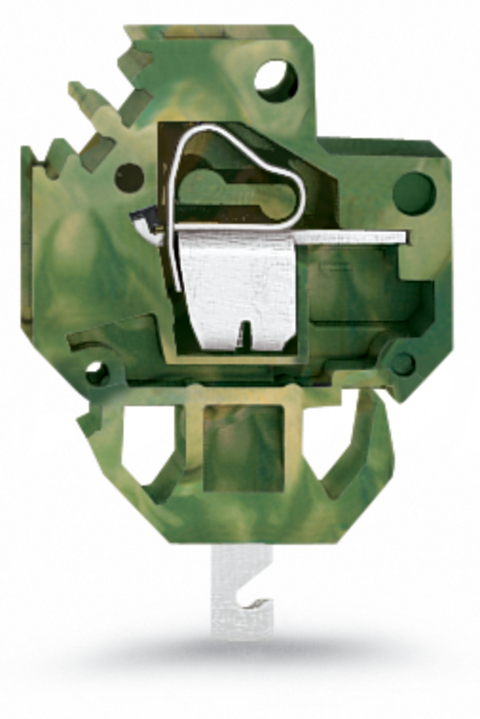

Złączka przepustowa PE połączenie przewod./lutow. i konektor., żółto-zielona 226-107
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 226-107 |
GTIN(EAN) | 4044918794398 |
Price unit | piece |
Catalog price | 38,51 zł (31,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

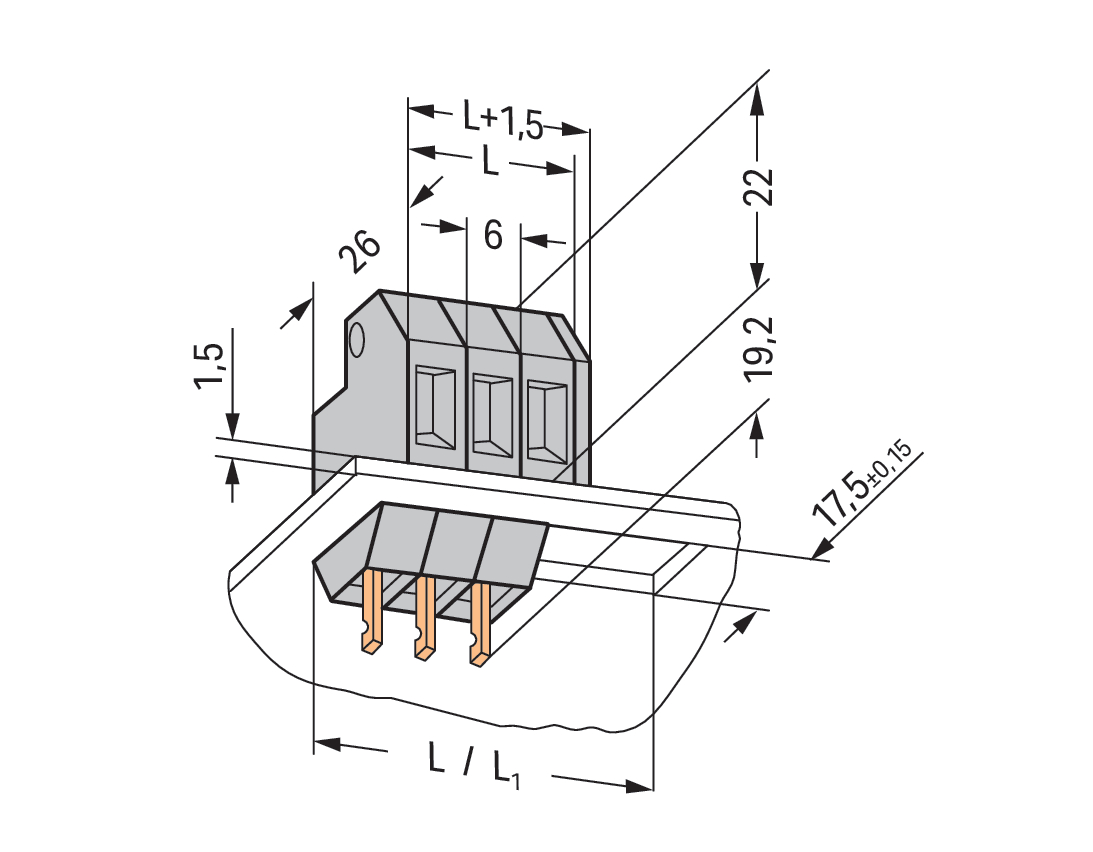

złącze przepustowe PE; przyłącze przewod./lutow. i konektor.; grubość blachy 1,5 mm; 4 mm²; raster 6 mm; 1-bieg.; CAGE CLAMP®; 4,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 4,11 g |
ETIM class: | Panel feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 105 °C |
Thickness of mounting plate: | 1.5 - 2.5 mm |
Rated current In: | 20 A |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of poles: | 1 |
Colour: | Green/yellow |
Rated voltage: | 320 V |
Number of clamp positions per pole: | 1 |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
With integrated feed-through flange: | no |
Mounting method: | Other |
Width/grid dimension: | 6 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Explosion-tested version 'Ex e': | no |
Connection position: | Sideways |
