Złączka do zabudowy elementów 2-piętrowe, szara 280-502/281-614
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 280-502/281-614 |
GTIN(EAN) | 4017332222389 |
Price unit | piece |
Catalog price | 68,06 zł (55,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

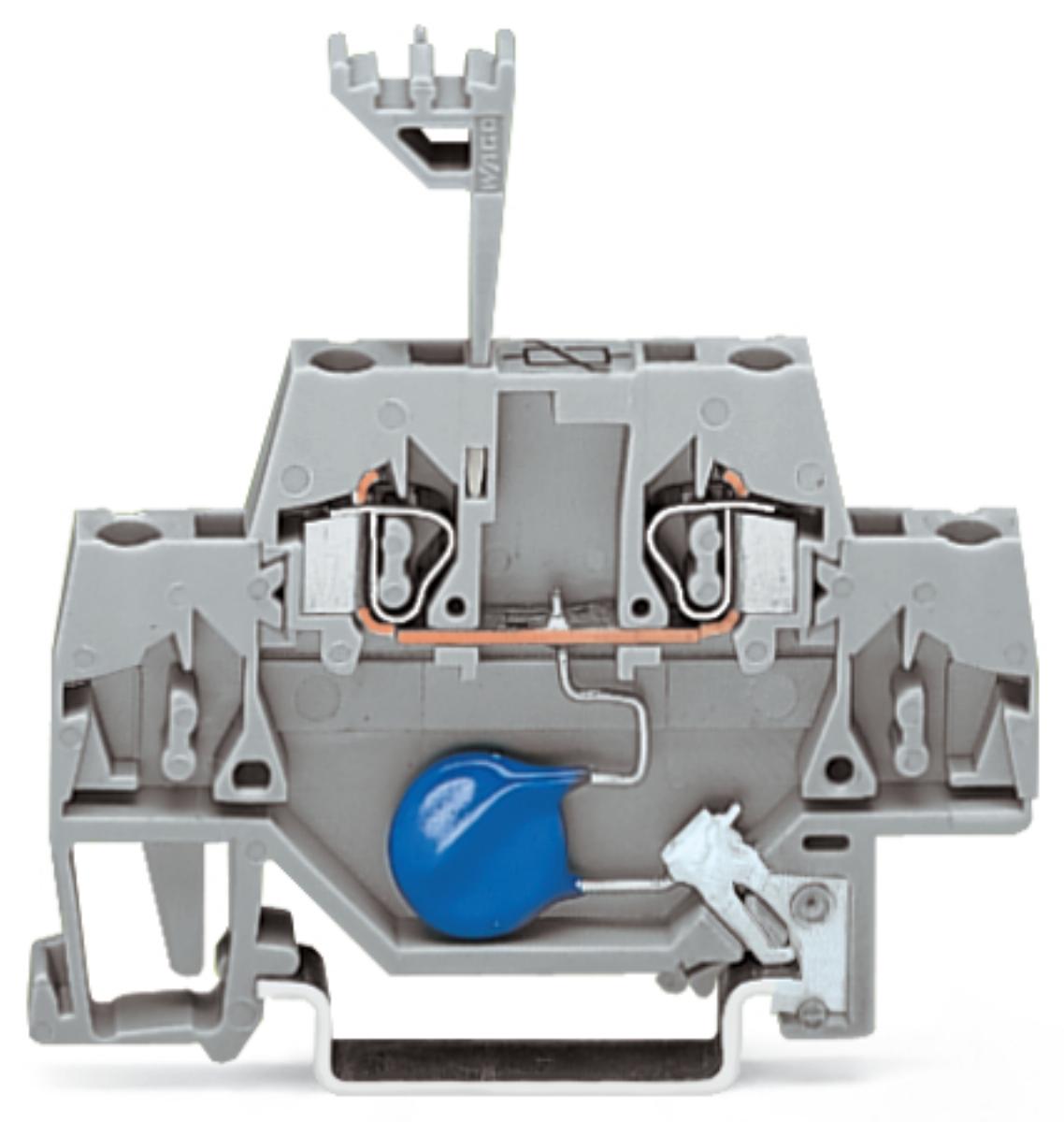

złączka do zabudowy elementów; 2-piętr.; z warystorem; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 8,6 g |
ETIM class: | Component terminal block |
Material insulation body: | Thermoplastic |
Height: | 64 mm |
Operating temperature: | 105 - 105 °C |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 20 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |

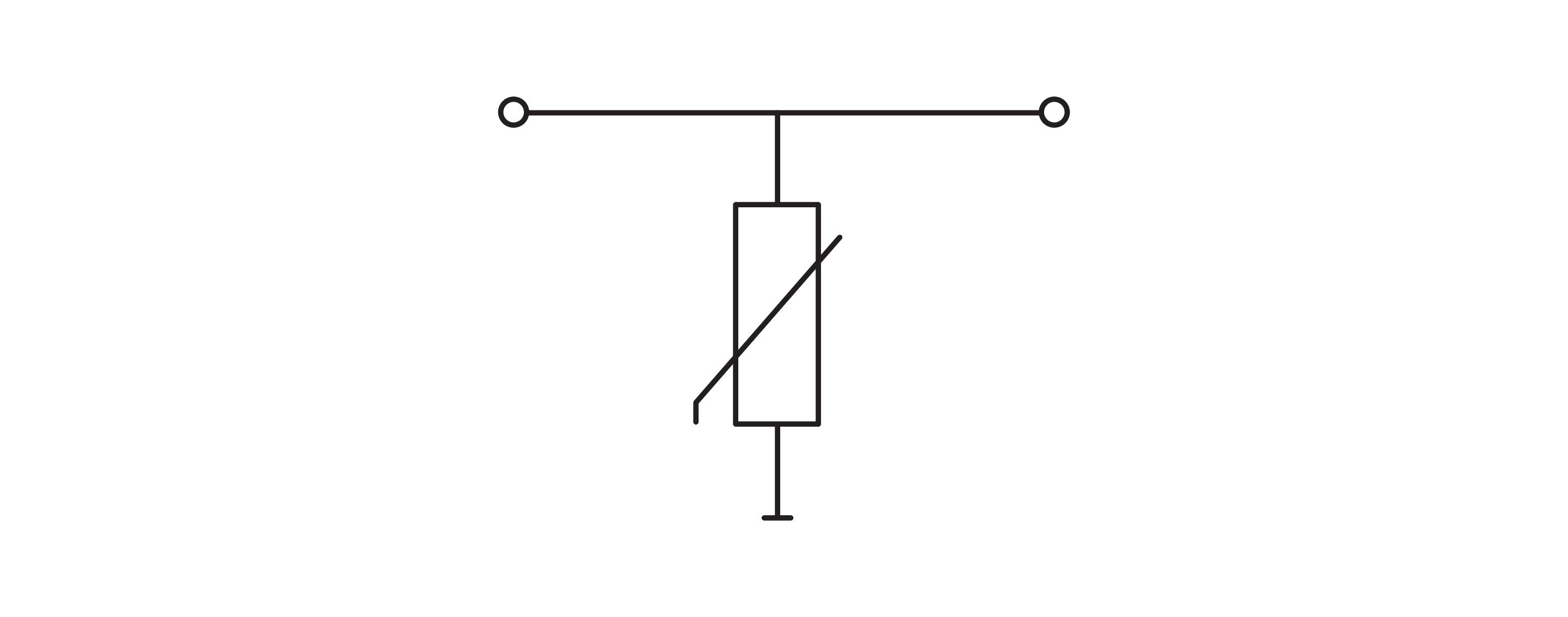

Type of component: | Varistor (voltage-sensitive resistor) |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Number of levels: | 1 |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Rated voltage: | 110 V |
Width: | 5 mm |
Depth: | 58.5 mm |
