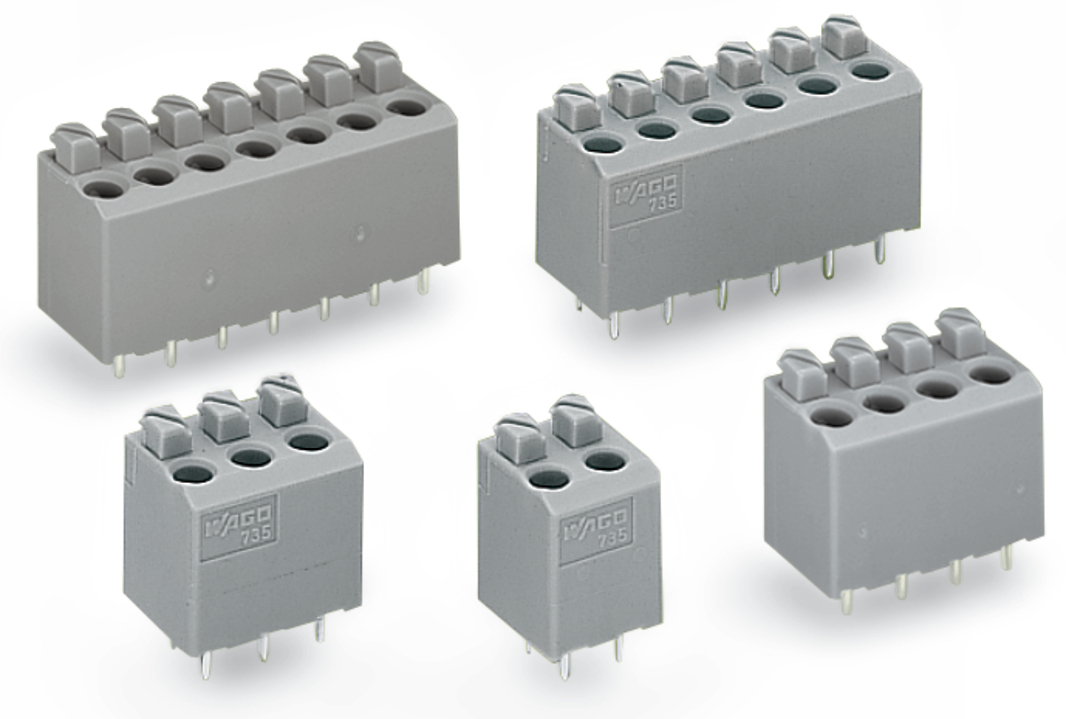

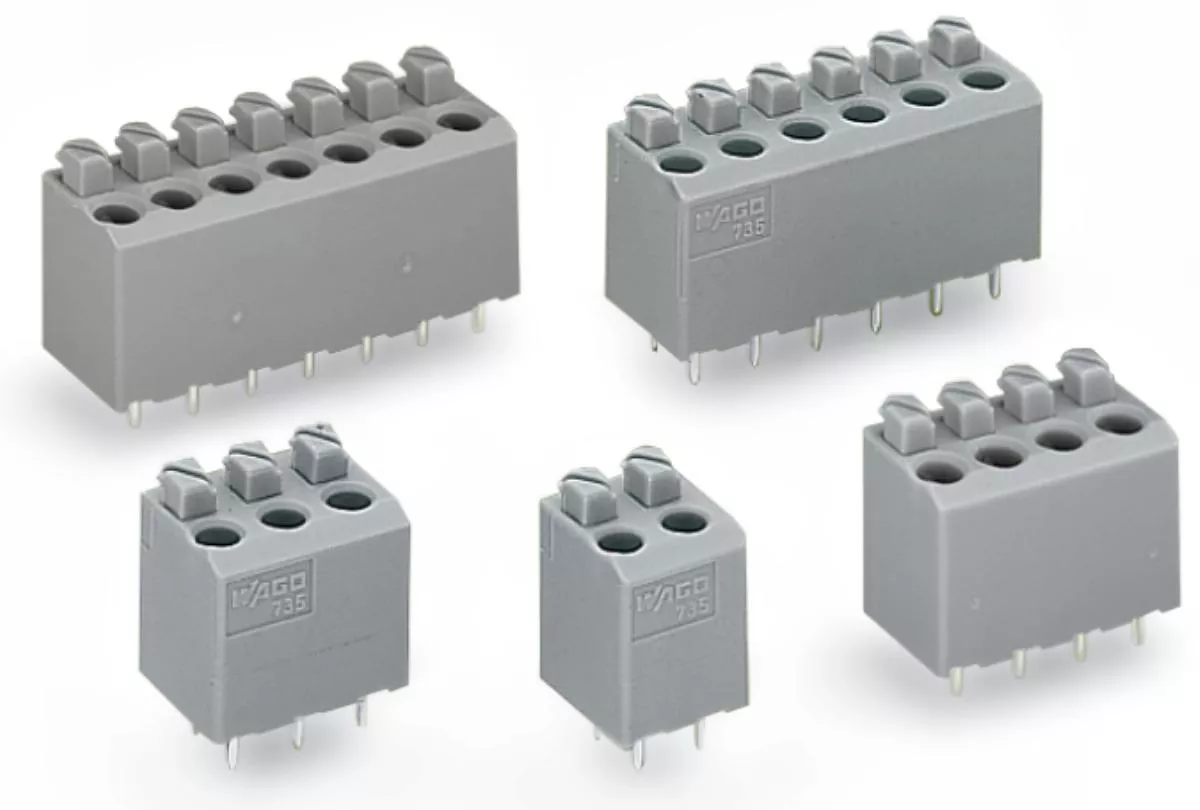

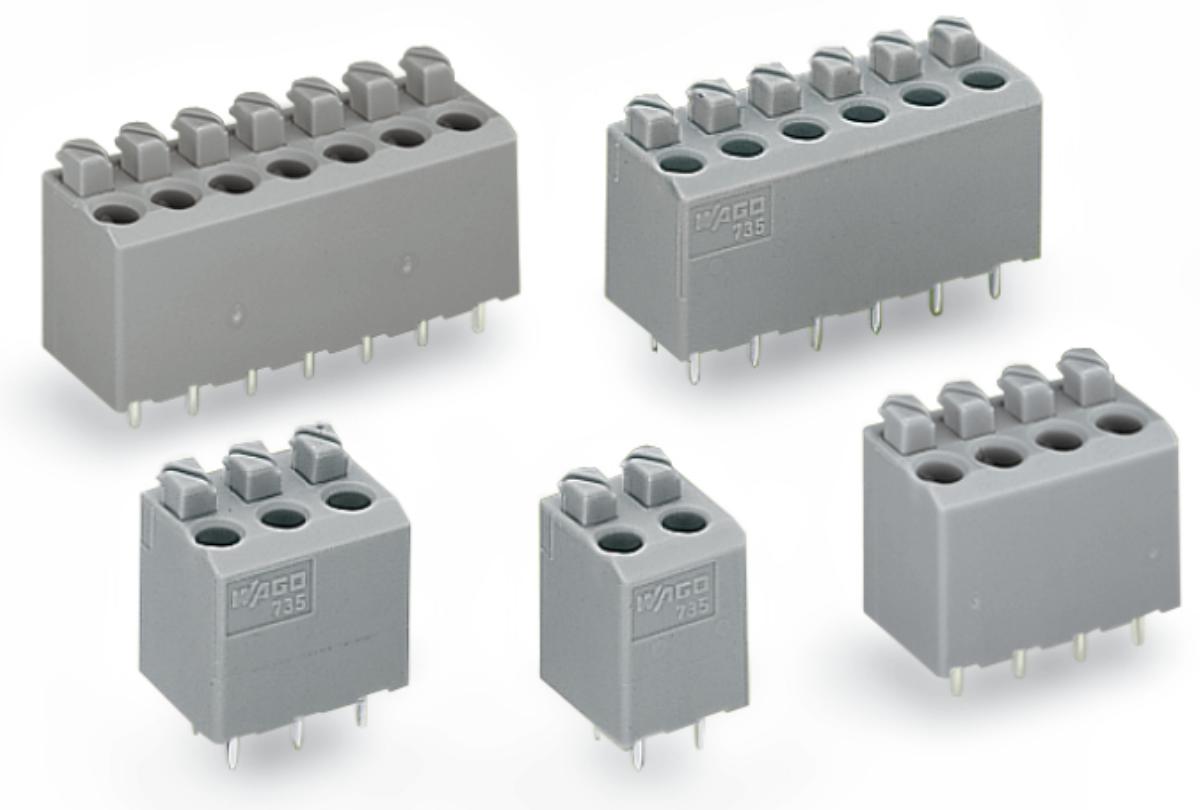

Złączka do płytek drukowanych przycisk 1,5 mm² RM 5 mm 6-bieg, szara 735-306
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 735-306 |
GTIN(EAN) | 4044918793124 |
Price unit | piece |
Catalog price | 11,46 zł (9,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złącze do PCB; przycisk; 1,5 mm²; raster 5 mm; 6-bieg.; PUSH WIRE®; 1,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 5,03 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Rated current In: | 10 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Push-in clamp connection |
Length pin: | 3.5 mm |
Modular spacing connections: | 5 mm |
Type of banding: | None |
Over voltage category: | III |

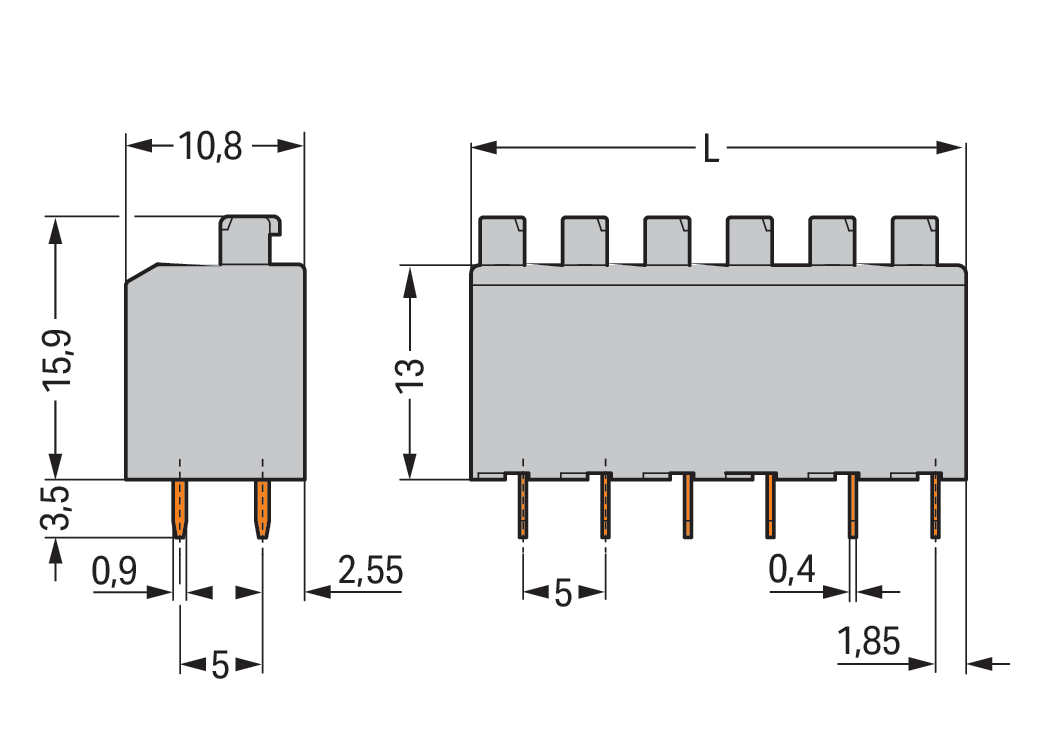

Height: | 15.9 mm |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 1 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 90° (upwards vertical) |
Number of electrical connections: | 6 |
