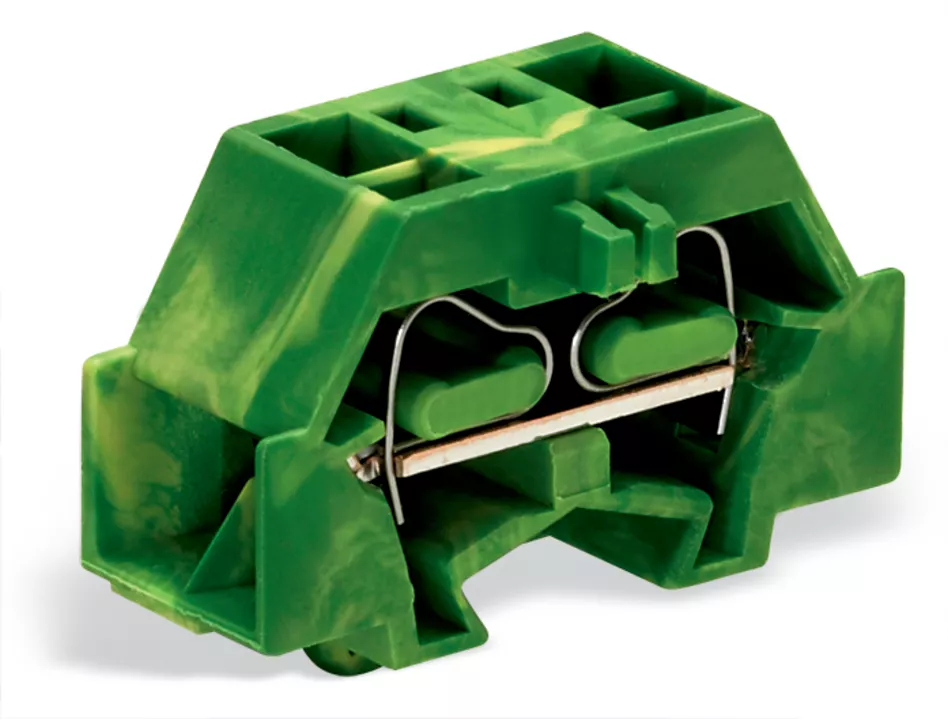

Złączka 4-przewodowa bez przycisków ze stopką zatrzaskową, żółto-zielona 261-347
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 261-347 |
GTIN(EAN) | 4044918611015 |
Price unit | piece |
Catalog price | 5,08 zł (4,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka 4-przewodowa; bez przycisków; ze stopką zatrzaskową; 1-bieg.; do płyty o grubości 0,6 ... 1,2 mm; otwór montażowy Ø 3,5 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 3,94 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 4 |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 85 °C |
Height: | 28.1 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Green/yellow |
Width: | 10 mm |
Rated voltage: | 500 V |
Depth: | 18.1 mm |
