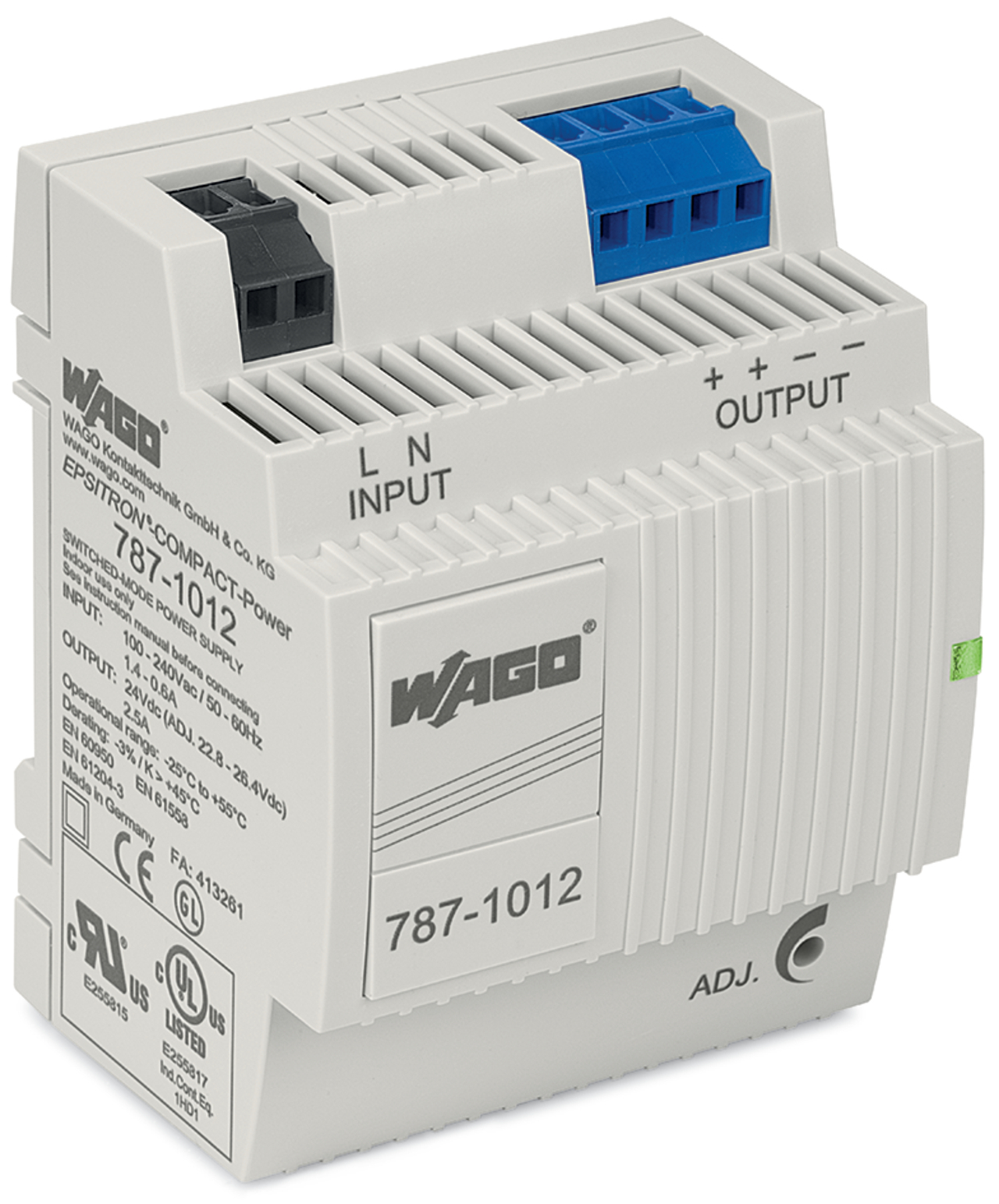

Zasilacz impulsowany po stronie pierwotnej Compact 1-ph 787-1012
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-1012 |
| GTIN(EAN) | 4050821297598 |
| Price unit | piece |
| Catalog price | 336,65 zł (273,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
zasilacz impulsowany po stronie pierwotnej; Compact; 1-faz.; napięcie wyjściowe 24 V DC; prąd wyjściowy 2,5 A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 10,93 g |
| ETIM class: | DC-power supply |
| Type of electric connection: | Spring clamp connection |
| 1st secondary output voltage: | 22.8 - 26.4 V |
| Short-circuit-proof: | yes |

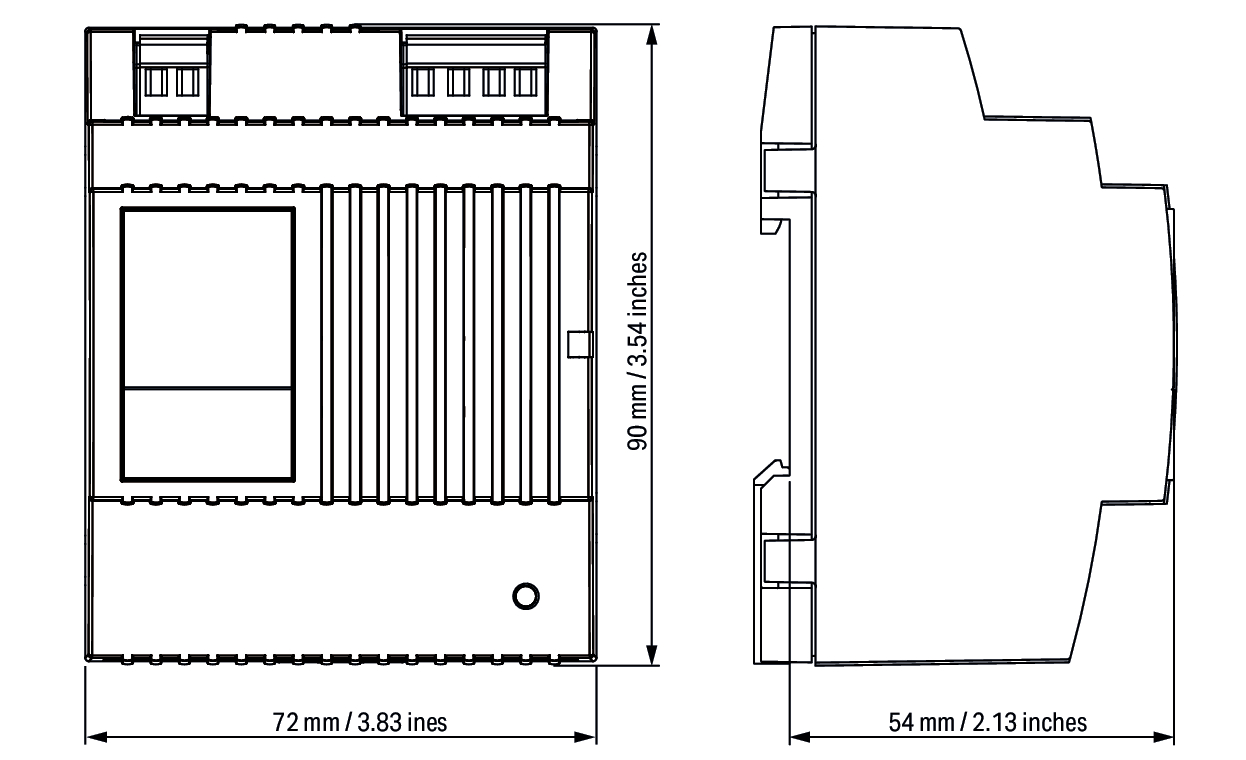

| Width: | 72 mm |
| Depth: | 89 mm |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Suitable for safety functions: | no |
| Output voltage stabilized: | yes |
| Height: | 59 mm |
| Modular version: | no |
| Nominal value output current 1: | 2.5 A |
| Max. output current 1: | 2.5 A |
| Rated supply voltage AC 50 Hz: | 85 - 264 V |
| Rated supply voltage DC: | 120 - 300 V |
| Rated supply voltage AC 60 Hz: | 85 - 264 V |
| Degree of protection (IP): | IP20 |
| Secondary voltage adjustable: | yes |
| Stabilized: | yes |
| Voltage type (supply voltage): | AC/DC |
| Nominal value output voltage 1: | 24 V |
| Direct mounting possible: | no |
| Width in number of modular spacings: | 4 |
