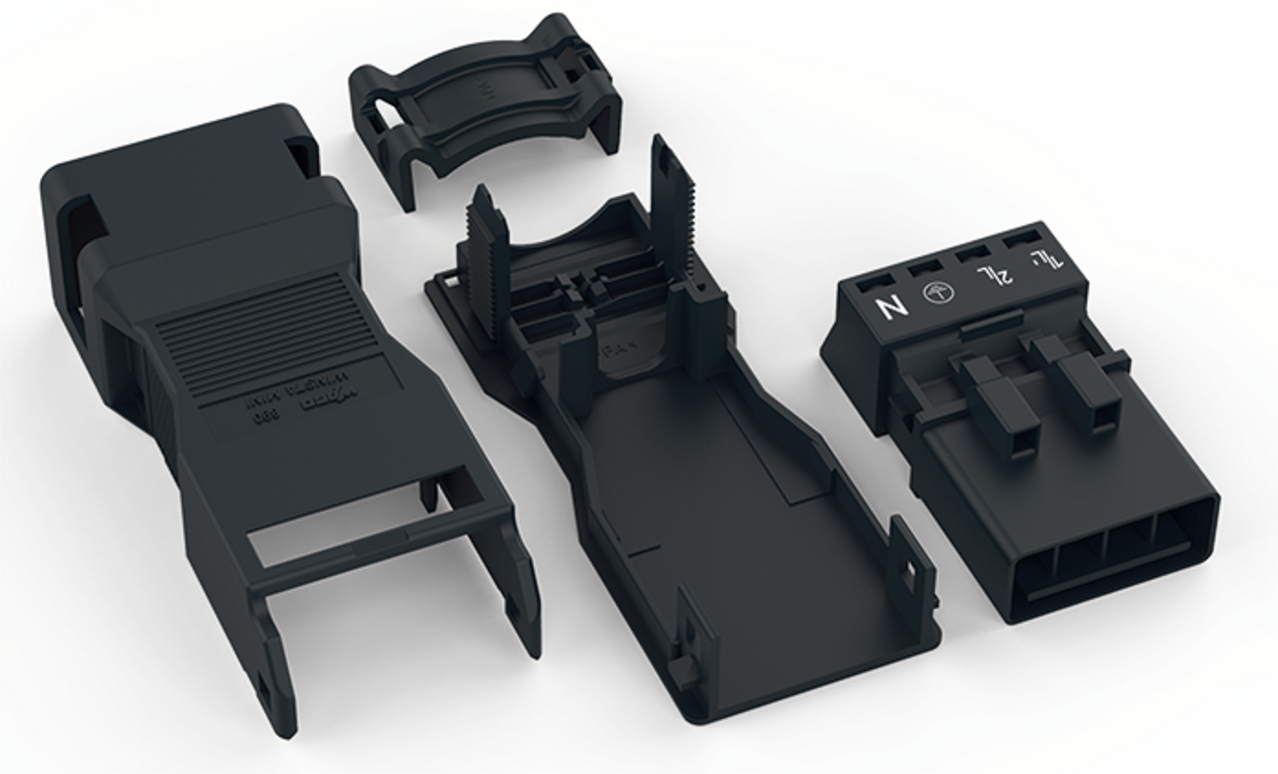

Wtyk z obudową odciążającą przewody 4-bieg., czarny 890-114
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-114 |
GTIN(EAN) | 4045454232917 |
Price unit | piece |
Catalog price | 26,68 zł (21,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
wtyk; z obudową odciążającą przewody; 4-bieg.; 1,50 mm²; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 10,36 g |
ETIM class: | Plug-in connector for plug-in building installation |
Fire load: | 0.07778 kWh |
Halogen free: | yes |
Number of connections per pole: | 1 |
Cable diameter: | 6.5 - 10.5 mm |
Rated surge voltage: | 6 kV |
Model: | Plug |
Number of poles: | 4 |
Type of locking: | Separate |
Rated current: | 16 A |
Rated voltage: | 400 V |

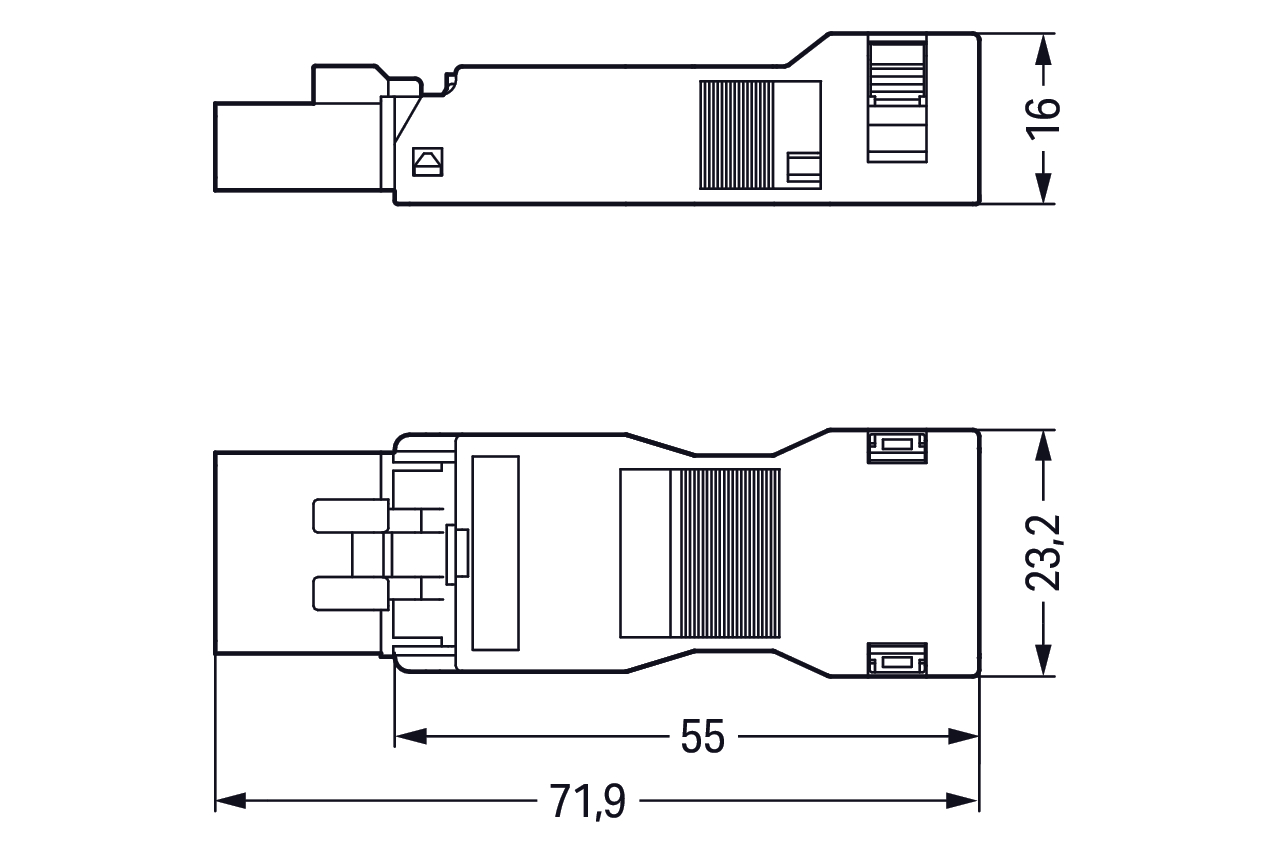

Length: | 71.9 mm |
Width: | 23.2 mm |
With strain relief: | yes |
Height: | 16 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.25 - 1.5 mm² |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Mechanical coding: | yes |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP40 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
