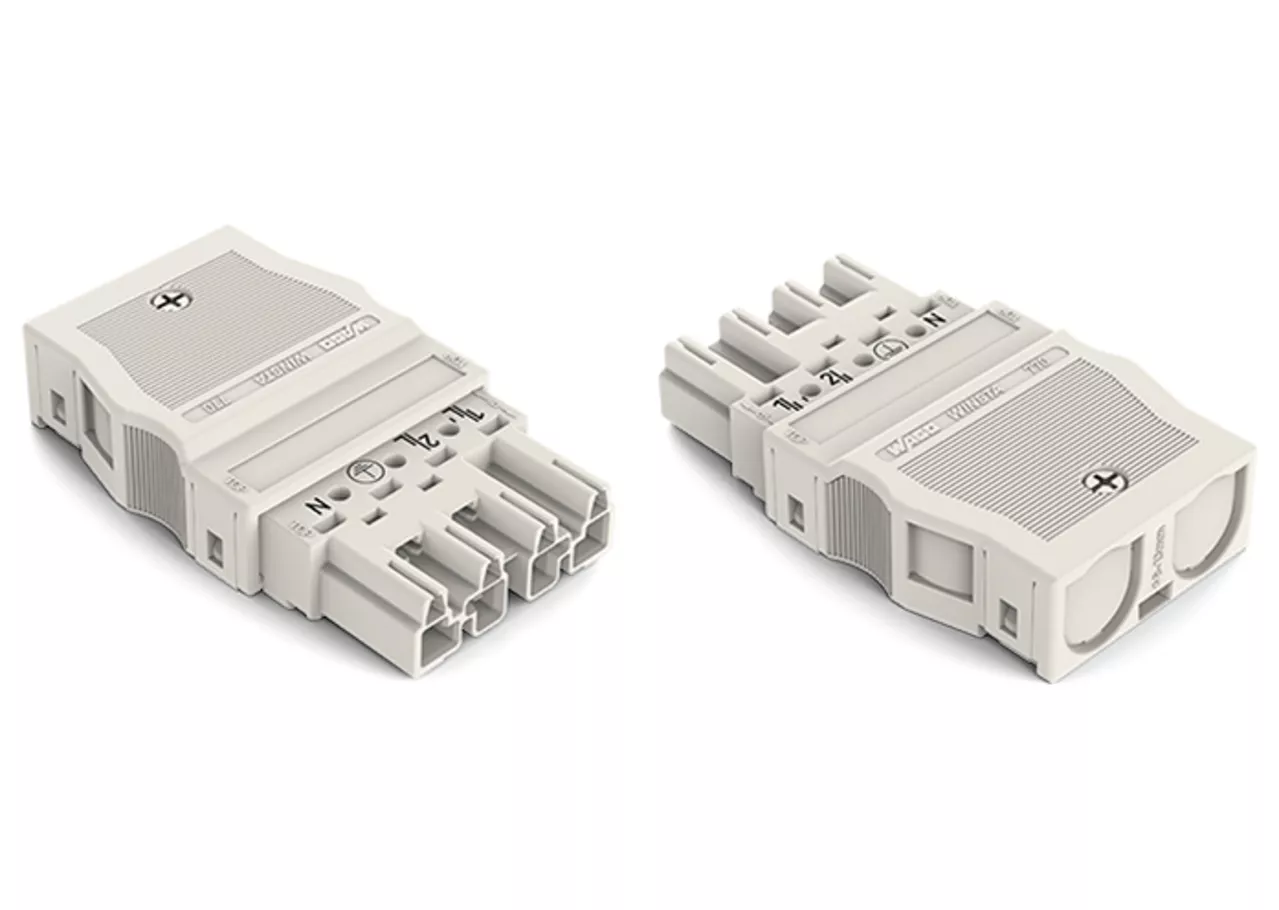

Wtyk z obudową odciążającą przewody 4-bieg., biały 770-134
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 770-134 |
| GTIN(EAN) | 4044918254489 |
| Price unit | piece |
| Catalog price | 27,64 zł (22,47 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
wtyk; z obudową odciążającą przewody; 4-bieg.; kodowanie A; 4,00 mm²; biały
Additional features:
| Information | Value |
|---|---|
| Net weight: | 24,86 g |
| ETIM class: | Plug-in connector for plug-in building installation |
| Fire load: | 0.16028 kWh |
| Halogen free: | no |
| Number of connections per pole: | 2 |
| Cable diameter: | 9 - 13 mm |
| Rated surge voltage: | 6 kV |
| Model: | Plug |
| Number of poles: | 4 |
| Type of locking: | Separate |
| Rated current: | 25 A |
| Rated voltage: | 400 V |

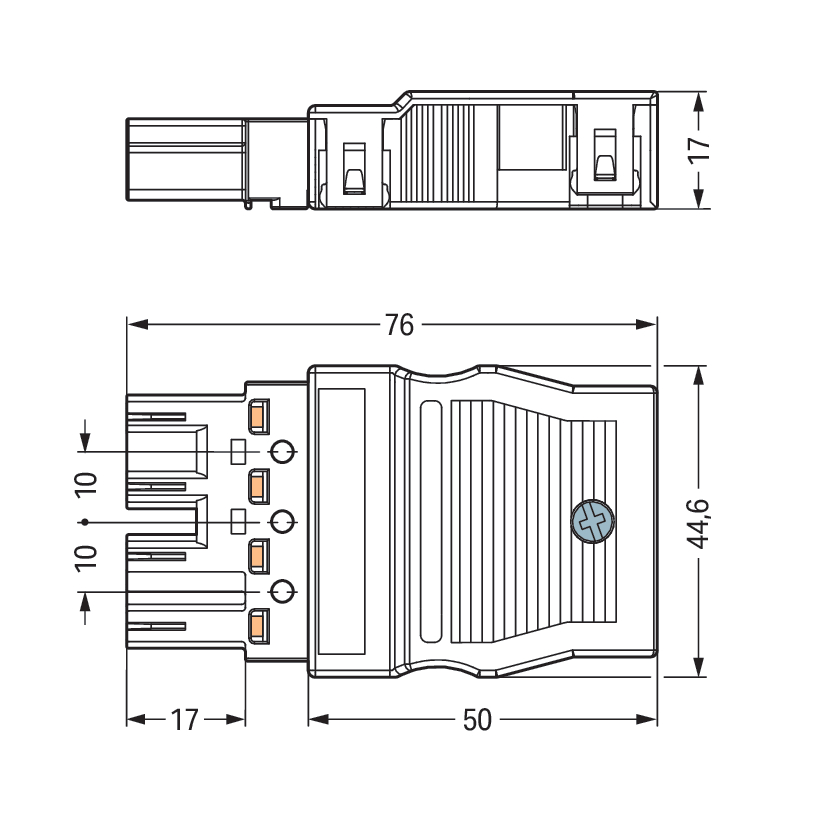

| Length: | 76 mm |
| Width: | 44.6 mm |
| With strain relief: | yes |
| Height: | 17 mm |
| Connection type: | Spring clamp connection |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Housing material: | Polyamide (PA) |
| Connection cross section (solid-core): | 0.5 - 4 mm² |
| Surface treatment contacts: | Tinned |
| Max. continuous temperature resistance contact part: | 85 °C |
| Mechanical coding: | yes |
| Continuity resistance: | 1 mΩ |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | White |
| Pollution degree: | 3 |
| Connection cross section (fine-strand): | 0.5 - 4 mm² |
