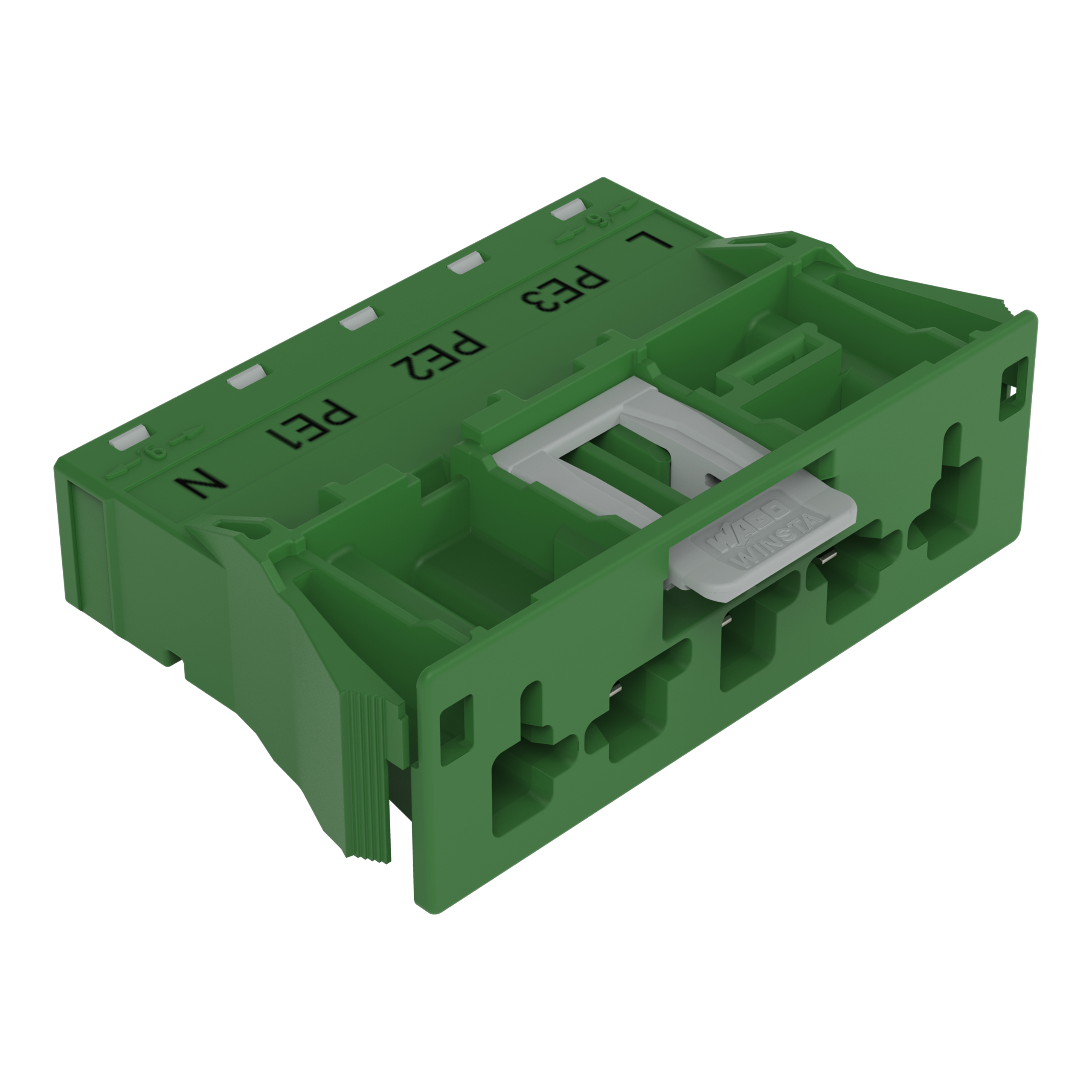

Wtyk Snap-In zielony 770-2335
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-2335 |
GTIN(EAN) | 4055143375900 |
Price unit | piece |
Catalog price | 27,99 zł (22,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk Snap-In; 5-bieg.; kodowanie Q; 4,00 mm²; zielony
Additional features:
Information | Value |
---|---|
Net weight: | 18,68 g |
ETIM class: | Device connection for plug-in building installation |
Fire load: | 0.10833 kWh |
Halogen free: | yes |
Number of connections per pole: | 2 |
Housing colour: | Green |
Rated surge voltage: | 6 kV |
Model: | Plug |
Number of poles: | 5 |
Type of locking: | Integrated in plug-in connector |
Rated current: | 32 A |
Length: | 41.1 mm |
Rated voltage: | 400 V |
Width: | 55.5 mm |
Angle of inclination: | 0 - 0 ° |
Height: | 18.5 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Connection size thread: | No thread connection |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.5 - 4 mm² |
Mechanical coding: | yes |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Green |
Pollution degree: | 3 |
Colour of the separate adapter piece: | Without adapter piece |
Insert direction: | Straight |
Built-in version: | Snap-in/screw-in device |
Connection cross section (fine-strand): | 0.5 - 4 mm² |
Wall thickness housing: | 2 mm |
