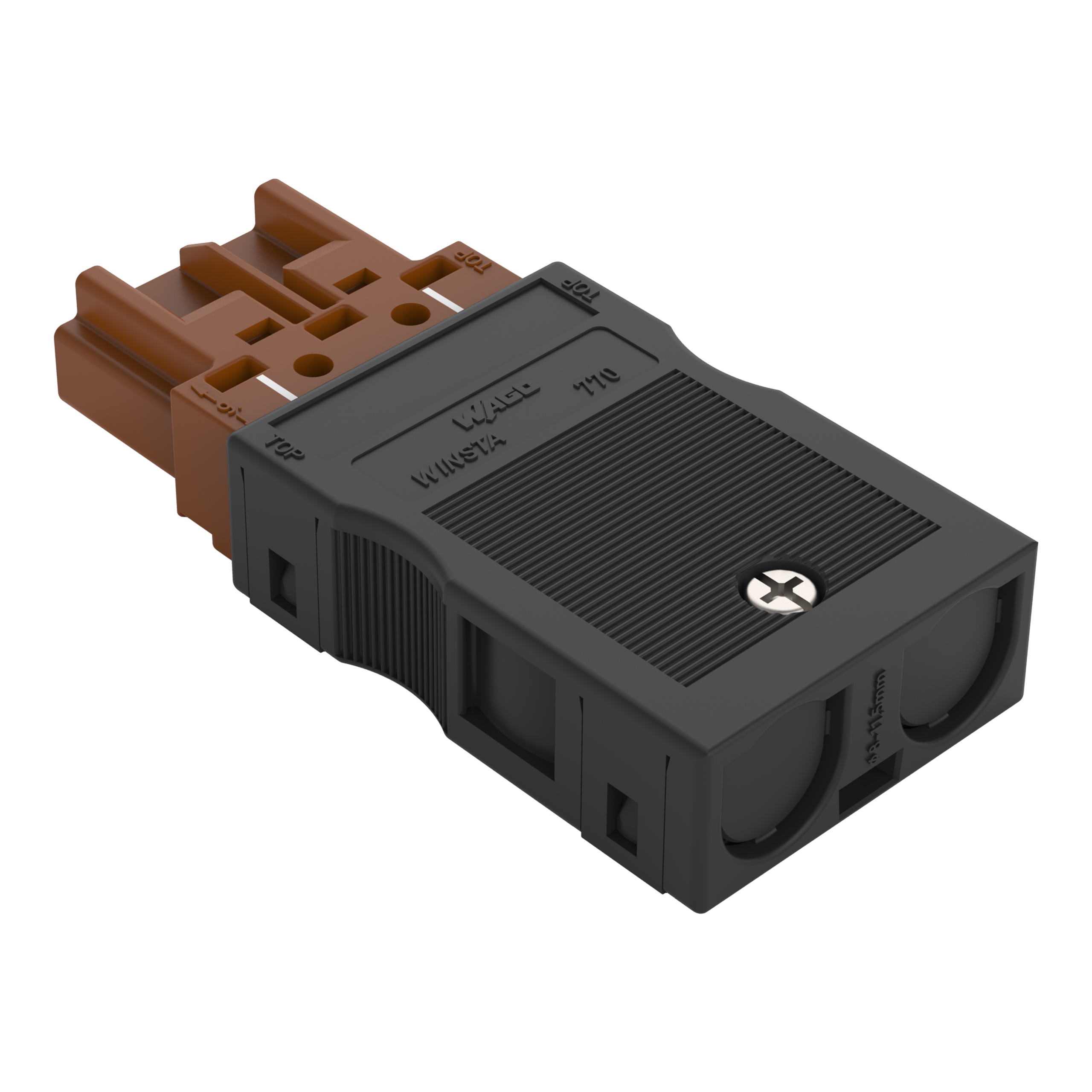

Wtyk mostkujący z obudową odciążającą przewody 3-bieg., brązowy 770-1373/147-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 770-1373/147-000 |
| GTIN(EAN) | 4045454148324 |
| Price unit | piece |
| Catalog price | 33,39 zł (27,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

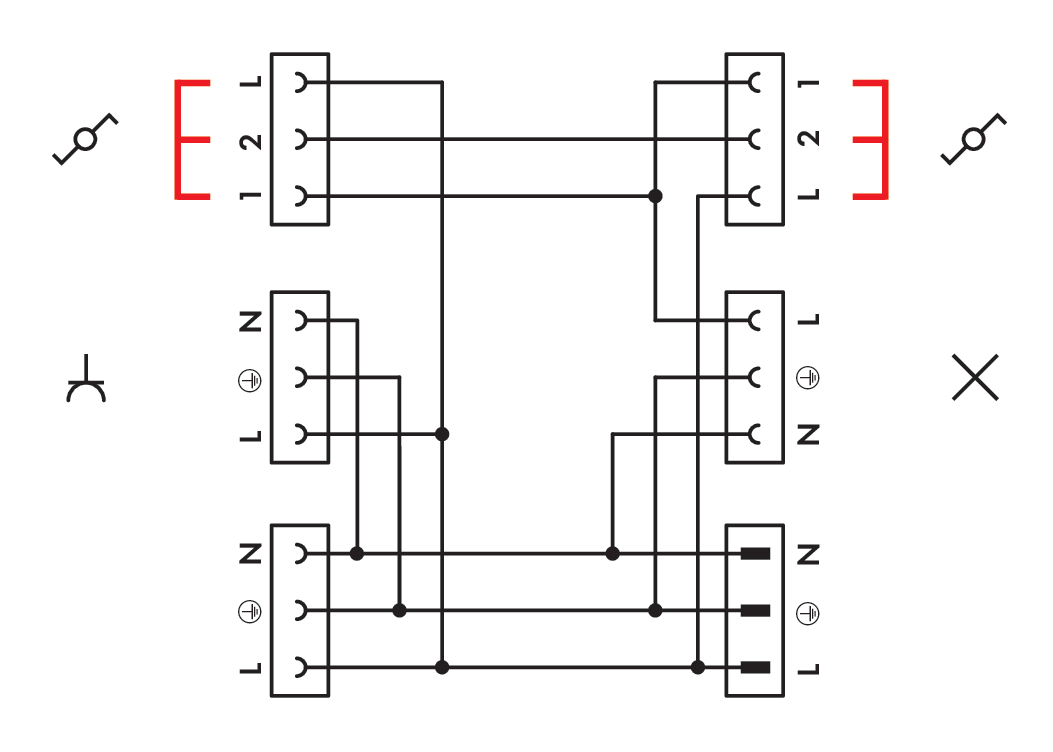

wtyk mostkujący; z obudową odciążającą przewody; 3-bieg.; kodowanie S; mostek 1-L; 4,00 mm²; brązowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 23,19 g |
| ETIM class: | Plug-in connector for plug-in building installation |
| Fire load: | 1.04083 kWh |
| Halogen free: | yes |
| Number of connections per pole: | 2 |
| Rated surge voltage: | 4 kV |
| Model: | Plug |
| Number of poles: | 3 |
| Type of locking: | Separate |
| Rated current: | 20 A |
| Rated voltage: | 250 V |

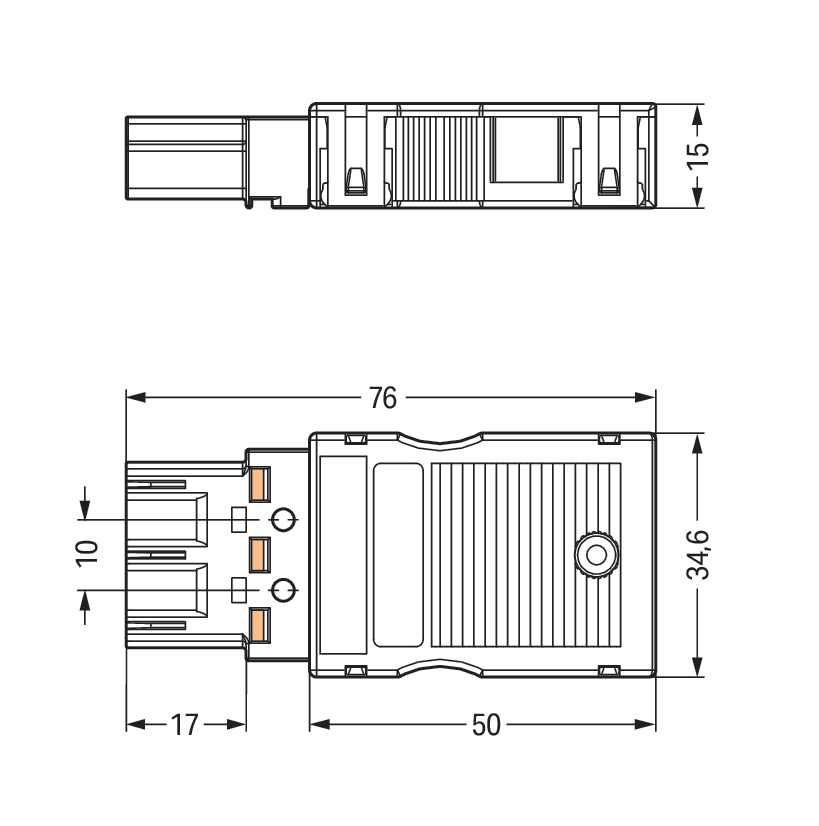

| Length: | 75.9 mm |
| Width: | 34.6 mm |
| With strain relief: | yes |
| Height: | 15 mm |
| Connection type: | Spring clamp connection |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | Other |
| Housing material: | Polyamide (PA) |
| Surface treatment contacts: | Other |
| Max. continuous temperature resistance contact part: | 85 °C |
| Mechanical coding: | yes |
| Continuity resistance: | 3 mΩ |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Brown |
| Pollution degree: | 3 |
