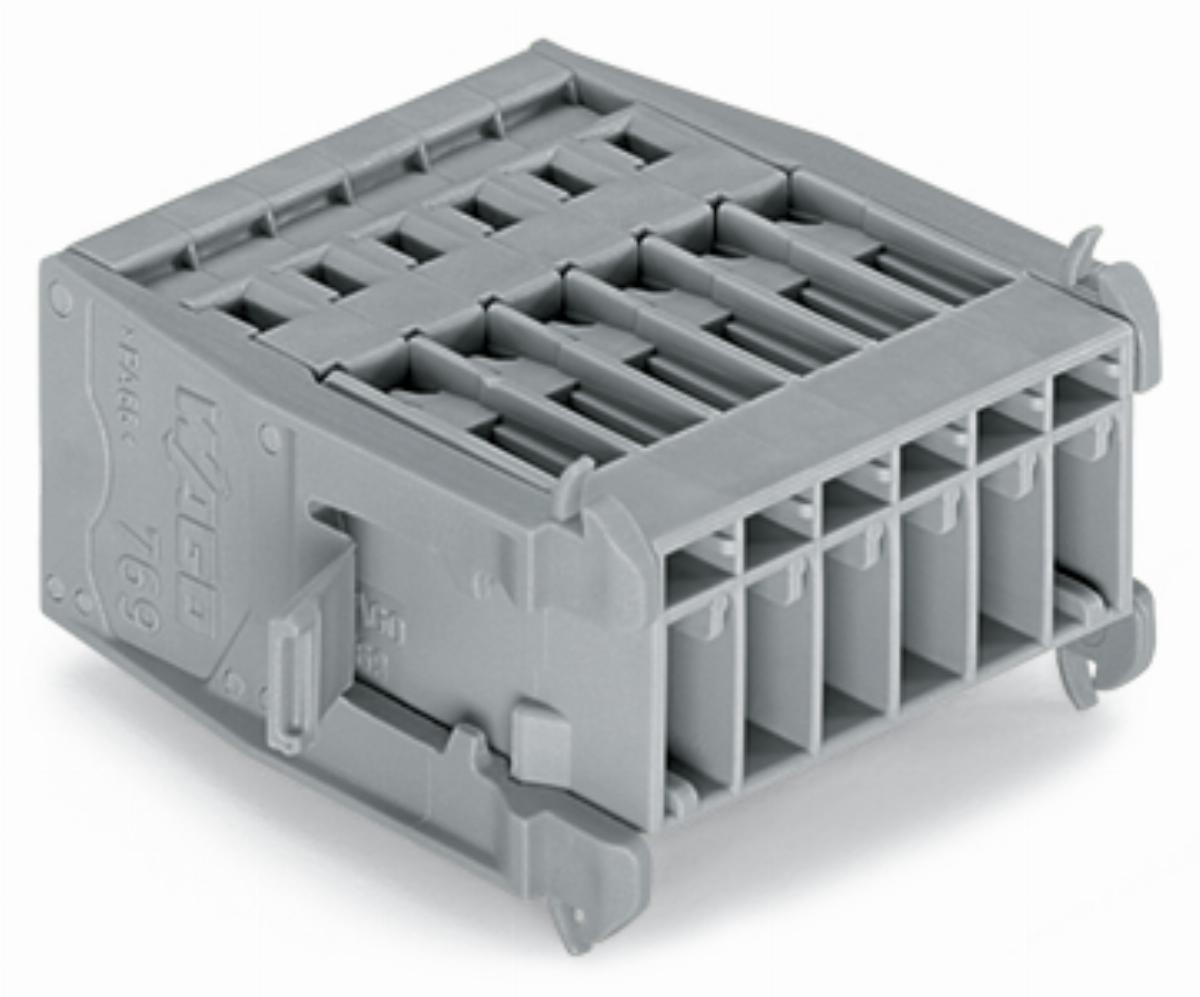

Wtyk 1-przewodowy CAGE CLAMP®, szara 769-614/005-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 769-614/005-000 |
GTIN(EAN) | 4044918854542 |
Price unit | piece |
Catalog price | 62,41 zł (50,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk 1-przewodowy; CAGE CLAMP®; 4 mm²; raster 5 mm; 14-bieg.; uchwyt Snap-In; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 42,54 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 40.8 mm |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
Mounting method: | Other |
Rated current In: | 32 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of poles: | 14 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 91.3 mm |
Rated voltage: | 500 V |
Depth: | 24.4 mm |
