Przekaźnik bezpieczeństwa AC 230V 788-180
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 788-180 |
| GTIN(EAN) | 4050821867920 |
| Price unit | piece |
| Catalog price | 31,88 zł (25,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
przekaźnik bazowy; znamionowe napięcie wejściowe 230 V AC; 2 x zestyk przełączny; maksymalny prąd długotrwały 8 A; szerokość 13 mm; wysokość 15 mm
Additional features:
| Information | Value |
|---|---|
| Net weight: | 12,9 g |
| ETIM class: | Switching relay |
| Height: | 15.7 mm |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| Voltage type for actuating: | AC |
| Nominal current: | 8 A |
| Type of electric connection: | Plug-in connection |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP20 |
| With detachable clamps: | no |
| Number of contacts as normally open contact: | 0 |

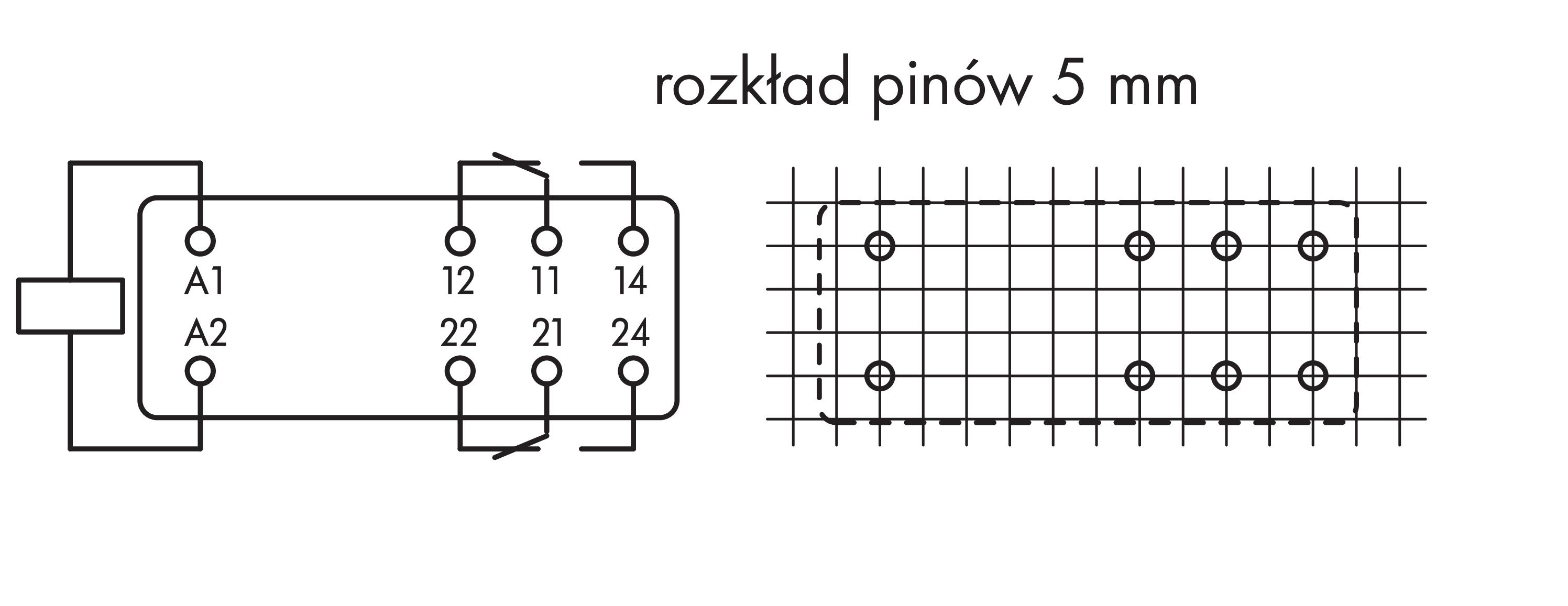

| Number of contacts as change-over contact: | 2 |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |

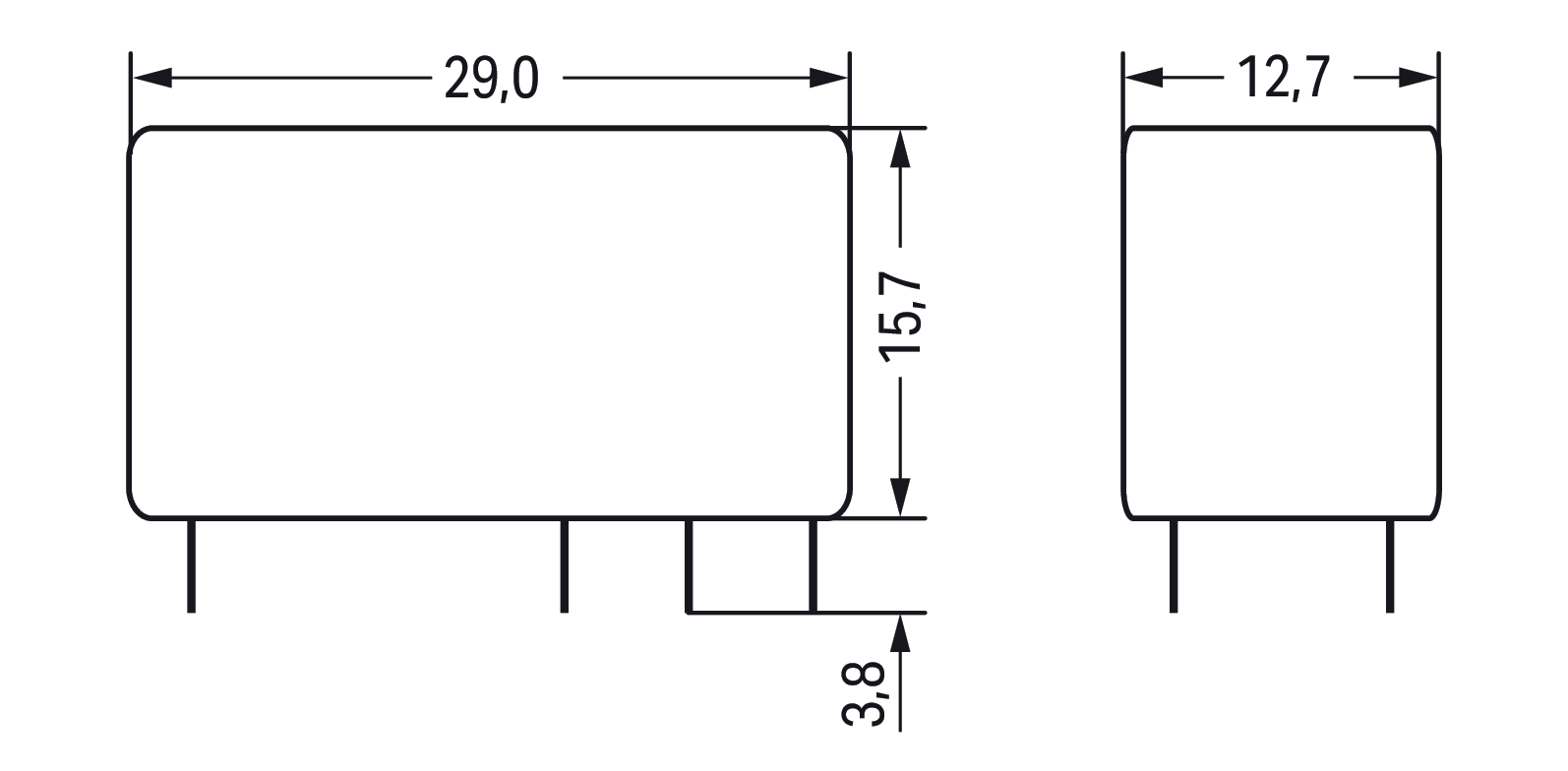

| Width: | 12.7 mm |
| Drive, polarization: | Polarized |
| With LED indication: | no |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Drive, switching attitude: | Mono stable |
| Depth: | 29 mm |
| With forced-guided contacts: | no |
| Number of contacts as normally closed contact: | 0 |
