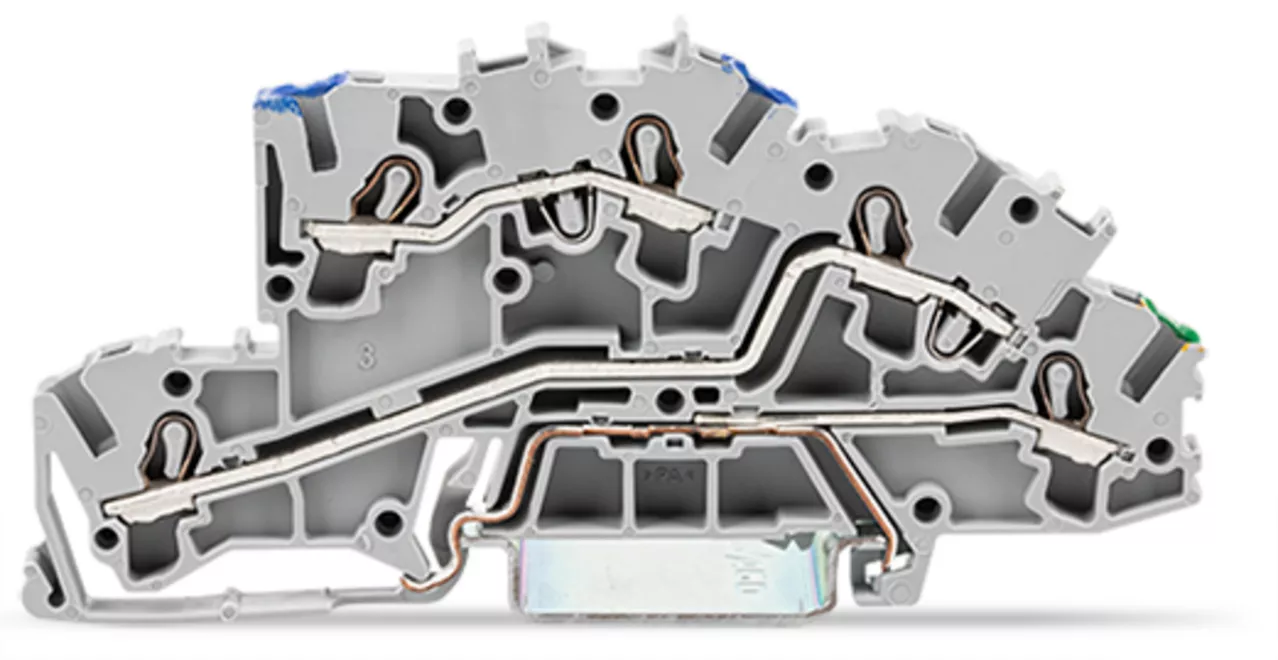

Piętrowa złączka instalacyjna z otworem montażowym 2,5 mm², szara 2003-7646
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2003-7646 |
| GTIN(EAN) | 4044918925617 |
| Price unit | piece |
| Catalog price | 17,98 zł (14,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

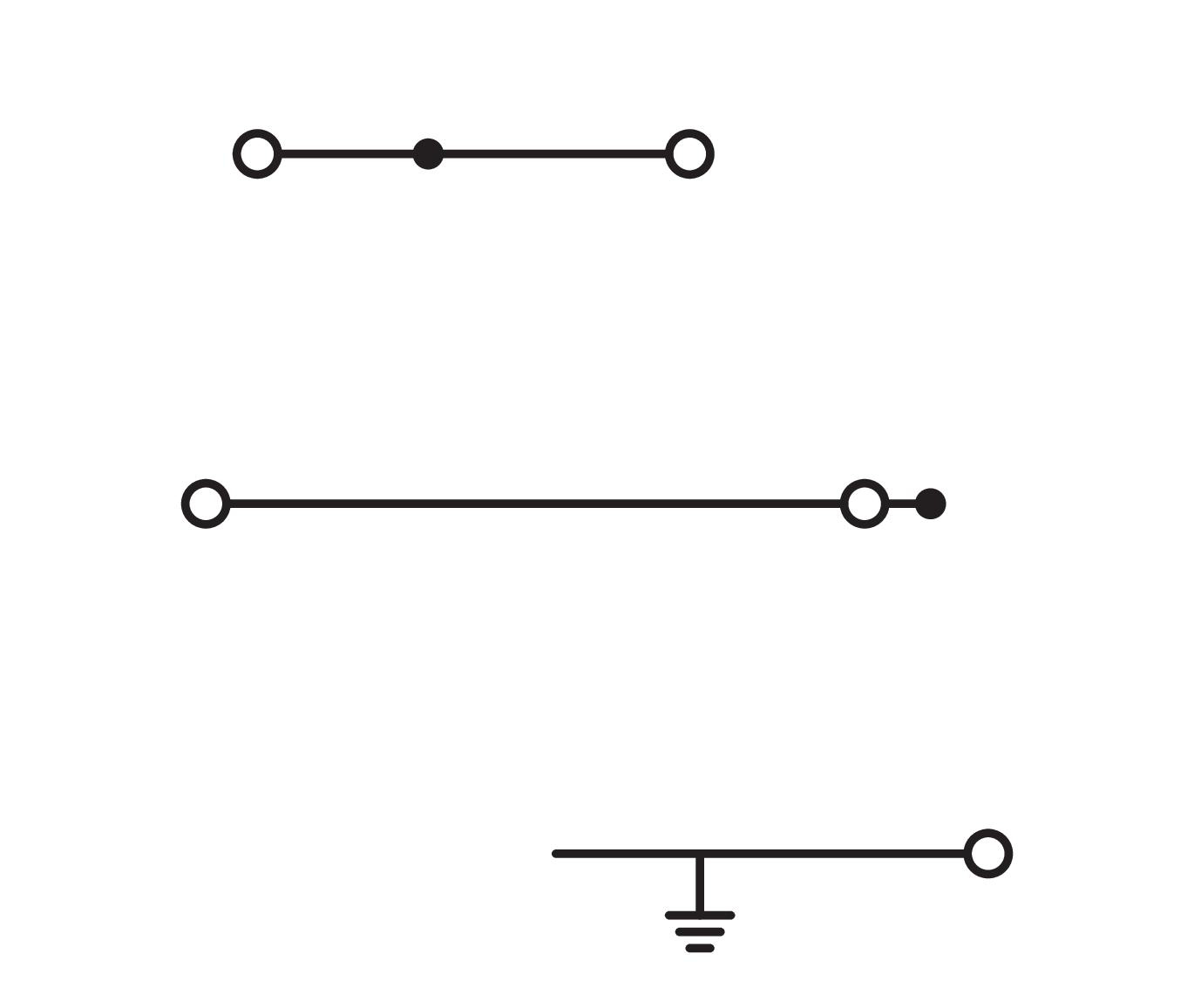

złączka instalacyjna piętrowa; z otworem montażowym; 2,5 mm²; N/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16,32 g |
| ETIM class: | Multi level installation terminal block |
| Operating temperature: | 105 - 105 °C |
| N function possible: | yes |
| Rated current In: | 32 A |
| Height: | 96 mm |
| Number of potentials: | 3 |
| PE-function: | yes |
| Basic colour: | Grey |
| With N-disconnect slide: | no |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Width: | 5.2 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 400 V |
| Depth: | 42.3 mm |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wieluń,
Traugutta 43
Distance:
Dostępność:
1 pc
Rabka,
Zakopiańska 6b
Distance:
Dostępność:
25 pc
GDAŃSK,
Marynarki Polskiej 82/84
Distance:
Dostępność:
489 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-04-04 15:06:56 |
| Files to download: | |
| External links: |
