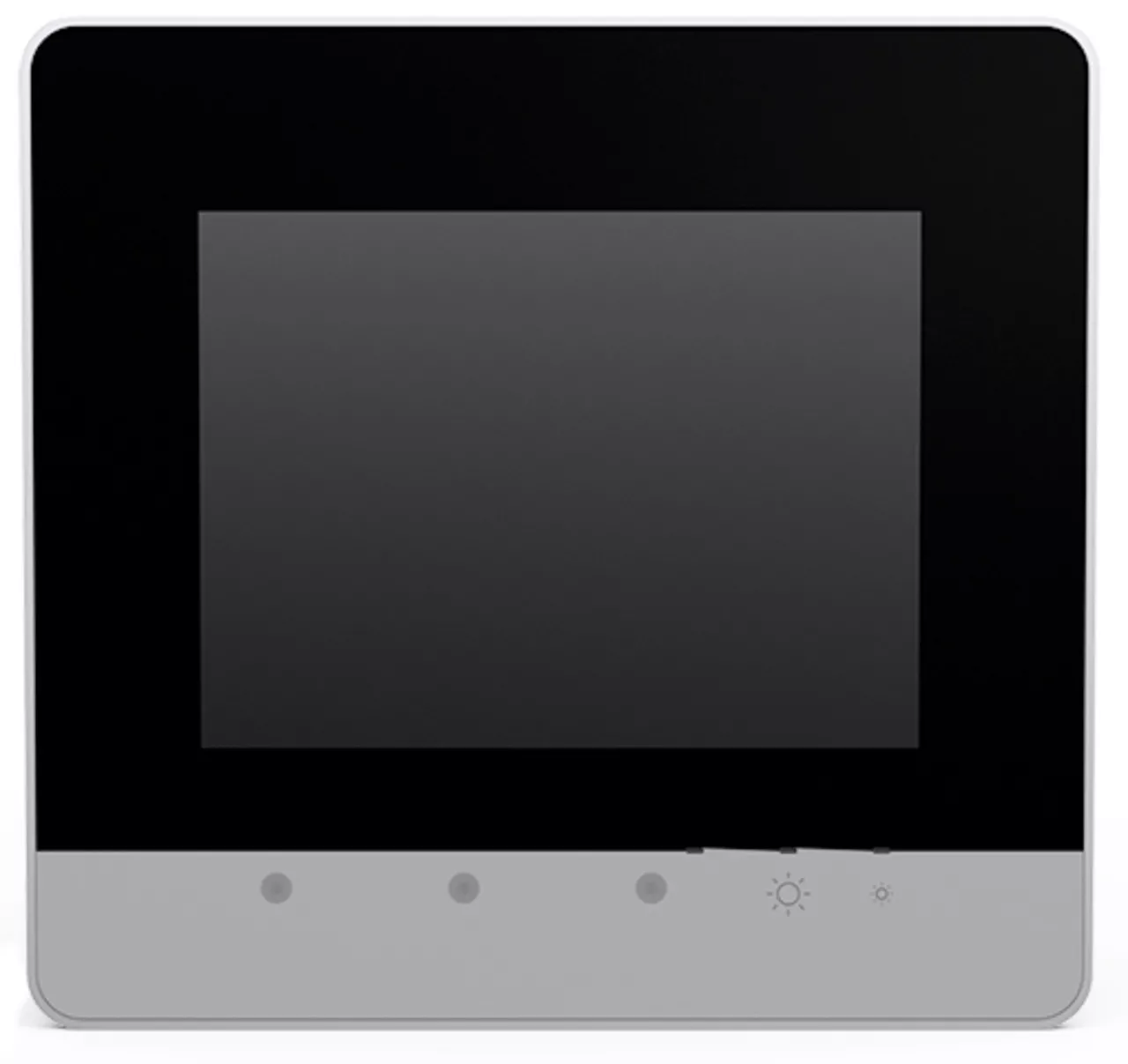

Panel dotykowy TP600 5.7 640x480 762-4202/8000-001
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 762-4202/8000-001 |
GTIN(EAN) | 4055143839457 |
Price unit | piece |
Catalog price | 6 316,05 zł (5 135,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
panele dotykowe TP 600; 14,5 cm (5,7"); 640 x 480 pikseli; 2 x ETHERNET, 2 x USB, audio; panel VISU
Additional features:
Information | Value |
---|---|
Net weight: | 843 g |
ETIM class: | Panel PC |
Operating temperature: | 0 - 55 °C |
Supporting protocol for AS-Interface Safety at Work: | no |
Max. main memory: | 4096 MB/s |
Screen diagonal: | 5.7 cal |
Supporting protocol for INTERBUS-Safety: | no |
Number of buttons with LED: | 0 |
Radio standard GPRS: | no |
Radio standard GSM: | no |
Radio standard UMTS: | no |
Degree of protection (IP), front side: | IP65 |
With DVD RW drive: | no |
With floppy disc drive: | no |
With other storage media: | yes |
Supporting protocol for SafetyBUS p: | no |
Type of display: | TFT |
Supporting protocol for EtherNet/IP: | yes |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for DeviceNet Safety: | no |
Voltage type (supply voltage): | DC |
Supporting protocol for PROFINET IO: | no |
With CD-ROM drive: | no |
Supporting protocol for PROFIsafe: | no |
With DVD-drive: | no |
Supporting protocol for PROFINET CBA: | no |
Number of system buttons: | 0 |
Number of HW-interfaces SCSI: | 0 |
Supporting protocol for LON: | no |
Number of HW-interfaces PS2: | 0 |
Supporting protocol for CAN: | no |
Front built-in possible: | yes |
Supporting protocol for INTERBUS: | no |
Supporting protocol for KNX: | no |
Number of pixels, horizontal: | 640 |
Customer individual configuration: | no |
Radio standard Bluetooth: | no |
Number of free AGP-slots: | 0 |
Radio standard WLAN 802.11: | no |
Supporting protocol for Modbus: | yes |
Mounting type, table foot: | no |
Number of free PCI-slots: | 0 |
Supporting protocol for Data-Highway: | no |
Number of free ISA-slots: | 0 |
Supporting protocol for DeviceNet: | no |
Mounting type, gallows mounting: | no |
Rail mounting possible: | no |
Number of free PCMCIA-slots: | 1 |
Rack-assembly possible: | yes |
Suitable for safety functions: | no |
With CD-RW drive: | no |
With hard disc: | no |
IO link master: | no |
Supporting protocol for ASI: | no |
Supporting protocol for PROFIBUS: | no |
Preinstalled operating system: | Linux |
Supply voltage DC: | 24 - 24 V |
Number of HW-interfaces wireless: | 0 |
Height of the front: | 163 mm |
Width of the front: | 172 mm |
Integrated keyboard: | no |
Number of HW-interfaces industrial Ethernet: | 2 |
Number of HW-interfaces RS-232: | 0 |
Number of function buttons: | 0 |
Number of HW-interfaces RS-422: | 0 |
Built-in depth: | 58 mm |
Mouse-cursor control integrated: | no |
Number of HW-interfaces RS-485: | 0 |
Number of pixels, vertical: | 480 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces USB: | 2 |
With touch screen: | yes |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces parallel: | 0 |
Supporting protocol for SERCOS: | no |
Number of HW-interfaces other: | 0 |
Supporting protocol for SUCONET: | no |
Supporting protocol for other bus systems: | yes |
Wall mounting/direct mounting: | yes |
