Panel dotykowy TP600 4.3 480x272 762-6201/8000-001
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 762-6201/8000-001 |
| GTIN(EAN) | 4055143825184 |
| Price unit | piece |
| Catalog price | 5 742,87 zł (4 669,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

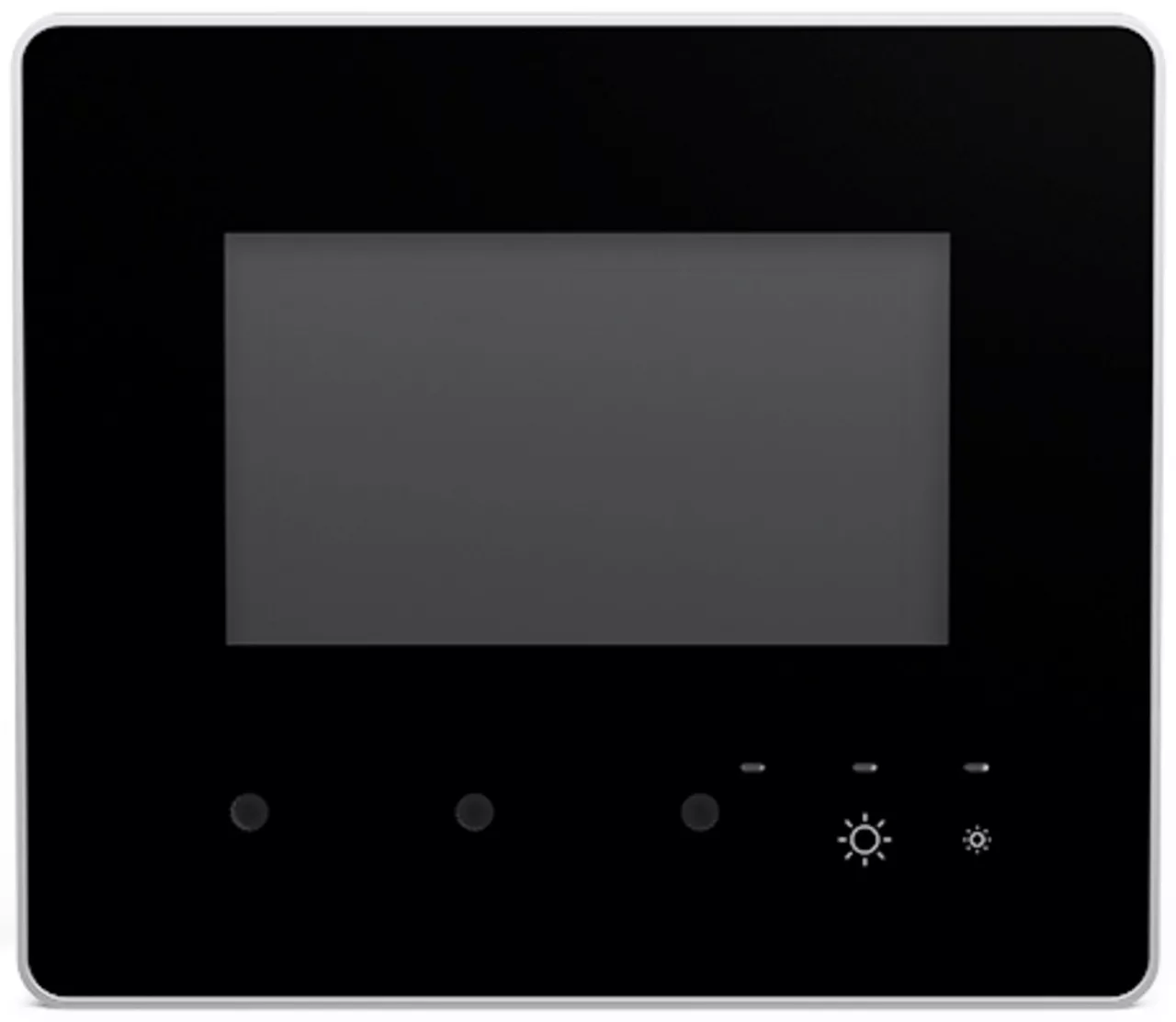

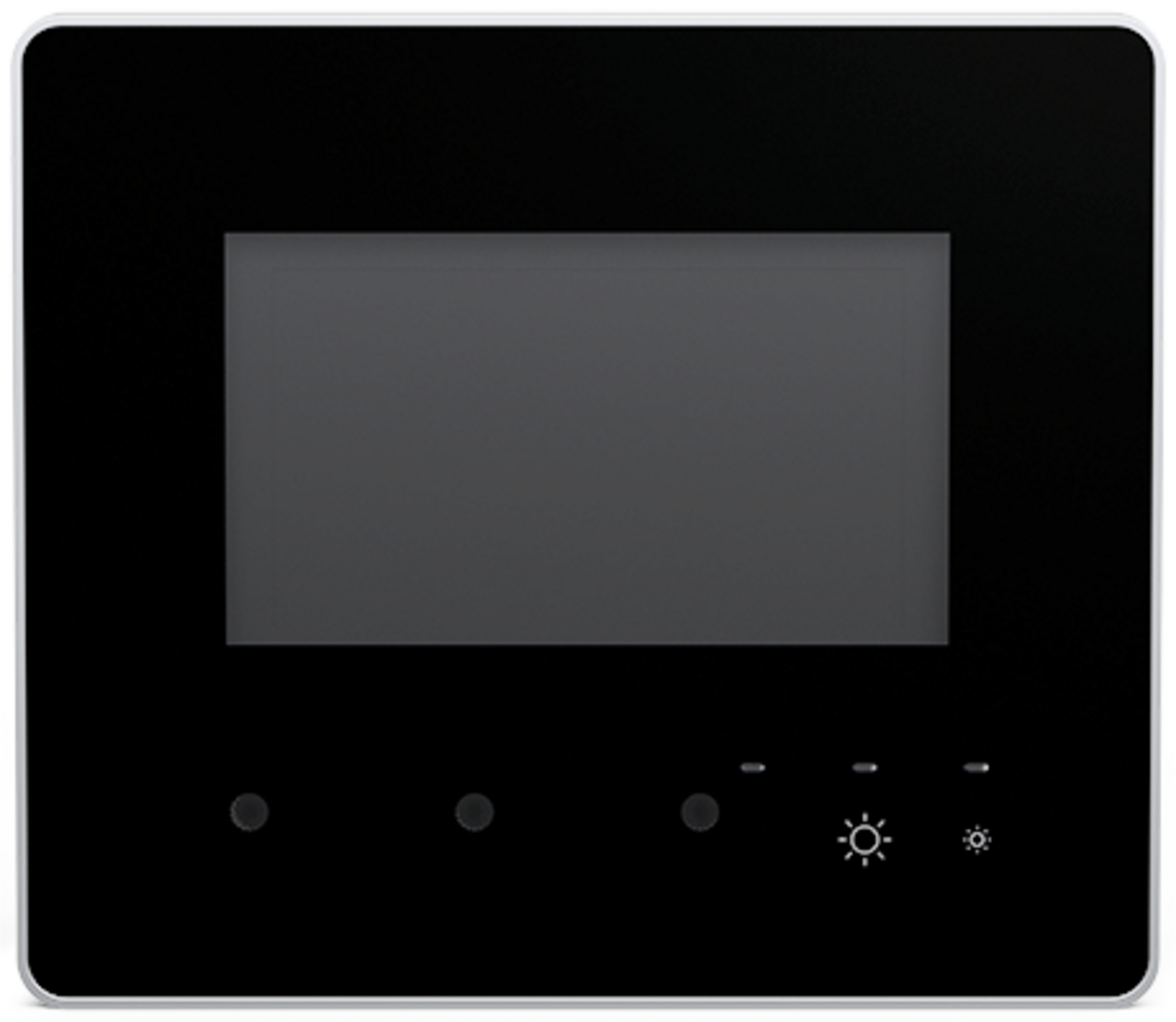

panele dotykowe TP 600; 10,9 cm (4,3"); 480 x 272 pikseli; 2 x ETHERNET, 2 x USB, audio; panel VISU
Additional features:
| Information | Value |
|---|---|
| Net weight: | 640 g |
| ETIM class: | Panel PC |
| Operating temperature: | 0 - 55 °C |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Max. main memory: | 4096 MB/s |
| Screen diagonal: | 4.3 cal |
| Supporting protocol for INTERBUS-Safety: | no |
| Number of buttons with LED: | 0 |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Degree of protection (IP), front side: | IP65 |
| With DVD RW drive: | no |
| With floppy disc drive: | no |
| With other storage media: | yes |
| Supporting protocol for SafetyBUS p: | no |
| Degree of protection (NEMA): | 4 |
| Type of display: | TFT |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for PROFINET IO: | no |
| With CD-ROM drive: | no |
| Supporting protocol for PROFIsafe: | no |
| With DVD-drive: | no |
| Supporting protocol for PROFINET CBA: | no |
| Number of system buttons: | 0 |
| Number of HW-interfaces SCSI: | 0 |
| Supporting protocol for LON: | no |
| Number of HW-interfaces PS2: | 0 |
| Supporting protocol for CAN: | no |
| Front built-in possible: | yes |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for KNX: | no |
| Number of pixels, horizontal: | 480 |
| Customer individual configuration: | no |
| Radio standard Bluetooth: | no |
| Number of free AGP-slots: | 0 |
| Radio standard WLAN 802.11: | no |
| Supporting protocol for Modbus: | yes |
| Mounting type, table foot: | no |
| Number of free PCI-slots: | 0 |
| Supporting protocol for Data-Highway: | no |
| Number of free ISA-slots: | 0 |
| Supporting protocol for DeviceNet: | no |
| Mounting type, gallows mounting: | no |
| Rail mounting possible: | no |
| Number of free PCMCIA-slots: | 1 |
| Rack-assembly possible: | yes |
| Suitable for safety functions: | no |
| With CD-RW drive: | no |
| With hard disc: | no |
| IO link master: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for PROFIBUS: | no |
| Preinstalled operating system: | Linux |
| Supply voltage DC: | 24 - 24 V |
| Number of HW-interfaces wireless: | 0 |
| Height of the front: | 135 mm |
| Width of the front: | 155 mm |
| Integrated keyboard: | no |
| Number of HW-interfaces industrial Ethernet: | 2 |
| Number of HW-interfaces RS-232: | 0 |
| Number of function buttons: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Built-in depth: | 58 mm |
| Mouse-cursor control integrated: | no |
| Number of HW-interfaces RS-485: | 0 |
| Number of pixels, vertical: | 272 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 2 |
| With touch screen: | yes |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of HW-interfaces other: | 1 |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Wall mounting/direct mounting: | yes |
