Moduły przyłączeniowe M8 6-tor. 3-bieg. 757-463/000-010
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 757-463/000-010 |
| GTIN(EAN) | 4044918978620 |
| Price unit | piece |
| Catalog price | 374,66 zł (304,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

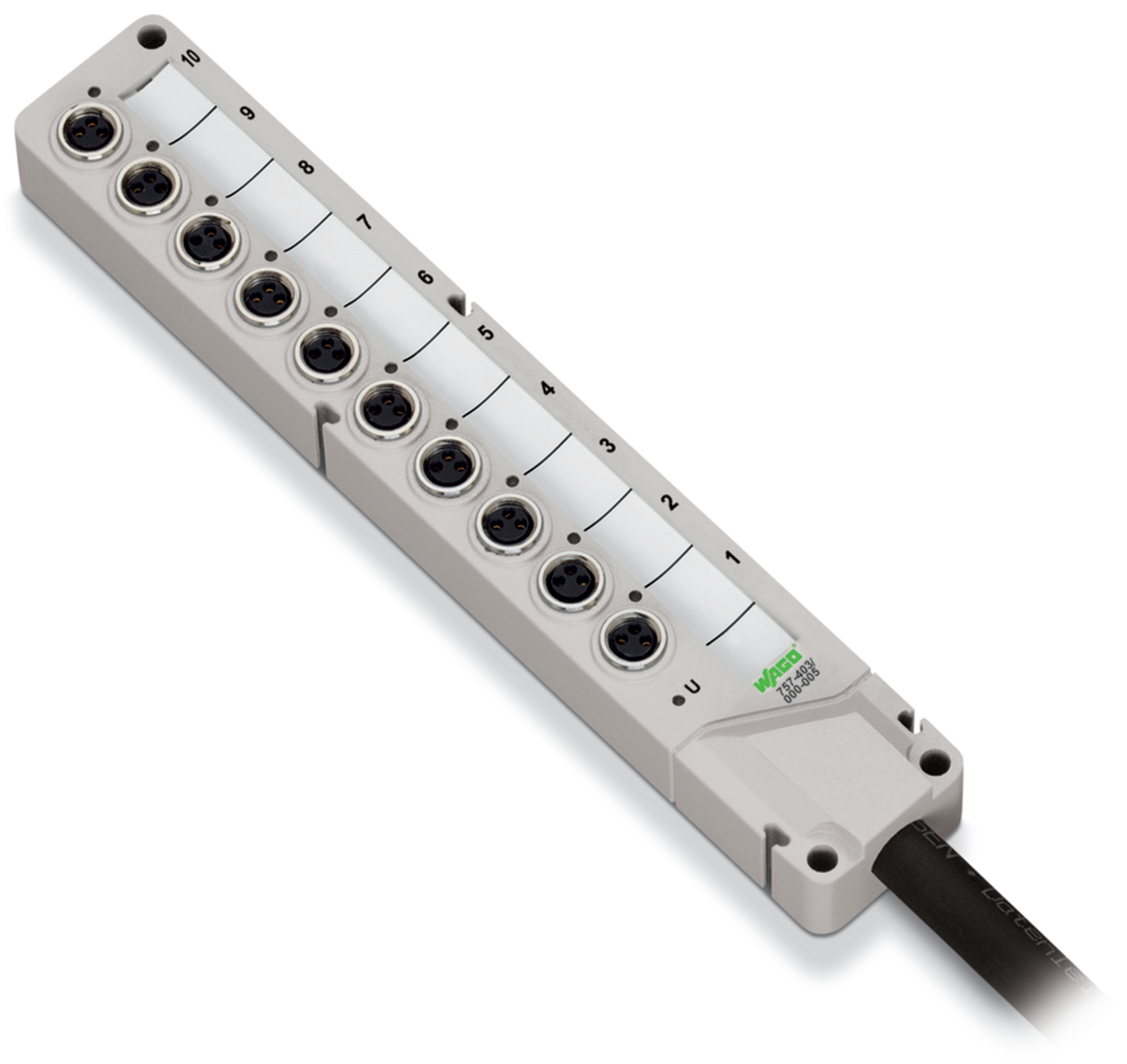

moduł przyłączeniowy M8 do czujników/elementów wykonawczych; 6-torowy; 3-bieg.; 10 m
Additional features:
| Information | Value |
|---|---|
| Net weight: | 763 g |
| ETIM class: | Passive sensor-actuator interface (with cable) |
| Material insulation body: | Polyamide (PA) |
| Operating temperature: | -25 - 80 °C |
| Max. current carrying capacity per I/O signal: | 2 A |
| Max. current carrying capacity per socket: | 6 A |
| Housing colour: | Other |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Operating voltage: | 10 - 30 V |
| Length of the preassembled cable: | 10 m |
| Thread sleeves sensor/actuator slots: | M8 |
| Width: | 30 mm |
| With LED indication: | yes |
| Pollution degree: | 3 |
| Rated voltage: | 32 V |
| Number of channels per connector slot: | 6 |
| Depth: | 123 mm |
| With potential separation: | no |
| Material contact body: | Brass |
| Height: | 20 mm |
| Housing material: | Plastic |
| Connection for NPN-sensors: | no |
| Material of contact surface: | Gold |
| Degree of protection (IP): | IP68 |
| Number of sensor-/actuator-slots: | 6 |
| Cable length configurable: | yes |
| Type of branches for sensor-/actuator cables: | M8 |
| Number of poles sensor/actuator slots: | 3 |
| Fix cable version suitable for cable guide chain: | yes |
