Moduły przyłączeniowe M8 10-tor. 3-bieg. 757-303
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 757-303 |
GTIN(EAN) | 4044918978705 |
Price unit | piece |
Catalog price | 291,14 zł (236,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

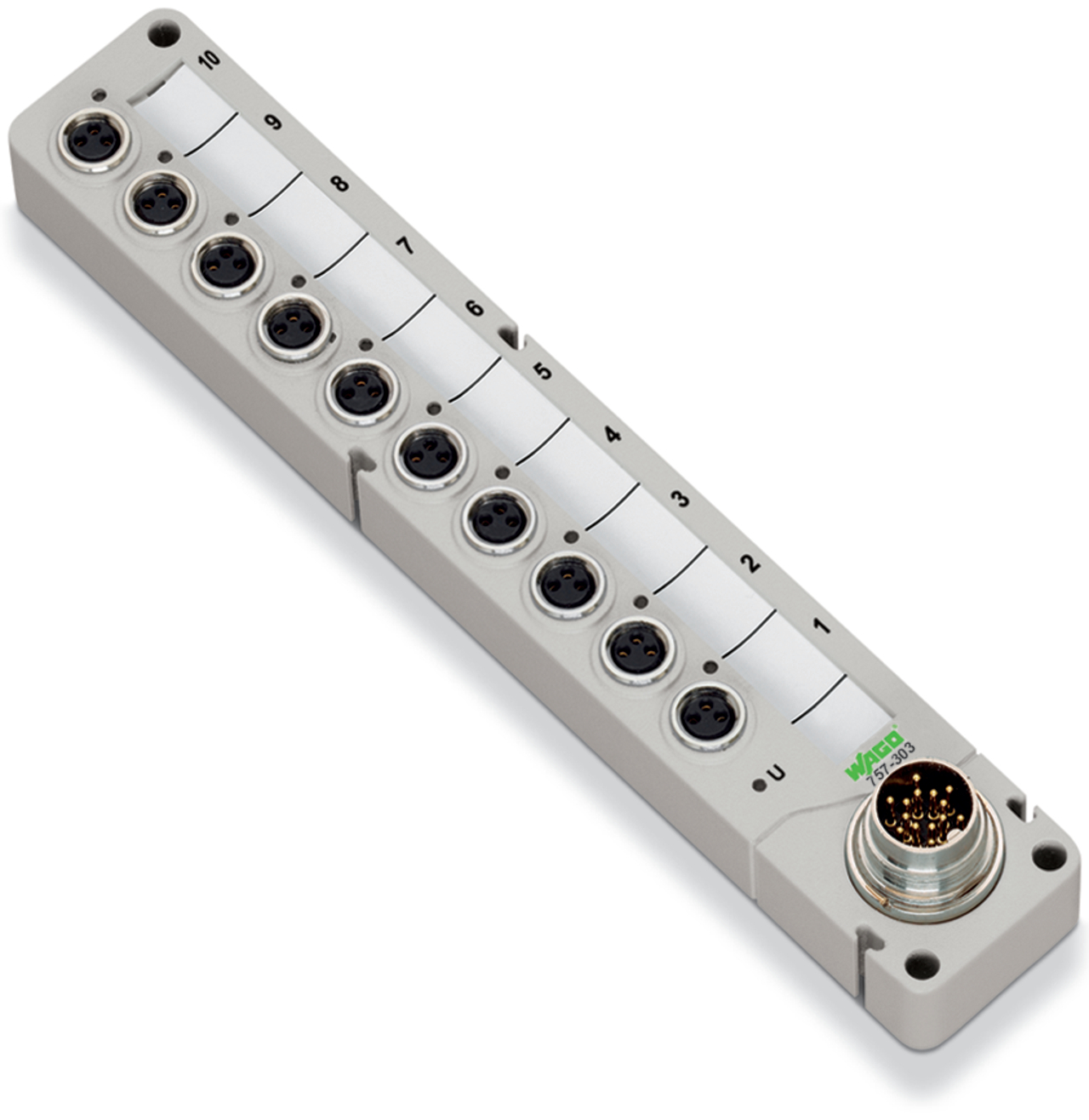

moduł przyłączeniowy M8 do czujników/elementów wykonawczych; 10-torowy; 3-bieg.; złącze M16
Additional features:
Information | Value |
---|---|
Net weight: | 160 g |
ETIM class: | Passive sensor-actuator interface (without cable) |
Operating temperature: | -25 - 80 °C |
Material insulation body: | PA |
Max. current carrying capacity per I/O signal: | 2 A |
Max. current carrying capacity per socket: | 6 A |
Explosion safety category for gas: | None |
Housing colour: | Other |
Explosion safety category for dust: | None |
Operating voltage: | 10 - 30 V |
Thread sleeves sensor/actuator slots: | M8 |
Length: | 175 mm |
With LED indication: | yes |
Width: | 30 mm |
Pollution degree: | 3 |
Number of channels per connector slot: | 10 |
Rated voltage: | 32 V |
With potential separation: | yes |
Material contact body: | Brass |
Height: | 26 mm |
Type of connector for trunk line: | M16 |
Housing material: | Plastic |
Connection for NPN-sensors: | no |
Material of contact surface: | Gold |
Number of sensor-/actuator-slots: | 10 |
Degree of protection (IP): | IP68 |
Type of branches for sensor-/actuator cables: | M8 |
Number of poles sensor/actuator slots: | 3 |
Fix cable version suitable for cable guide chain: | no |
