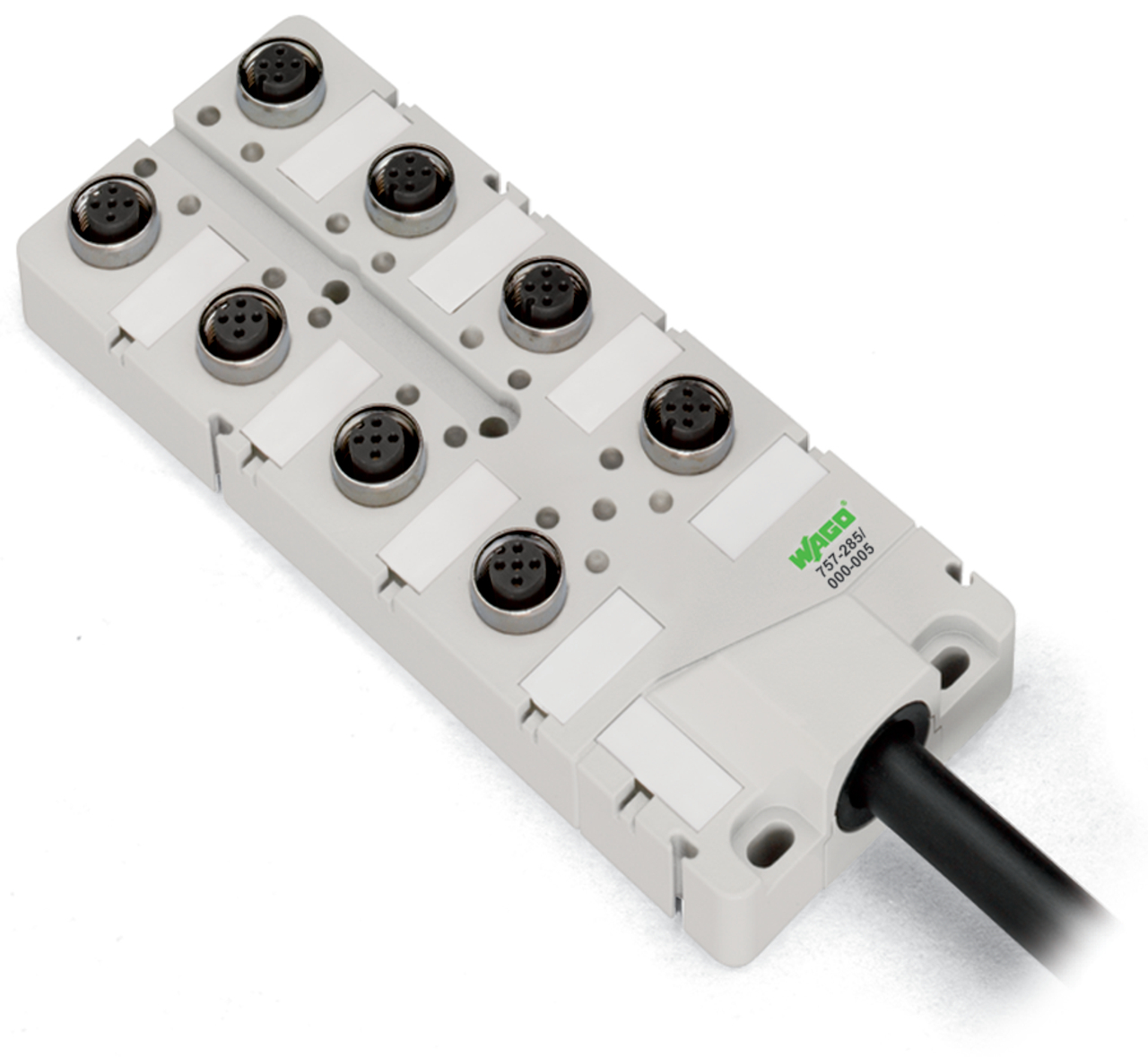

Moduł przyłączeniowy IP 67 8-tor. 4-bieg. 757-284/000-025
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 757-284/000-025 |
GTIN(EAN) | 4045454478964 |
Price unit | piece |
Catalog price | 722,38 zł (587,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
M12, moduł przyłącz. do cz./el. wykon.; 8-torowy; 4-bieg.; 25 m
Additional features:
Information | Value |
---|---|
Net weight: | 2,74 kg |
ETIM class: | Passive sensor-actuator interface (with cable) |
Material insulation body: | Polyamide (PA) |
Operating temperature: | -25 - 80 °C |
Max. current carrying capacity per I/O signal: | 2 A |
Max. current carrying capacity per socket: | 9 A |
Housing colour: | Grey |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Operating voltage: | 10 - 30 V |
Length of the preassembled cable: | 25 m |
Thread sleeves sensor/actuator slots: | M12 |
Width: | 60 mm |
With LED indication: | yes |
Pollution degree: | 3 |
Rated voltage: | 32 V |
Number of channels per connector slot: | 8 |
Depth: | 152 mm |
With potential separation: | no |
Material contact body: | Brass |
Height: | 26 mm |
Housing material: | Plastic |
Connection for NPN-sensors: | no |
Material of contact surface: | Gold |
Degree of protection (IP): | IP68 |
Number of sensor-/actuator-slots: | 8 |
Cable length configurable: | yes |
Type of branches for sensor-/actuator cables: | M12 |
Number of poles sensor/actuator slots: | 4 |
Fix cable version suitable for cable guide chain: | yes |
