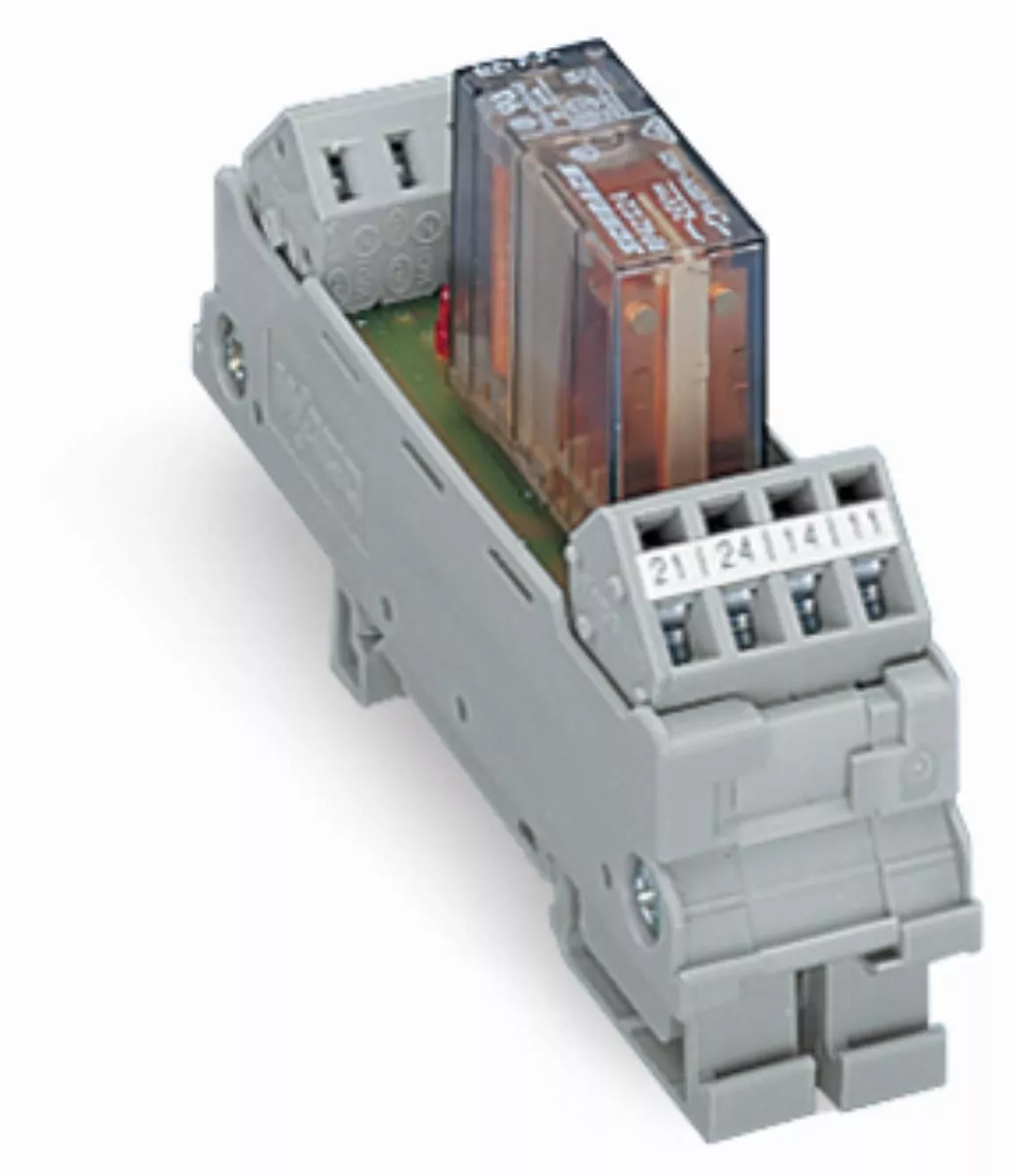

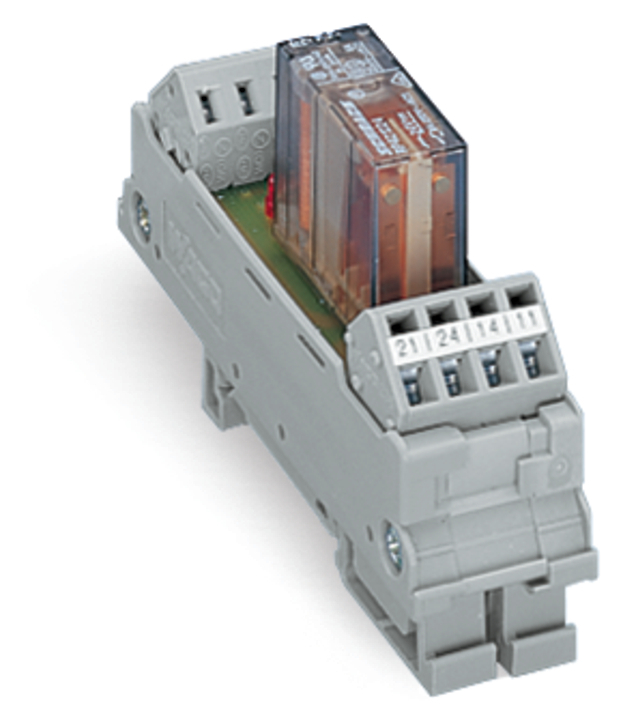

Moduł przekaźnikowy AC/DC 24V, szary 288-512
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 288-512 |
GTIN(EAN) | 4045454413750 |
Price unit | piece |
Catalog price | 355,35 zł (288,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
przekaźnik; znamionowe napięcie wejściowe 24 V AC/DC; 2 x zestyk przełączny; maksymalny prąd długotrwały 6 A; szerokość 23 mm; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 48,4 g |
ETIM class: | Switching relay |
Height: | 85 mm |
Type of switch contact: | Single contact |
Complete with socket: | yes |
Voltage type for actuating: | AC/DC |
Nominal current: | 6 A |
Type of electric connection: | Spring clamp connection |
Material of contact surface: | Silver |
Rated control supply voltage DC: | 24 - 24 V |
Degree of protection (IP): | IP20 |
With detachable clamps: | no |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 2 |
Rated control supply voltage AC 60 Hz: | 24 - 24 V |
Width: | 22.5 mm |
Drive, polarization: | Polarity free |
With LED indication: | no |
Rated control supply voltage AC 50 Hz: | 24 - 24 V |
Drive, switching attitude: | Mono stable |
Depth: | 48 mm |
With forced-guided contacts: | no |
Number of contacts as normally closed contact: | 0 |
