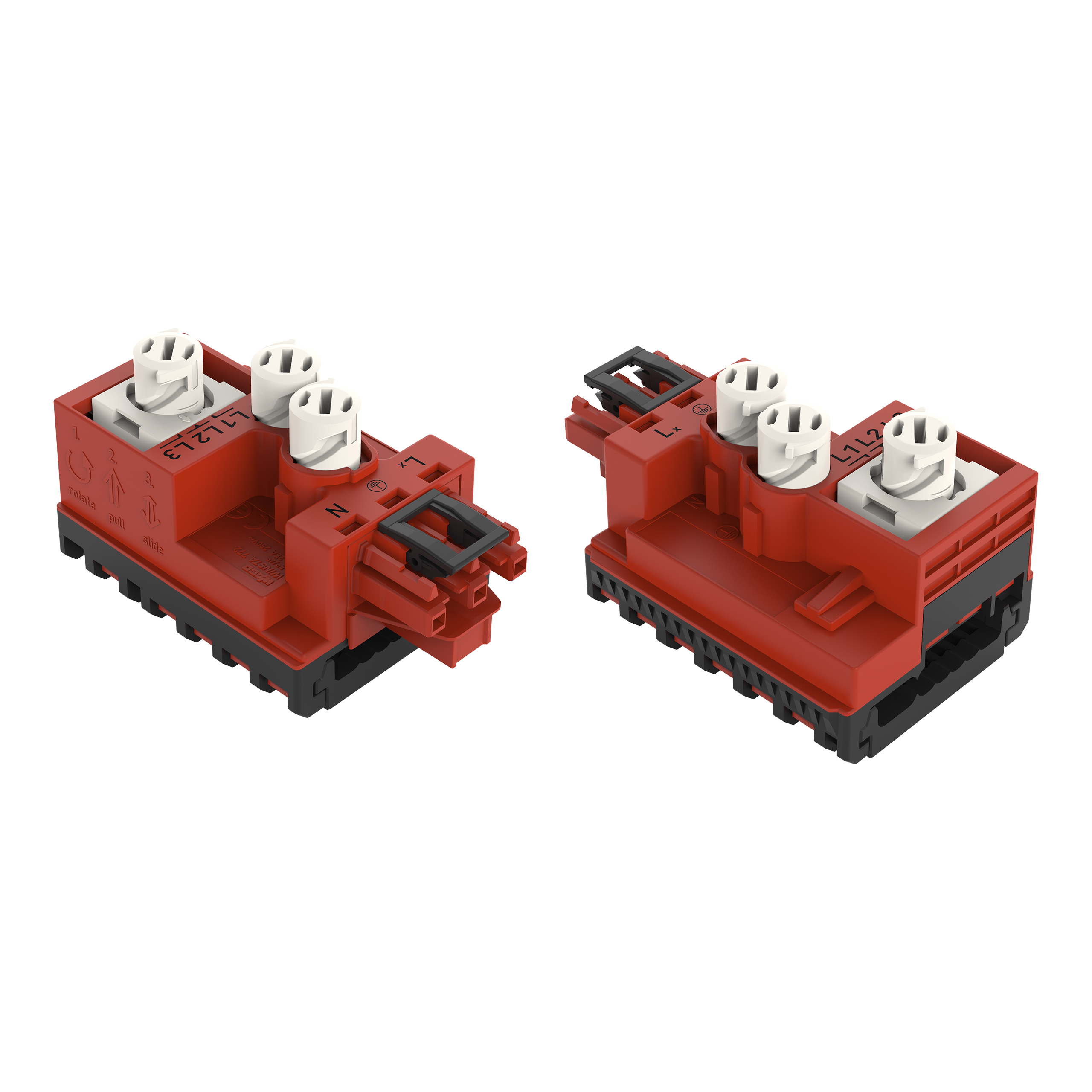

Moduł odejściowy do płaskiego przewodu 5 x 2,5 mm² + 2 x 1,5 mm², czerwona 772-269
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 772-269 |
GTIN(EAN) | 4045454599539 |
Price unit | piece |
Catalog price | 91,13 zł (74,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
moduł odejściowy; do przewodu płaskiego; 5 x 2,5 mm² + 2 x 1,5 mm²; 3-bieg.; kodowanie P; z podłączeniem przewodu na wyjściu; czerwony
Additional features:
Information | Value |
---|---|
Net weight: | 69,72 g |
ETIM class: | Flat cable adapter for plug-in building installation |
Fire load: | 0.50917 kWh |
Halogen free: | yes |
Housing colour: | Red |
Model: | Branch |
Number of poles: | 3 |
Type of integrated switching: | None |
Transparent: | no |
Type of locking: | Integrated in plug-in connector |
Phase pickup: | Selectable |
Rated current: | 25 A |
Rated voltage: | 250 V |

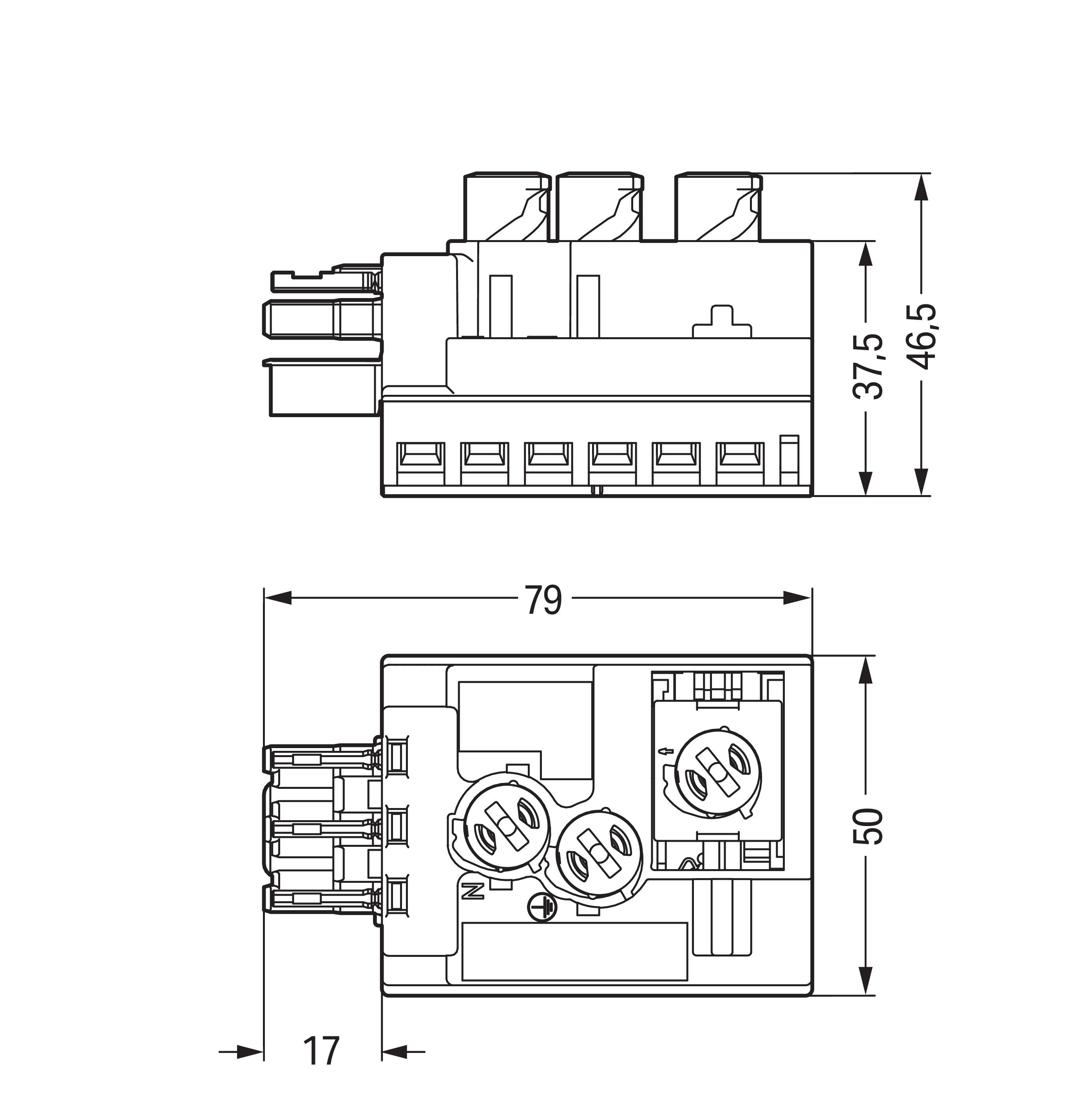

Width: | 49 mm |
Length: | 79 mm |
Height: | 46.5 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Housing material: | Polyamide (PA) |
Max. continuous temperature resistance contact part: | 85 °C |
Mechanical coding: | yes |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Red |
Pole codification: | L, N, PE |
