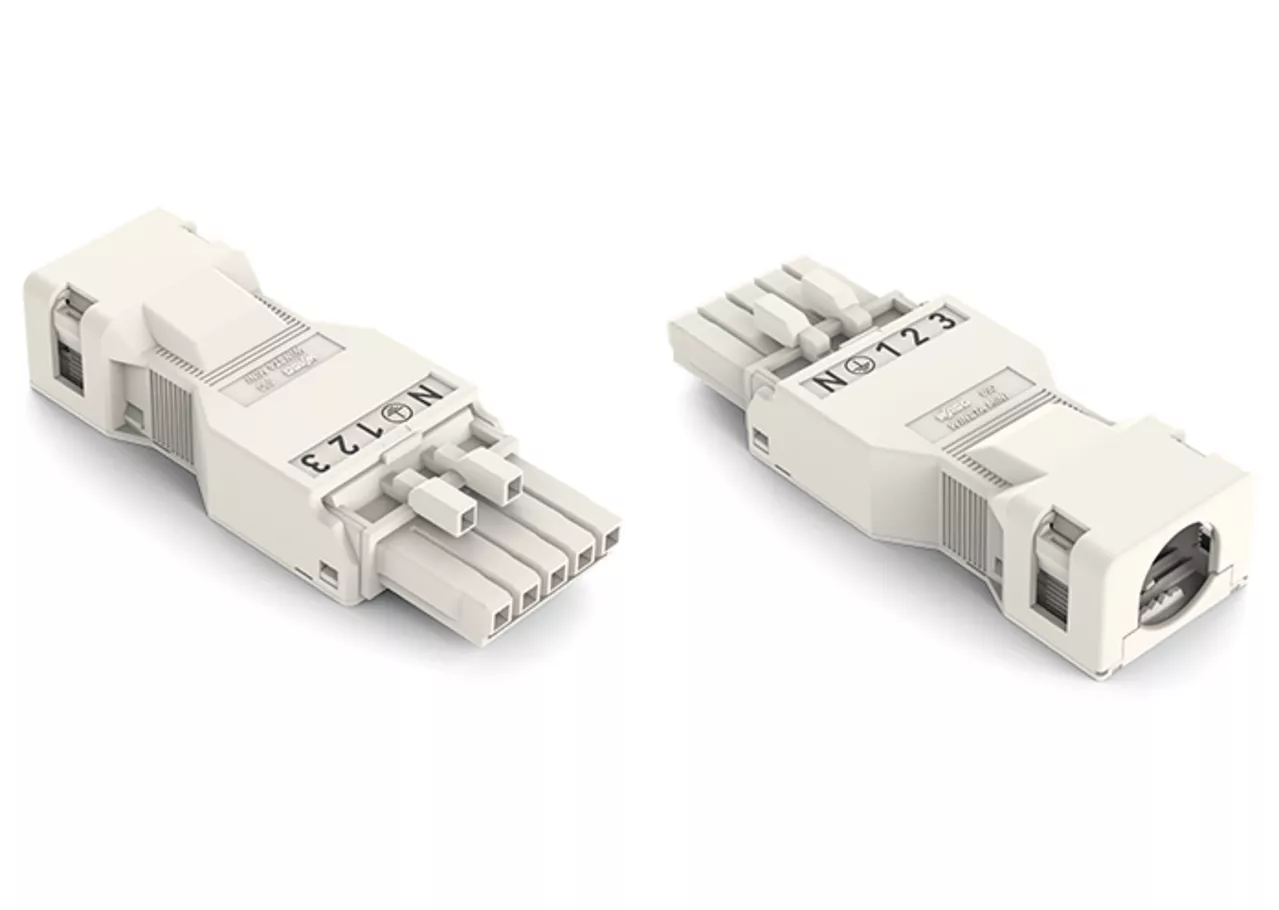

Gniazdo z obudową odciążającą przewody 5-bieg., białe 890-125
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-125 |
GTIN(EAN) | 4045454232986 |
Price unit | piece |
Catalog price | 35,44 zł (28,81 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 12,02 g |
ETIM class: | Plug-in connector for plug-in building installation |
Housing material: | Polyamide (PA) |
Connection type: | Spring clamp connection |
Halogen free: | yes |
Max. continuous temperature resistance strain relief: | 105 °C |
Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
Connection cross section (solid-core): | 0.25 - 1.5 mm² |
Max. continuous temperature resistance contact part: | 85 °C |

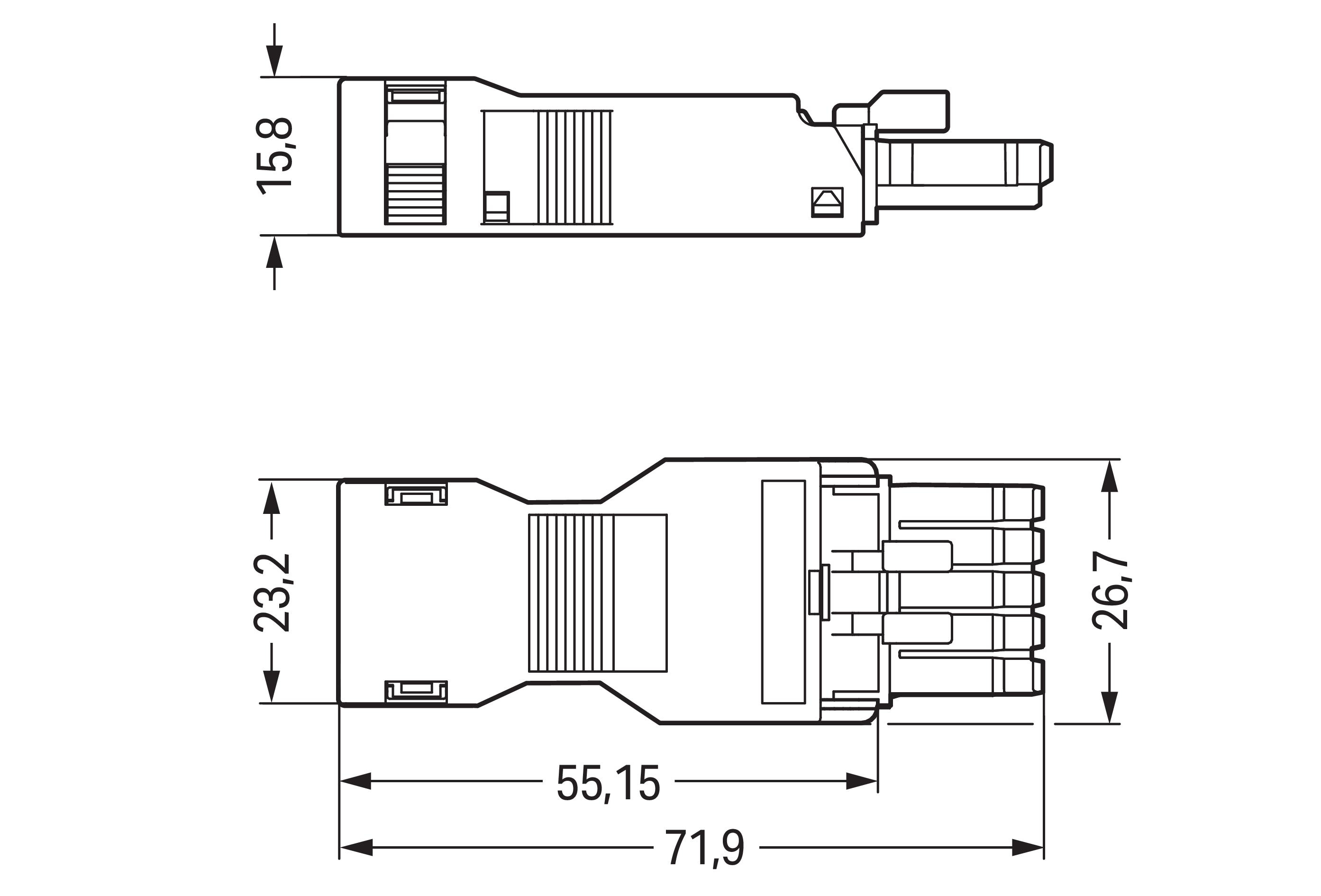

Height: | 15.8 mm |
With strain relief: | yes |
Continuity resistance: | 1 mΩ |
Rated surge voltage: | 6 kV |
Mechanical coding: | yes |
Type of locking: | Separate |
Width: | 26.7 mm |
Model: | Bus |
Degree of protection (IP): | IP40 |
Length: | 71.9 mm |
Rated current: | 13 A |
Rated voltage: | 400 V |
Cable diameter: | 6.5 - 10.5 mm |
Colour coding/contact insert: | White |
Pole codification: | 3, N, PE, 2, 1 |
Pollution degree: | 3 |
Number of poles: | 5 |
Surface treatment contacts: | Tinned |
Fire load: | 0.01222 kWh |
Contact material: | CuSn |
Number of connections per pole: | 1 |
