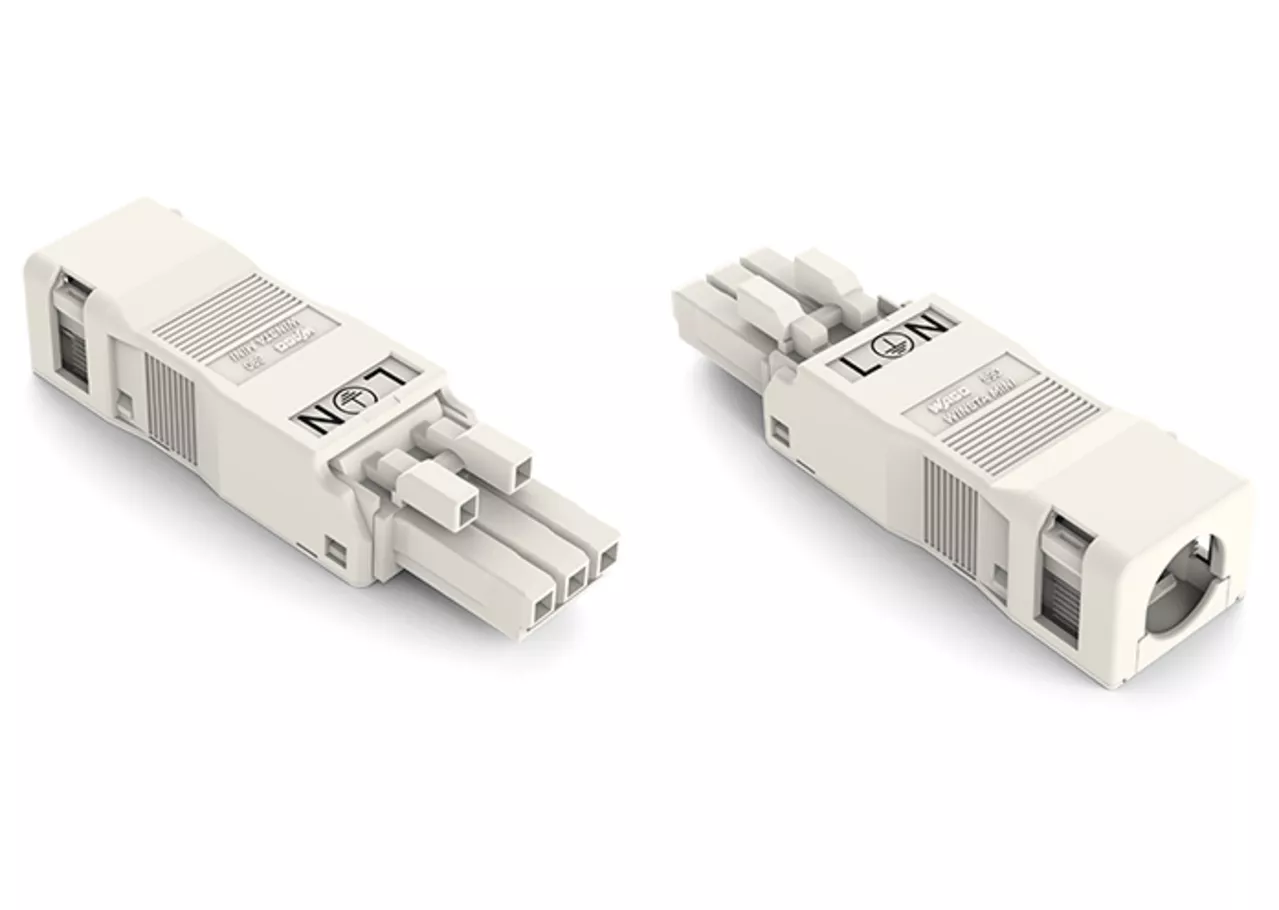

Gniazdo z obudową odciążającą przewody 3-bieg., białe 890-123
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-123 |
GTIN(EAN) | 4045454232962 |
Price unit | piece |
Catalog price | 22,07 zł (17,94 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo; z obudową odciążającą przewody; 3-bieg.; kodowanie A; 1,50 mm²; biały
Additional features:
Information | Value |
---|---|
Net weight: | 6,81 g |
ETIM class: | Plug-in connector for plug-in building installation |
Housing material: | Polyamide (PA) |
Connection type: | Spring clamp connection |
Halogen free: | yes |
Max. continuous temperature resistance strain relief: | 105 °C |
Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
Connection cross section (solid-core): | 0.25 - 1.5 mm² |
Max. continuous temperature resistance contact part: | 85 °C |

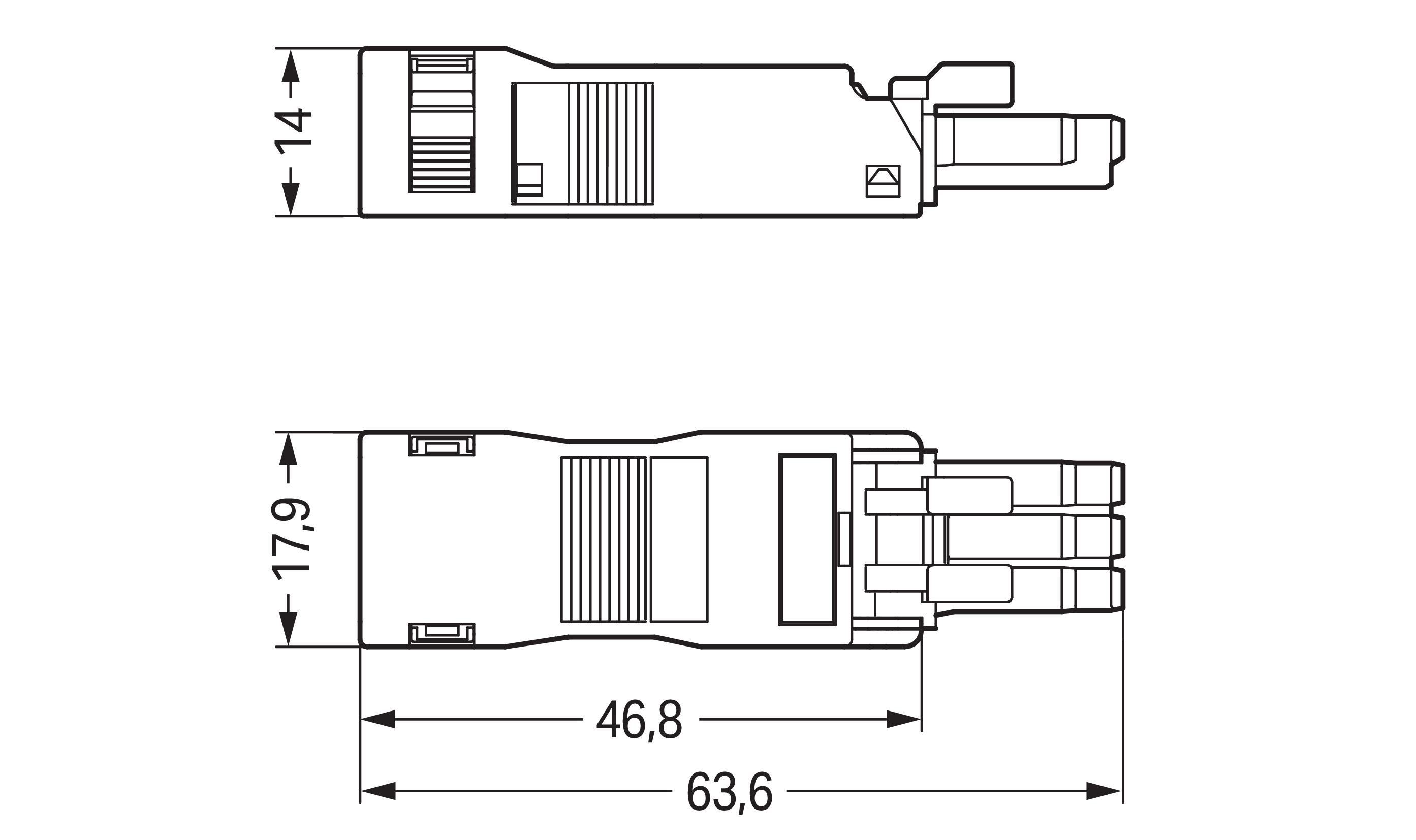

Height: | 14 mm |
With strain relief: | yes |
Continuity resistance: | 1 mΩ |
Rated surge voltage: | 4 kV |
Mechanical coding: | yes |
Type of locking: | Separate |
Width: | 17.9 mm |
Model: | Bus |
Degree of protection (IP): | IP40 |
Length: | 63.6 mm |
Rated current: | 16 A |
Rated voltage: | 250 V |
Cable diameter: | 4.5 - 10 mm |
Colour coding/contact insert: | White |
Pole codification: | L, N, PE |
Pollution degree: | 3 |
Number of poles: | 3 |
Surface treatment contacts: | Tinned |
Fire load: | 0.00694 kWh |
Contact material: | CuSn |
Number of connections per pole: | 1 |
