Gniazdo Snap-In szare 890-745/060-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 890-745/060-000 |
| GTIN(EAN) | 4055143427661 |
| Price unit | piece |
| Catalog price | 27,34 zł (22,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

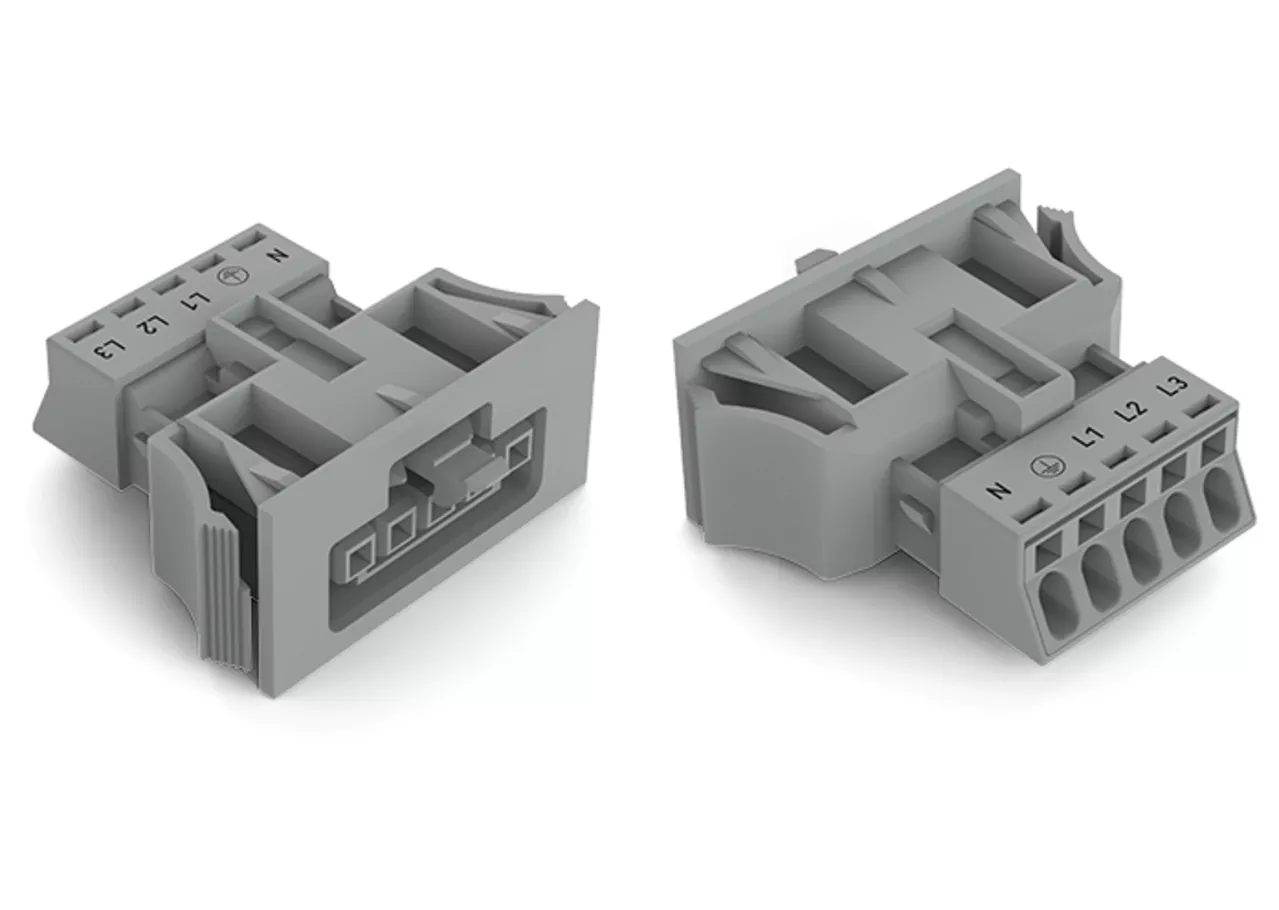

gniazdo Snap-In; 5-bieg.; kodowanie B; 1,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,02 g |
| ETIM class: | Device connection for plug-in building installation |
| Fire load: | 0.05722 kWh |
| Halogen free: | yes |
| Number of connections per pole: | 1 |
| Housing colour: | Grey |
| Rated surge voltage: | 6 kV |
| Model: | Bus |
| Number of poles: | 5 |
| Type of locking: | Integrated in plug-in connector |
| Rated current: | 16 A |

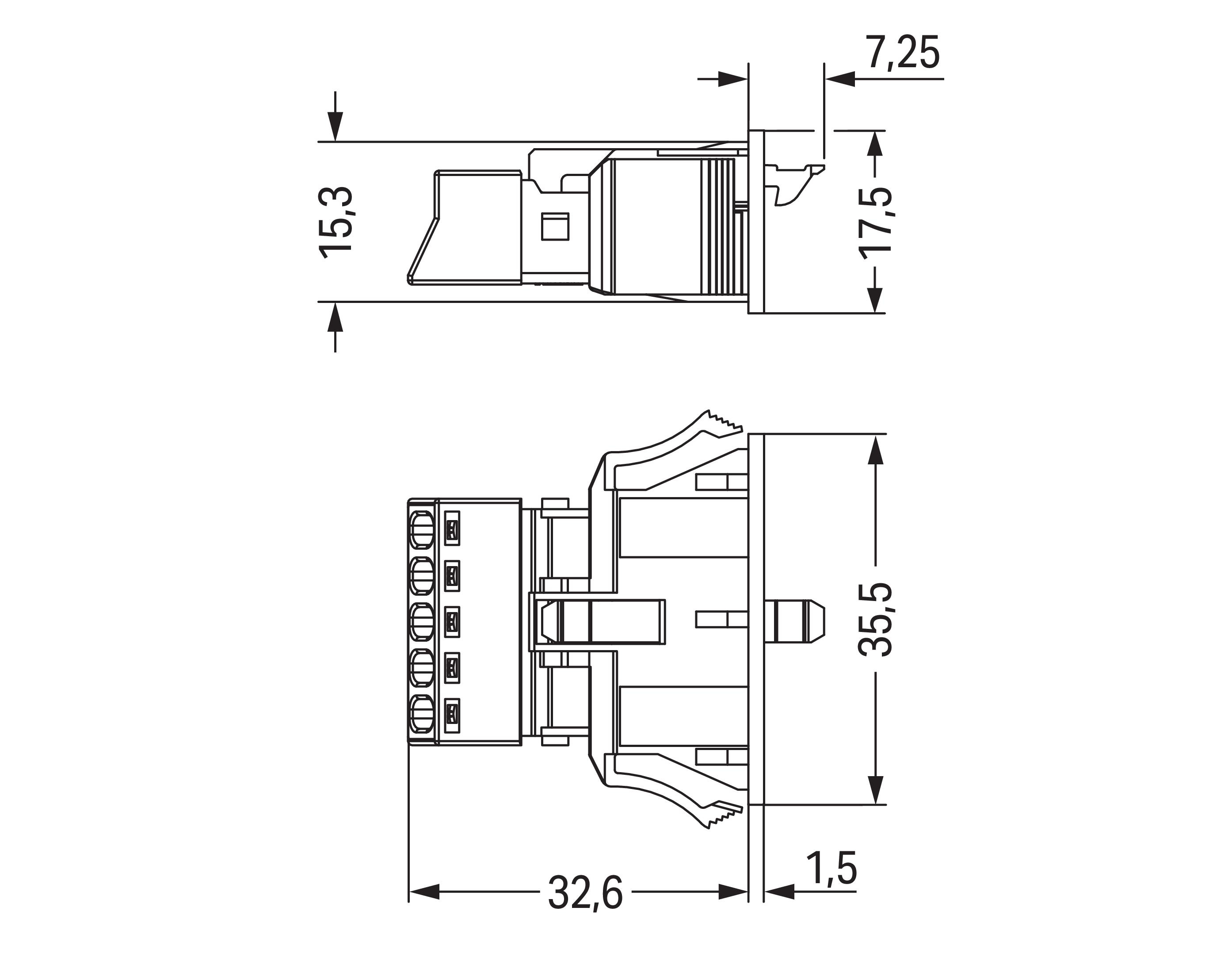

| Length: | 39.85 mm |
| Rated voltage: | 400 V |
| Width: | 35.5 mm |
| Angle of inclination: | 0 - 0 ° |
| Height: | 17.5 mm |
| Connection type: | Spring clamp connection |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Connection size thread: | No thread connection |
| Housing material: | Polyamide (PA) |
| Connection cross section (solid-core): | 0.25 - 1.5 mm² |
| Mechanical coding: | yes |
| Surface treatment contacts: | Tinned |
| Max. continuous temperature resistance contact part: | 85 °C |
| Continuity resistance: | 1 mΩ |
| Degree of protection (IP): | IP40 |
| Colour coding/contact insert: | Grey |
| Pollution degree: | 3 |
| Colour of the separate adapter piece: | Without adapter piece |
| Insert direction: | Straight |
| Built-in version: | Snap-in/screw-in device |
| Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
