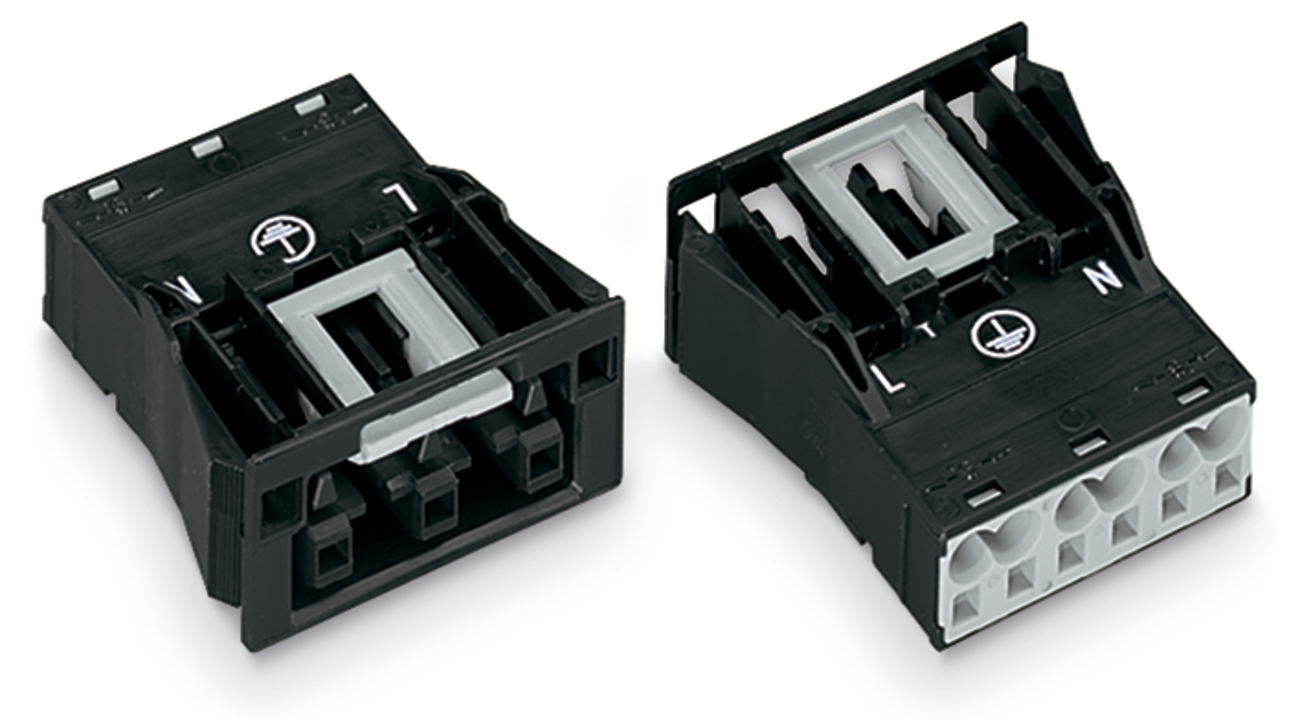

Gniazdo Snap-In czarne 770-703
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-703 |
GTIN(EAN) | 4044918252560 |
Price unit | piece |
Catalog price | 14,45 zł (11,75 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 11,93 g |
ETIM class: | Device connection for plug-in building installation |
Fire load: | 0.06583 kWh |
Halogen free: | yes |
Number of connections per pole: | 2 |
Housing colour: | Black |
Rated surge voltage: | 4 kV |
Model: | Bus |
Number of poles: | 3 |
Type of locking: | Integrated in plug-in connector |
Rated current: | 25 A |

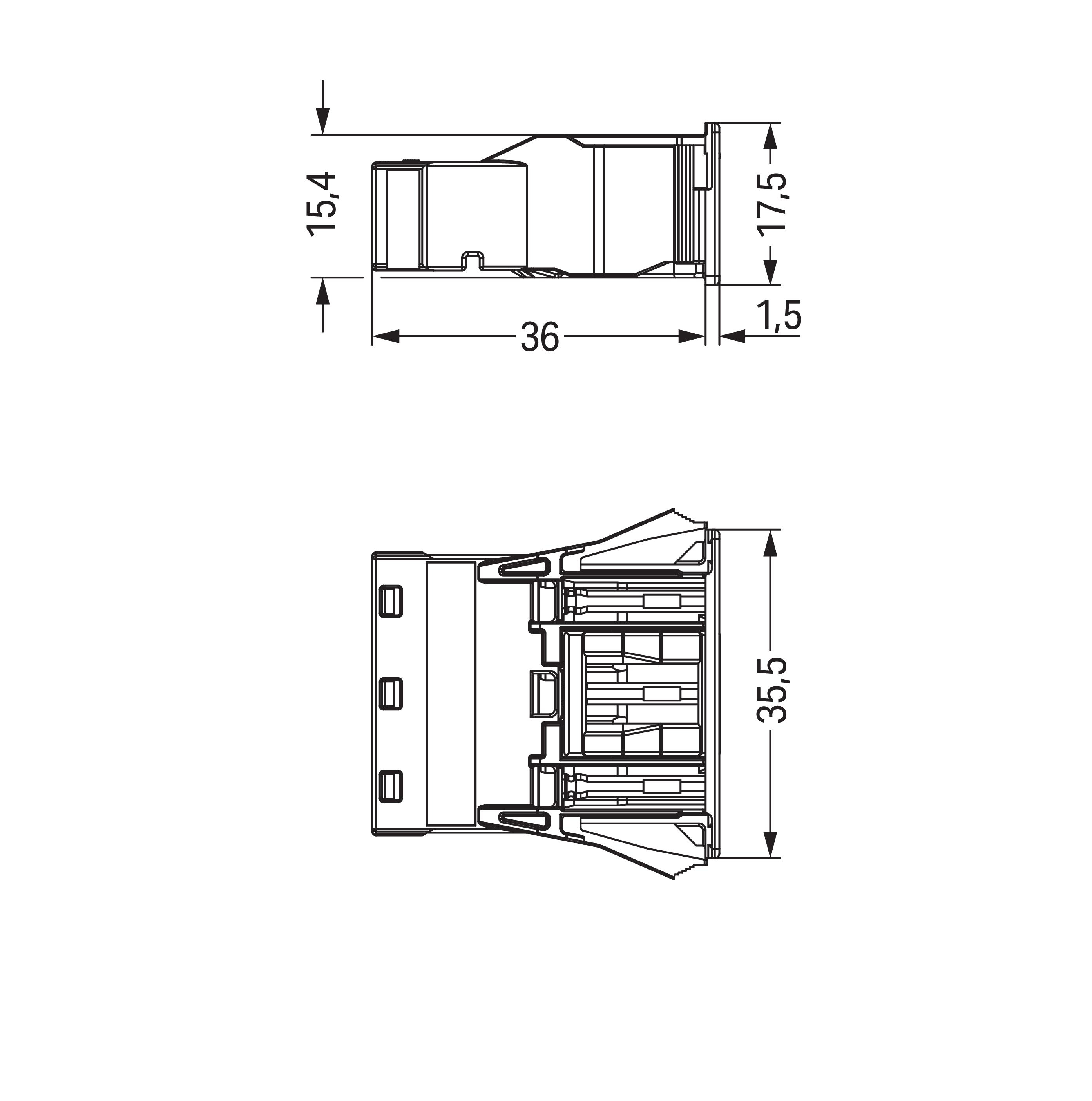

Length: | 37.5 mm |
Rated voltage: | 250 V |
Width: | 35.5 mm |
Angle of inclination: | 0 - 0 ° |
Height: | 17.5 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Connection size thread: | No thread connection |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.5 - 4 mm² |
Mechanical coding: | yes |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Pole codification: | L, N, PE |
Colour of the separate adapter piece: | Without adapter piece |
Insert direction: | Straight |
Built-in version: | Snap-in/screw-in device |
Connection cross section (fine-strand): | 0.5 - 4 mm² |
