Gniazdo 5-bieg., różowe 890-285/080-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 890-285/080-000 |
| GTIN(EAN) | 4055143500142 |
| Price unit | piece |
| Catalog price | 27,52 zł (22,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

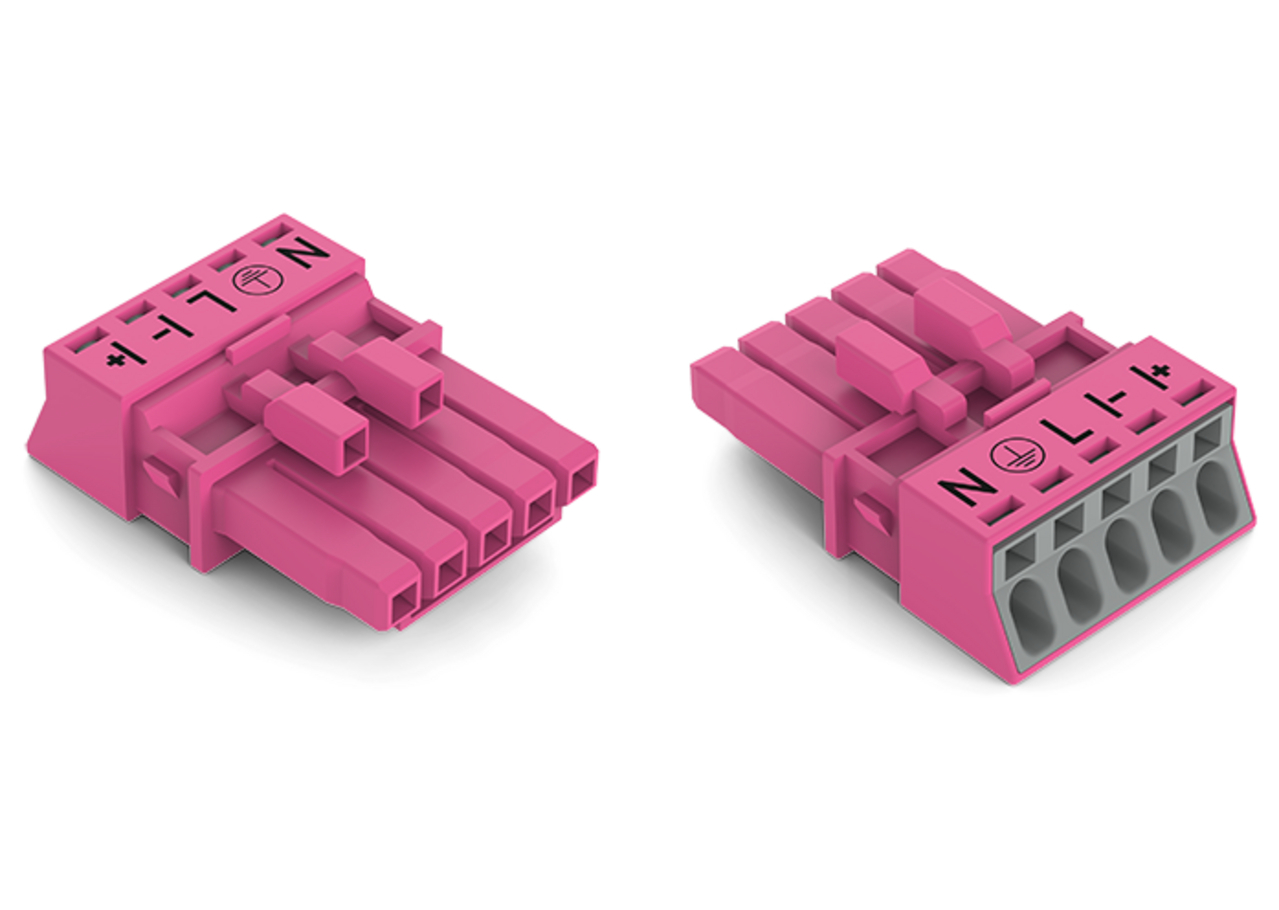

gniazdo; 5-bieg.; kodowanie B; 1,50 mm²; różowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,9 g |
| ETIM class: | Plug-in connector for plug-in building installation |
| Fire load: | 0.00667 kWh |
| Halogen free: | yes |
| Number of connections per pole: | 1 |
| Rated surge voltage: | 6 kV |
| Model: | Bus |
| Number of poles: | 5 |
| Type of locking: | Separate |
| Rated current: | 16 A |
| Rated voltage: | 400 V |

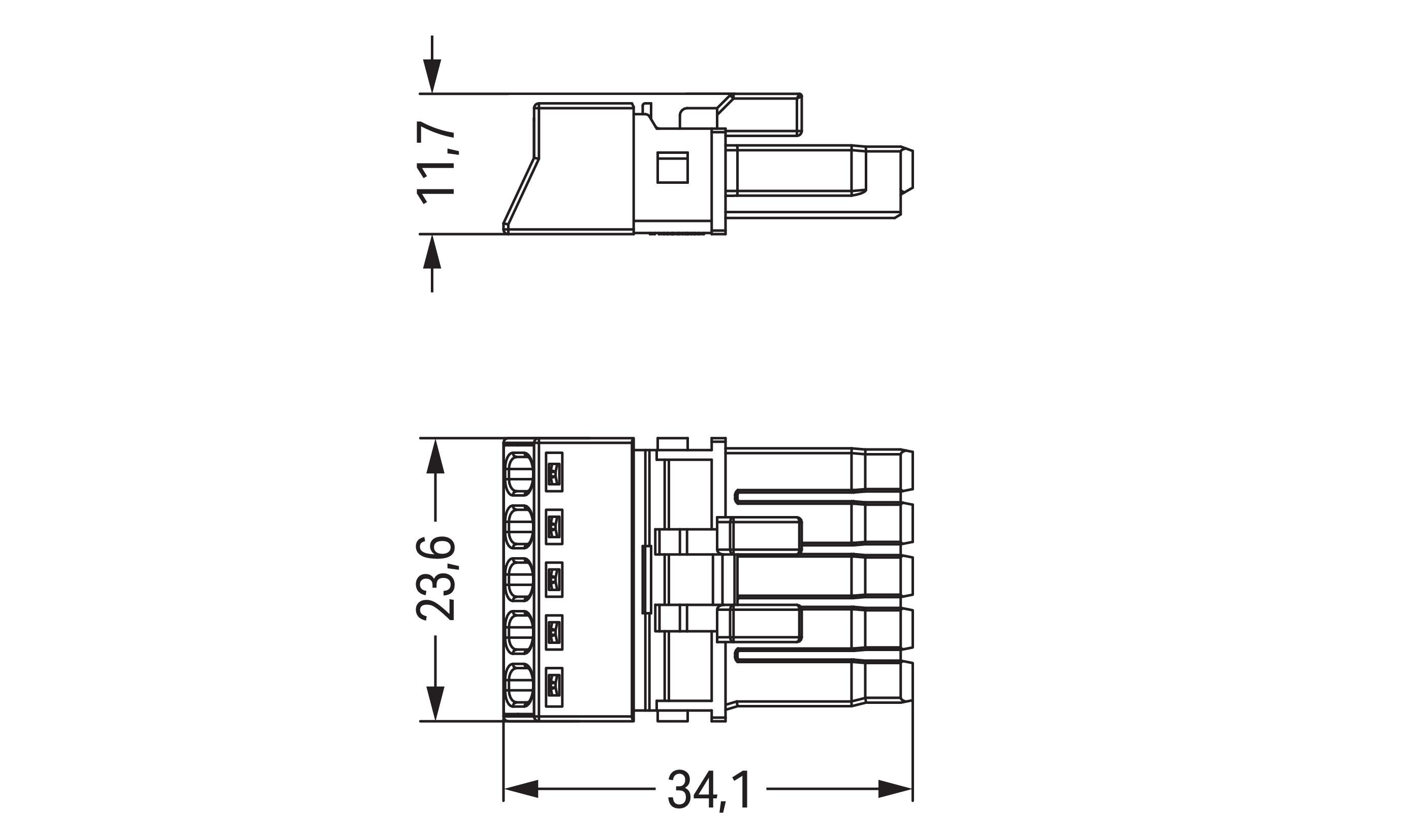

| Length: | 34.1 mm |
| Width: | 23.6 mm |
| With strain relief: | no |
| Height: | 11.7 mm |
| Connection type: | Spring clamp connection |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Housing material: | Polyamide (PA) |
| Connection cross section (solid-core): | 0.25 - 1.5 mm² |
| Surface treatment contacts: | Tinned |
| Max. continuous temperature resistance contact part: | 85 °C |
| Mechanical coding: | yes |
| Continuity resistance: | 1 mΩ |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Other |
| Pollution degree: | 3 |
| Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
