Gniazdo 3-bieg., szare 890-243/060-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-243/060-000 |
GTIN(EAN) | 4055143499880 |
Price unit | piece |
Catalog price | 15,35 zł (12,48 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 3,5 g |
ETIM class: | Plug-in connector for plug-in building installation |
Fire load: | 0.01944 kWh |
Halogen free: | yes |
Number of connections per pole: | 1 |
Rated surge voltage: | 4 kV |
Model: | Bus |
Number of poles: | 3 |
Type of locking: | Separate |
Rated current: | 16 A |
Rated voltage: | 250 V |

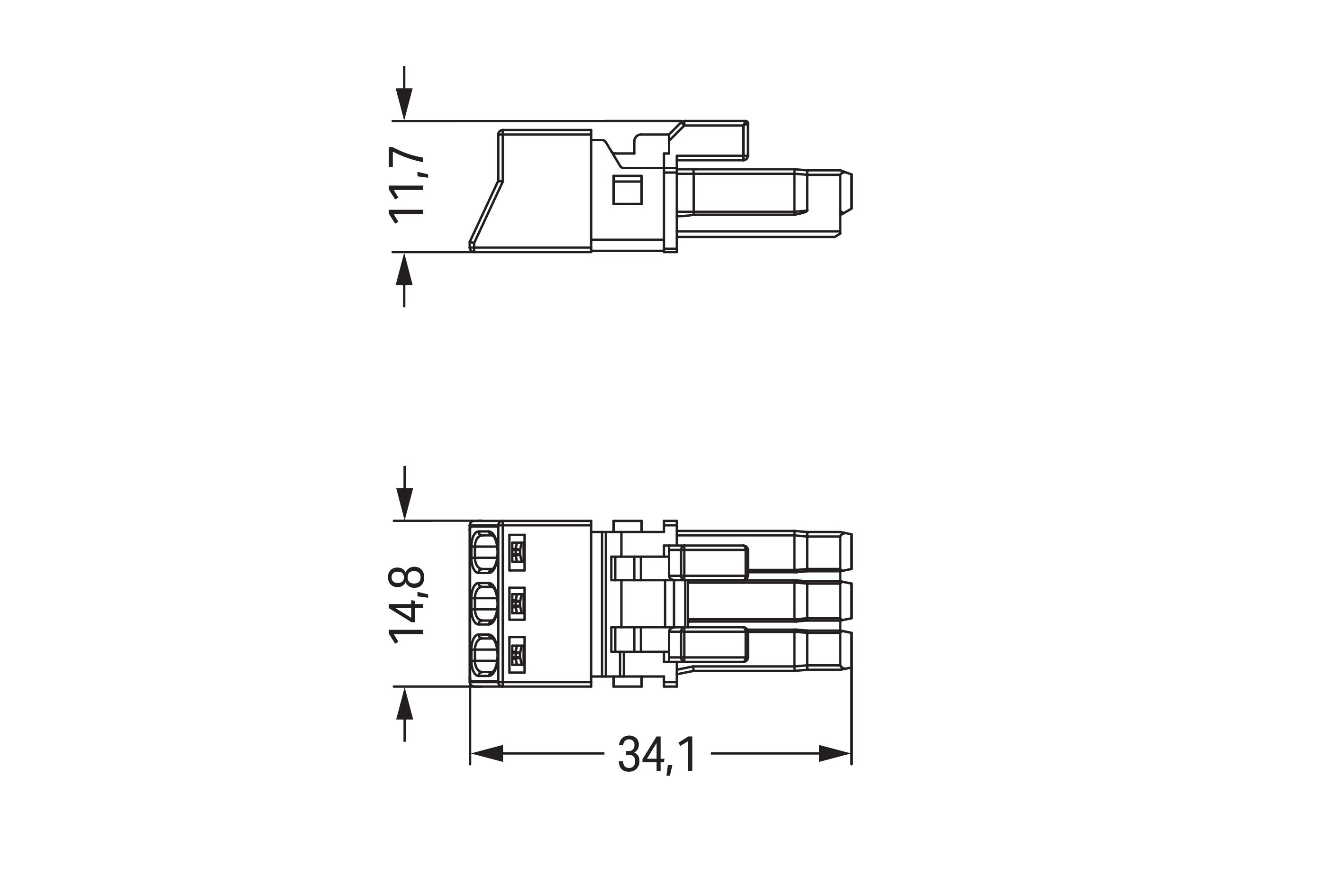

Length: | 34.1 mm |
Width: | 15 mm |
With strain relief: | no |
Height: | 11.7 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.25 - 1.5 mm² |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Mechanical coding: | yes |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Grey |
Pollution degree: | 3 |
Pole codification: | L, N, PE |
Connection cross section (fine-strand): | 0.25 - 1.5 mm² |
