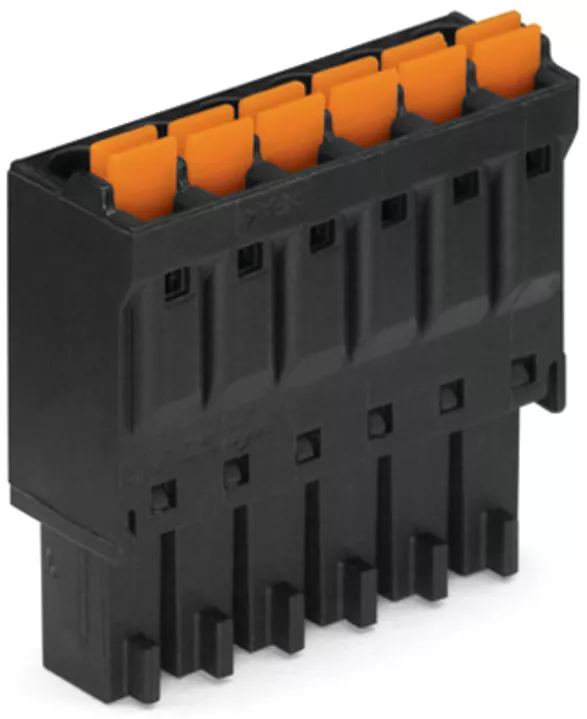

Gniazdo 1-przewodowe przycisk, czarny 714-108/000-047
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 714-108/000-047 |
| GTIN(EAN) | 4055143237048 |
| Price unit | piece |
| Catalog price | 34,32 zł (27,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 1-przewodowe; przycisk; 1,5 mm²; raster 3,5 mm; 8-bieg.; z nadrukiem bezpośrednim; 1,50 mm²; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,67 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 100 °C |
| Height: | 7.8 mm |
| Connectable conductor cross section solid-core: | 0.2 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Rated current In: | 8 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.2 - 1.5 mm² |
| Number of poles: | 8 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Black |
| Width: | 3.5 mm |
| Rated voltage: | 160 V |
| Depth: | 23 mm |
