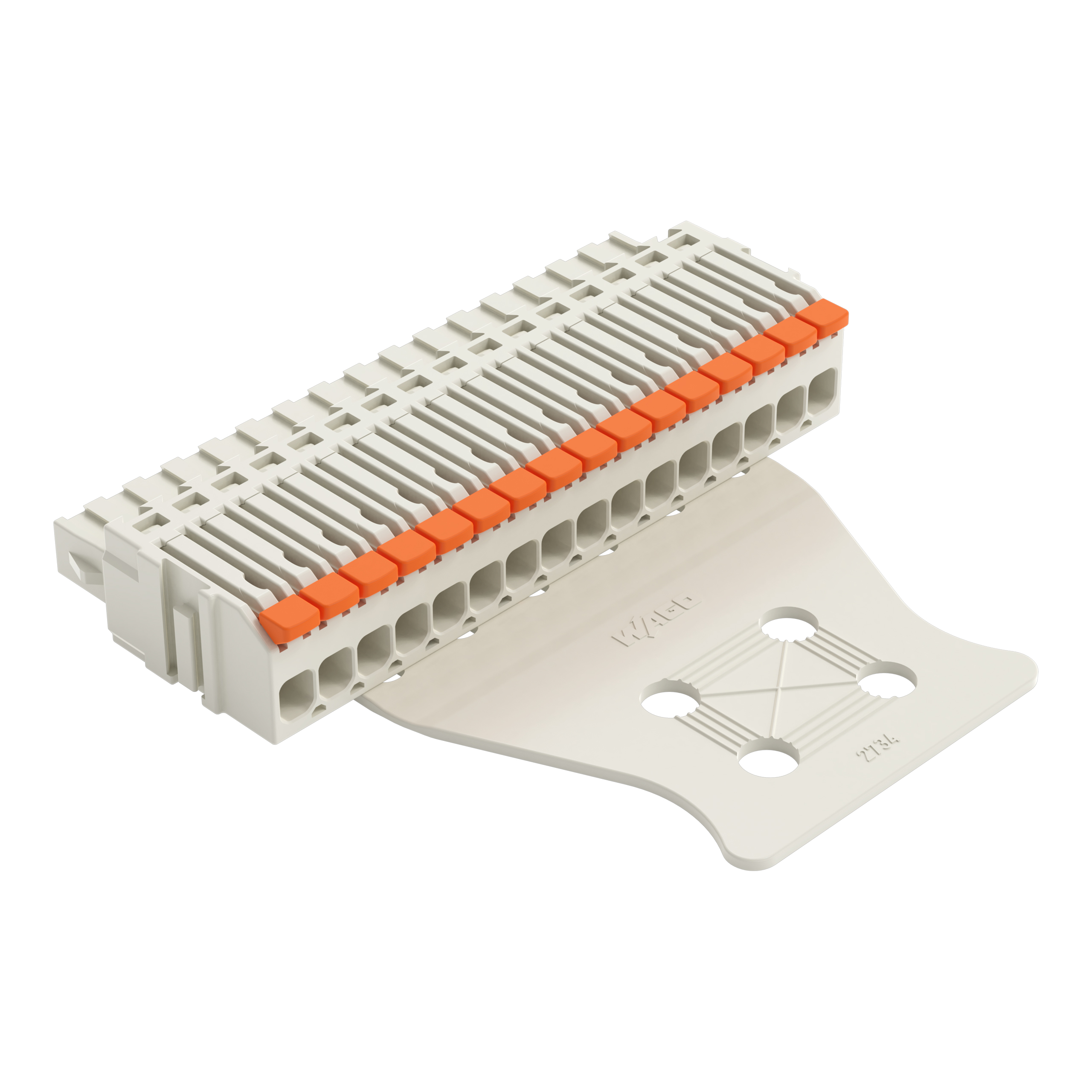

Gniazdo 1-przewodowe dźwignia Push-in CAGE CLAMP®, jasnoszary 2734-1116/327-000/336-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2734-1116/327-000/336-000 |
| GTIN(EAN) | 4066966311457 |
| Price unit | piece |
| Catalog price | 87,49 zł (71,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 1-przewodowe; dźwignia; Push-in CAGE CLAMP®; 1,5 mm²; raster 3,5 mm; 16-bieg.; 100% ochrona przed błędnym połączeniem; płytka odciążająca przewody; 1,50 mm²; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 14,44 g |
| ETIM class: | Cable connector |
| Material contact: | Other copper alloys |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 100 °C |
| Modular spacing contacts: | 3.5 mm |
| Contact type: | Bus |
| Rated current In: | 10 A |
| Housing colour: | Grey |
| Type of electric connection: | Spring clamp connection |
| Rated surge voltage: | 2.5 kV |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.2 - 1.5 mm² |
| Number of poles: | 16 |
| Pollution degree: | 2 |
| Rated voltage: | 160 V |
| Modular spacing connections: | 3.5 mm |
| Over voltage category: | III |
| Connectable conductor cross section solid-core: | 0.14 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.75 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Housing material: | Plastic |
| Number of plug-in contact rows: | 1 |
| Material of contact surface: | Tin |
| Connectable cable type: | Tubular cable |
| Type of connection: | Printed circuit board to cable |
| Degree of protection (IP), mounted: | IP20 |
| With protective conductor: | no |
| Angle contact/conductor connection: | 180° (horizontal) |
