Gniazda do złączek listwowych Piny 0,6 x 1 mm konstrukcja prosta, szara 232-136/005-000/039-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 232-136/005-000/039-000 |
| GTIN(EAN) | 4044918570893 |
| Price unit | piece |
| Catalog price | 31,43 zł (25,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

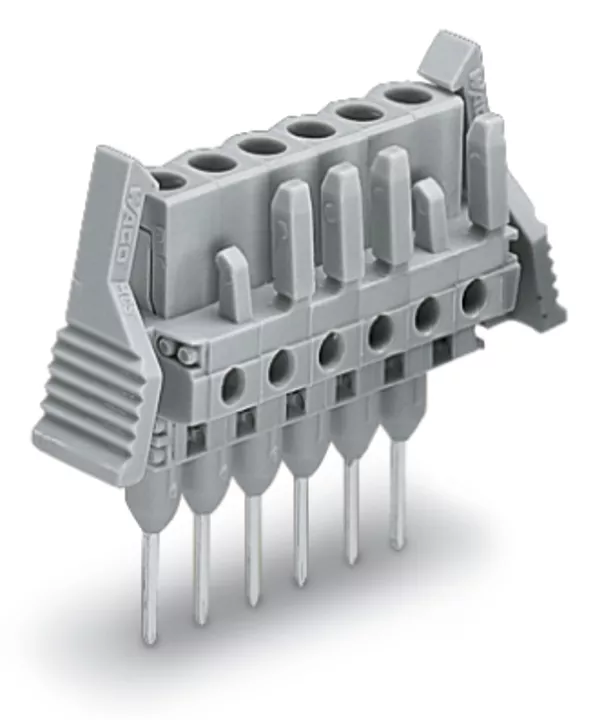

gniazdo do złączek listwowych; piny 0,6 x 1 mm; konstrukcja prosta; zaczep ryglujący; raster 5 mm; 6-bieg.; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,15 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 85 °C |
| Height: | 21.6 mm |
| Mounting method: | Other |
| Rated current In: | 12 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Number of poles: | 6 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 45.8 mm |
| Rated voltage: | 320 V |
| Depth: | 11.6 mm |
