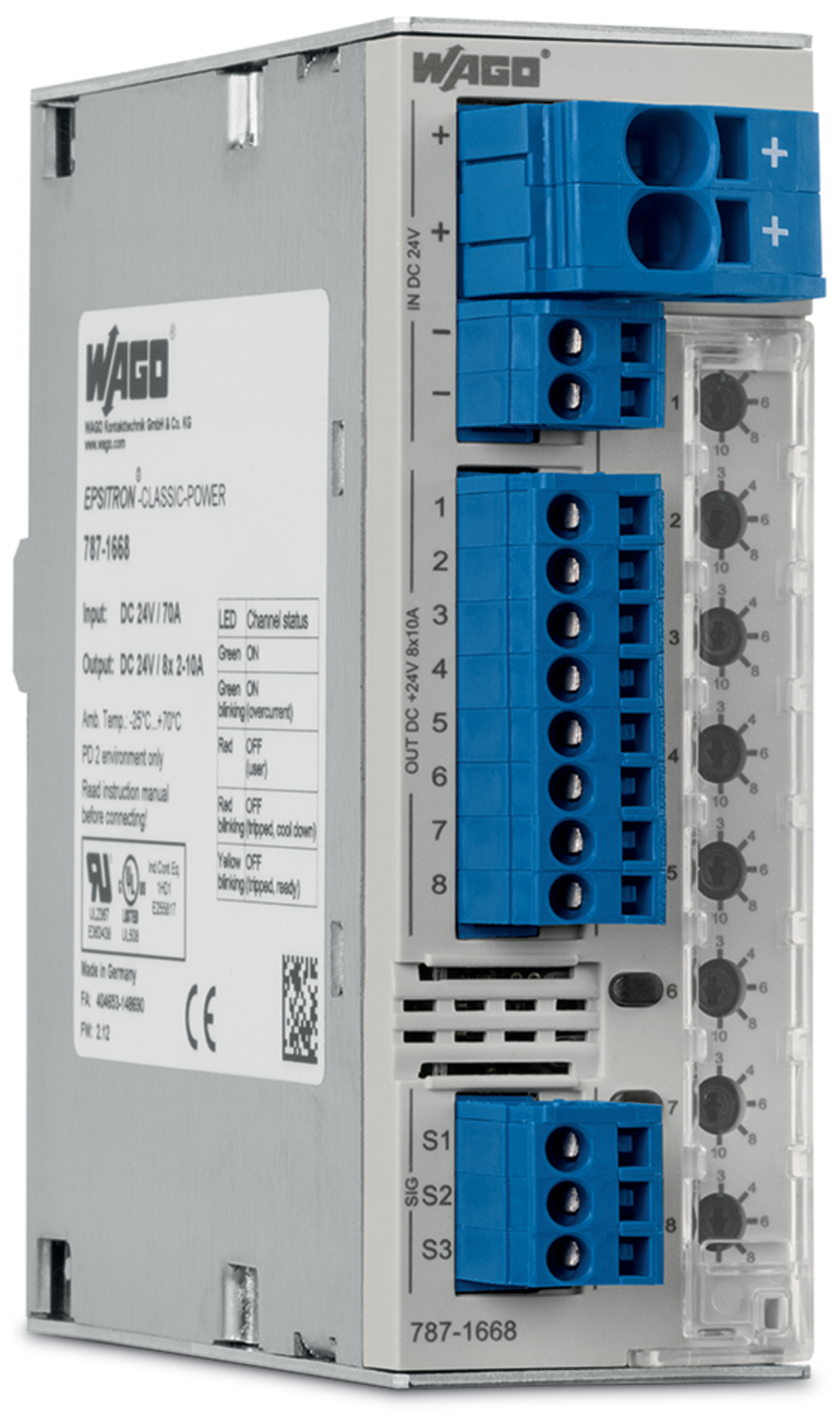

Elektroniczny wyłącznik nadprądowy 8-CH 24 V DC 787-1668/000-054
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-1668/000-054 |
| GTIN(EAN) | 4055143329590 |
| Price unit | piece |
| Catalog price | 1 066,41 zł (867,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
elektroniczny wyłącznik nadprądowy; 8-kan.; napięcie wejściowe 24 V DC; konfig. 2 … 10 A; zestyk sygnalizacyjny; konfiguracja specjalna
Additional features:
| Information | Value |
|---|---|
| Net weight: | 440 g |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Spring clamp connection |
| Rated control supply voltage DC: | 18 - 30 V |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | no |
| Contains function DC-voltage overcurrent: | no |
| Width: | 42 mm |
| Function DC-current hysteresis: | no |
| Depth: | 142.5 mm |
| External current transformer: | no |
| Height: | 127 mm |
| Voltage type for actuating: | DC |
| Single-phase under current possible: | no |
| Three-phase under current possible: | no |
| Single-phase overcurrent possible: | yes |
| Three-phase overcurrent possible: | no |
| Contains function DC-voltage under current: | no |
| With detachable clamps: | yes |
| Number of contacts as normally open contact: | 0 |
| Current measuring range: | 2 - 10 A |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
