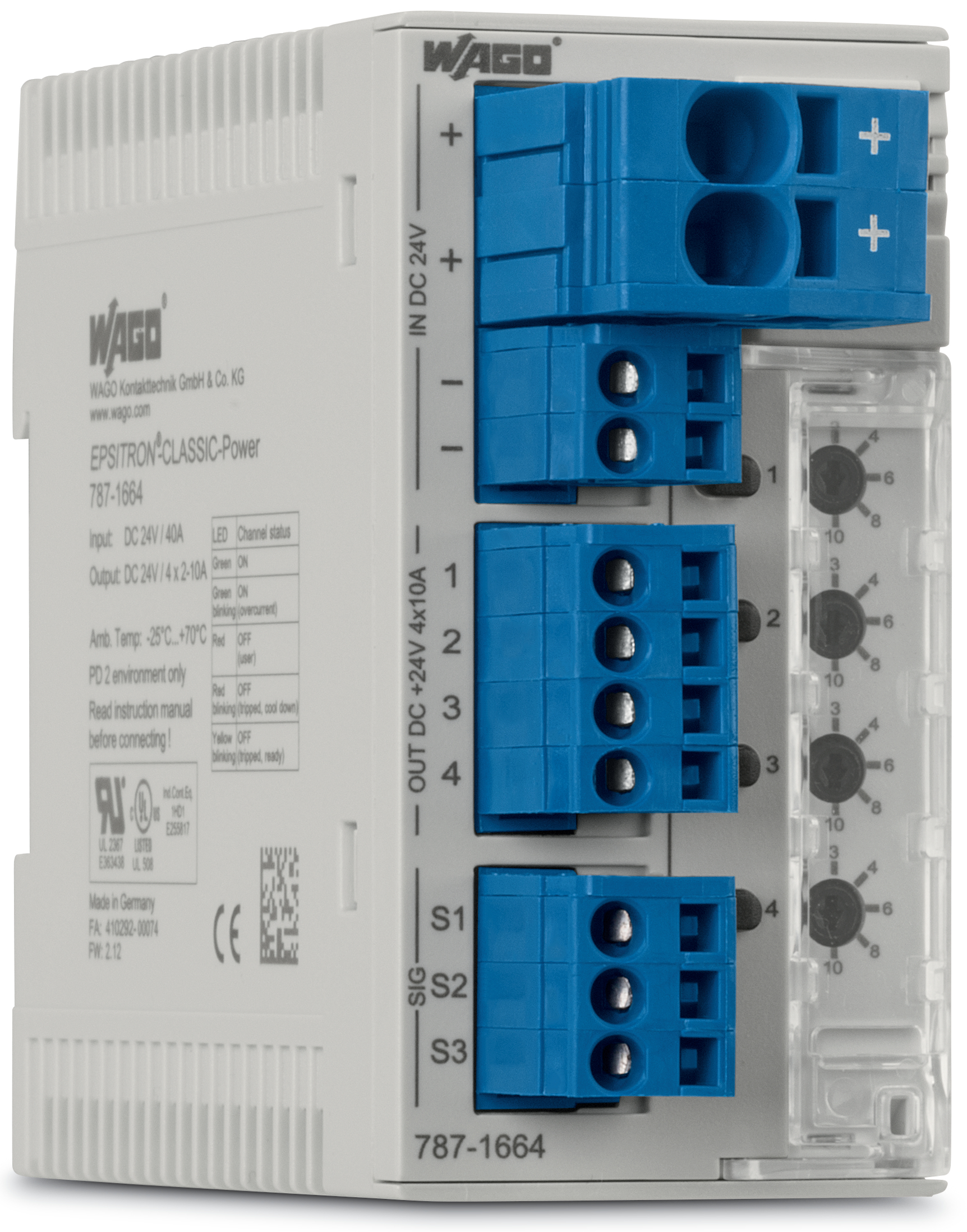

Elektroniczny wyłącznik nadprądowy 4-CH 24 V DC 787-1664/000-054
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 787-1664/000-054 |
GTIN(EAN) | 4055143318860 |
Price unit | piece |
Catalog price | 639,85 zł (520,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
elektroniczny wyłącznik nadprądowy; 4-kanałowy; napięcie wejściowe 24 V DC; konfig. 2 … 10 A; zestyk sygnalizacyjny; konfiguracja specjalna
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
ETIM class: | Current monitoring relay |
Type of electric connection: | Spring clamp connection |
Rated control supply voltage DC: | 18 - 30 V |
Single-phase hysteresis possible: | no |
Three-phase hysteresis possible: | no |
Contains function DC-voltage overcurrent: | yes |

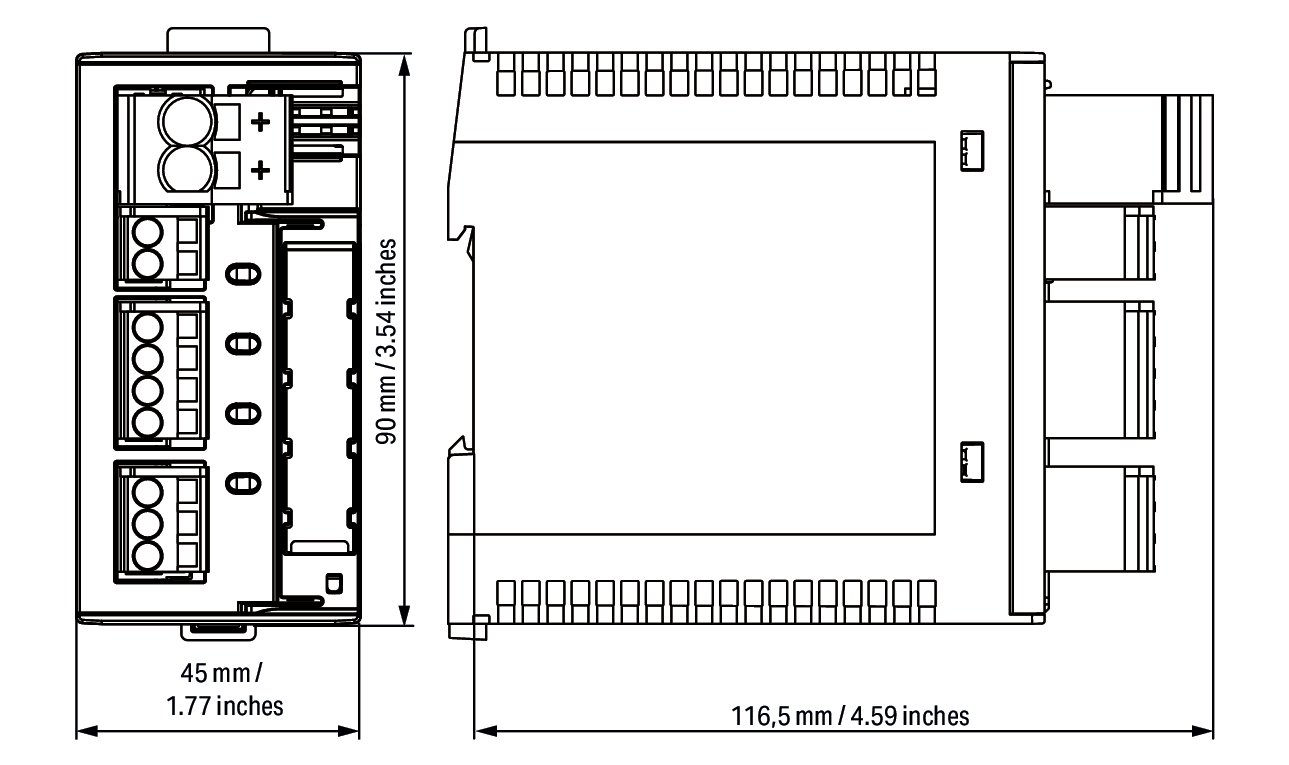

Width: | 45 mm |
Function DC-current hysteresis: | no |
Depth: | 115.5 mm |
External current transformer: | no |
Height: | 90 mm |
Voltage type for actuating: | DC |
Single-phase under current possible: | no |
Three-phase under current possible: | no |
Single-phase overcurrent possible: | yes |
Three-phase overcurrent possible: | no |
Contains function DC-voltage under current: | no |
With detachable clamps: | yes |
Number of contacts as normally open contact: | 0 |
Current measuring range: | 2 - 10 A |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally closed contact: | 0 |
