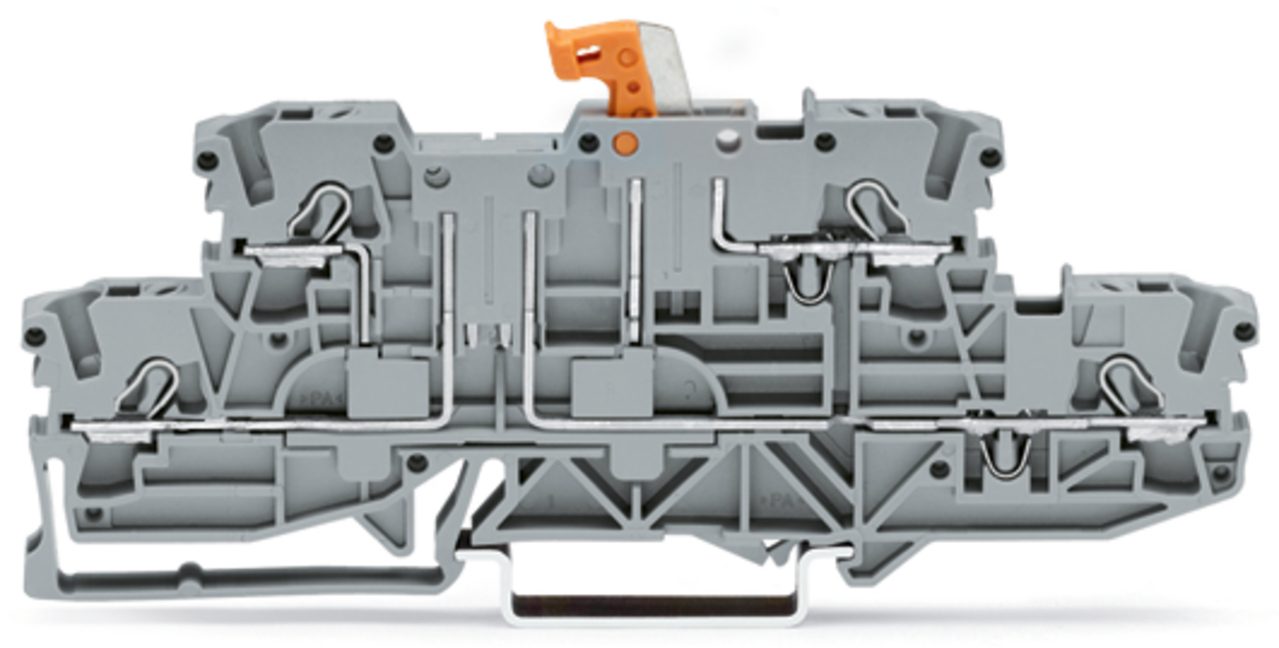

Dwupiętrowa złączka rozłączalna z uchylnym łącznikiem nożowym, szara 2002-2971
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2002-2971 |
GTIN(EAN) | 4050821006817 |
Price unit | piece |
Catalog price | 70,98 zł (57,71 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 17,35 g |
ETIM class: | (Knife) disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Rated current In: | 16 A |
Height: | 108 mm |
Number of levels: | 2 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 400 V |
Depth: | 42 mm |
With integrated test socket: | no |
Type of slitting: | None |
Type of cross disconnection: | None |
Buy online
Buy / order
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:04:01 |
Files to download: | |
External links: |
