Skrzynka rozdzielcza 230 V + SMI, czarny
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 899-631/405-000 |
| GTIN(EAN) | 4055143305815 |
| Price unit | piece |
| Catalog price | 495,94 zł (403,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

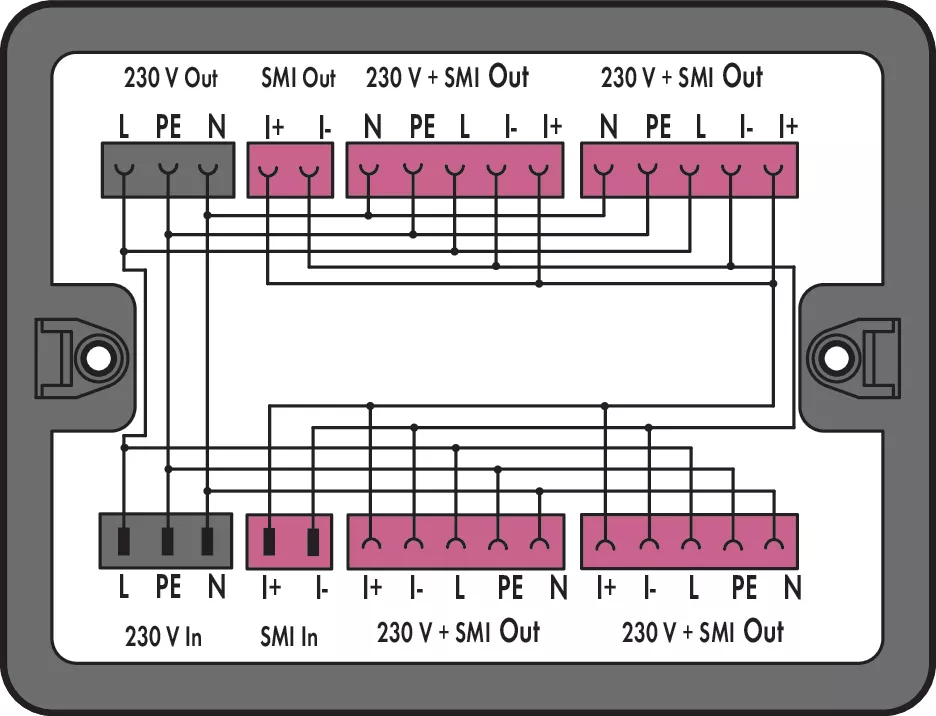

skrzynka rozdzielcza; 230 V + SMI; 2 wejścia; 6 wyjść; kodowanie A, B; MINI, MIDI; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 450 g |
| ETIM class: | Compact distributor for plug-in building installation |
| Fire load: | 22.665 kWh |
| Halogen free: | yes |
| Rated surge voltage: | 4 kV |
| Type of integrated switching: | None |
| Type of locking: | Integrated in plug-in connector |
| Rated current: | 25 A |
| Rated voltage: | 250 V |

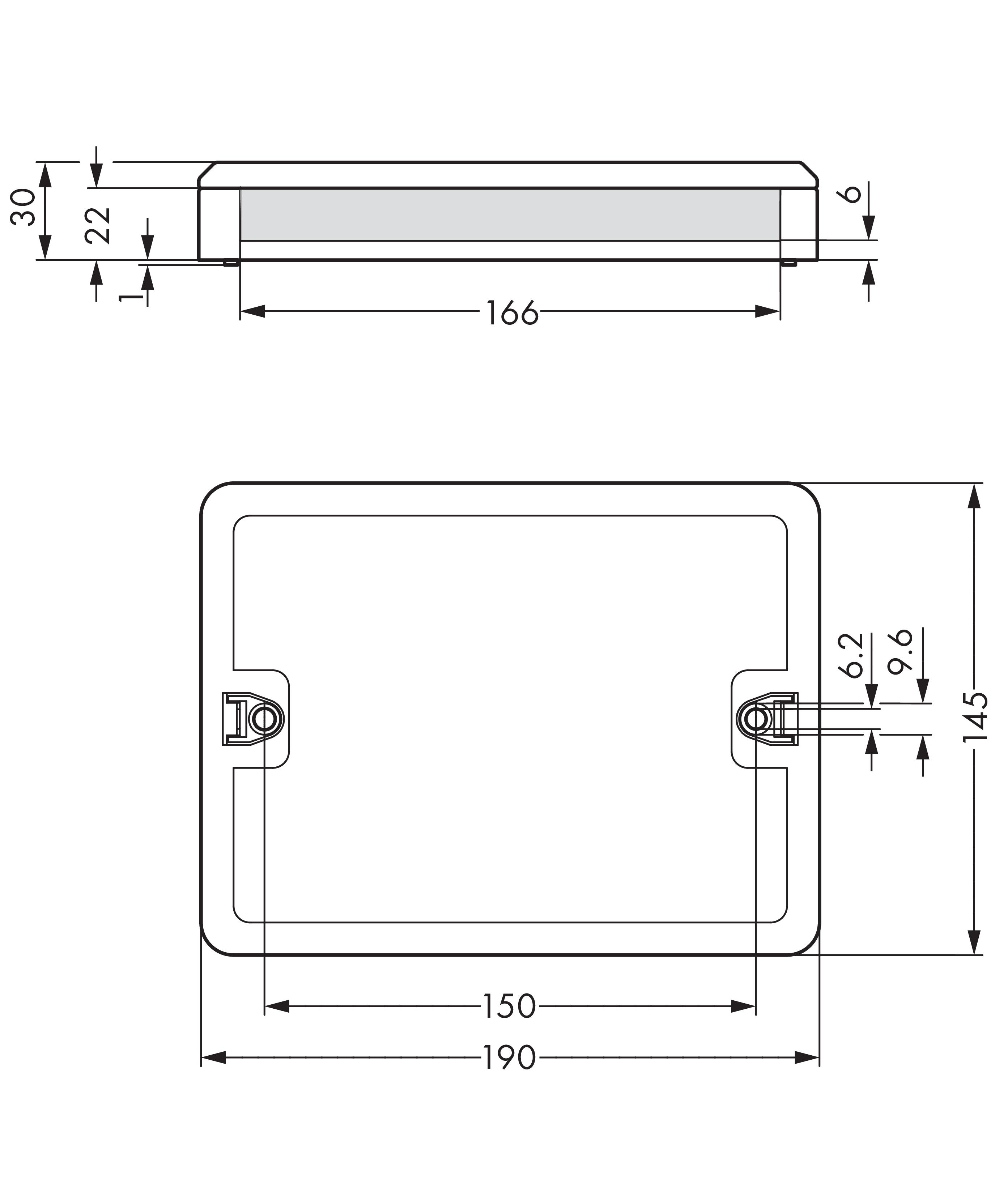

| Width: | 145 mm |
| Length: | 190 mm |
| Type of distributor: | Distribution terminal block |
| Mounting possibility: | With separate adapter |
| Number of inputs: | 2 |
| Height: | 30 mm |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | Other |
| Rated current to luminaire: | 25 A |
| Housing material: | Polyamide (PA) |
| Mechanical coding: | yes |
| Max. continuous temperature resistance contact part: | 85 °C |
| Surface treatment contacts: | Tinned |
| Continuity resistance: | 1 mΩ |
| Number of outputs: | 6 |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Multi-coloured |
| Pollution degree: | 3 |
| Colour of the separate adapter piece: | Without adapter piece |
