Skrzynka rozdzielcza 230 V + DALI, czarna
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 899-631/181-000 |
GTIN(EAN) | 4055143293037 |
Price unit | piece |
Catalog price | 479,21 zł (389,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

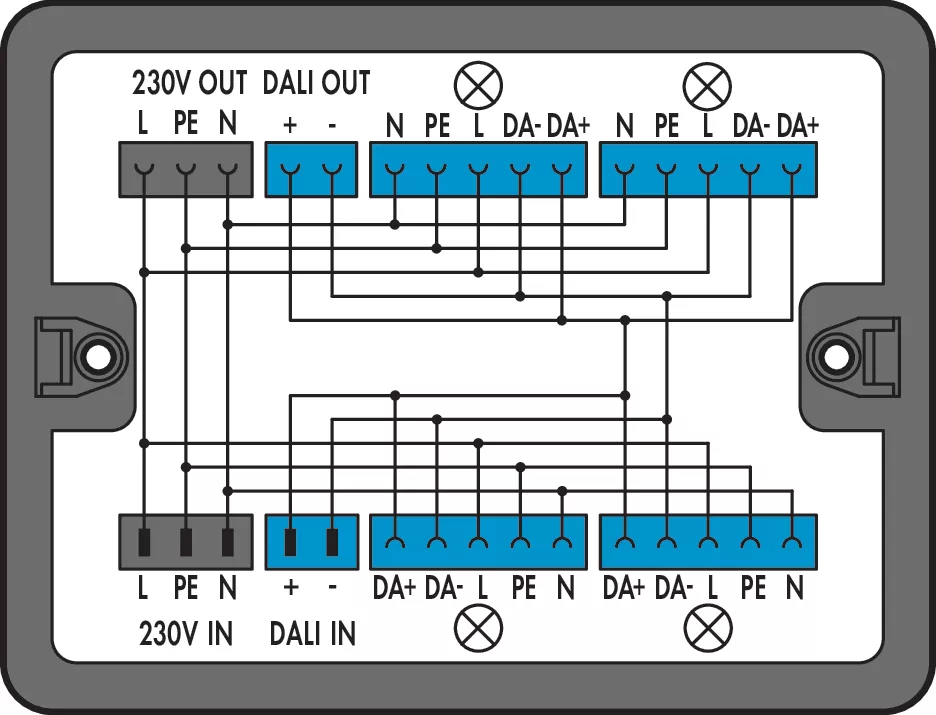

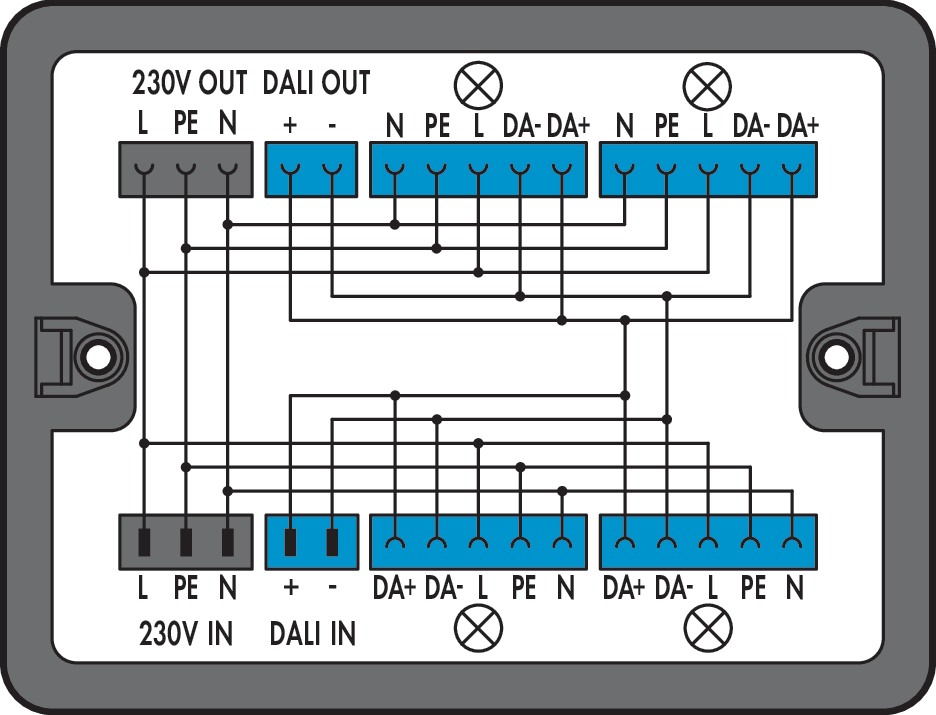

skrzynka rozdzielcza; 230 V + DALI; 2 wejścia; 6 wyjść; kodowanie A, I; MINI, MIDI; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 391,1 g |
ETIM class: | Compact distributor for plug-in building installation |
Fire load: | 21.65472 kWh |
Halogen free: | yes |
Rated surge voltage: | 4 kV |
Number of poles: | 5 |
Type of integrated switching: | None |
Type of locking: | Integrated in plug-in connector |
Rated current: | 25 A |
Rated voltage: | 250 V |

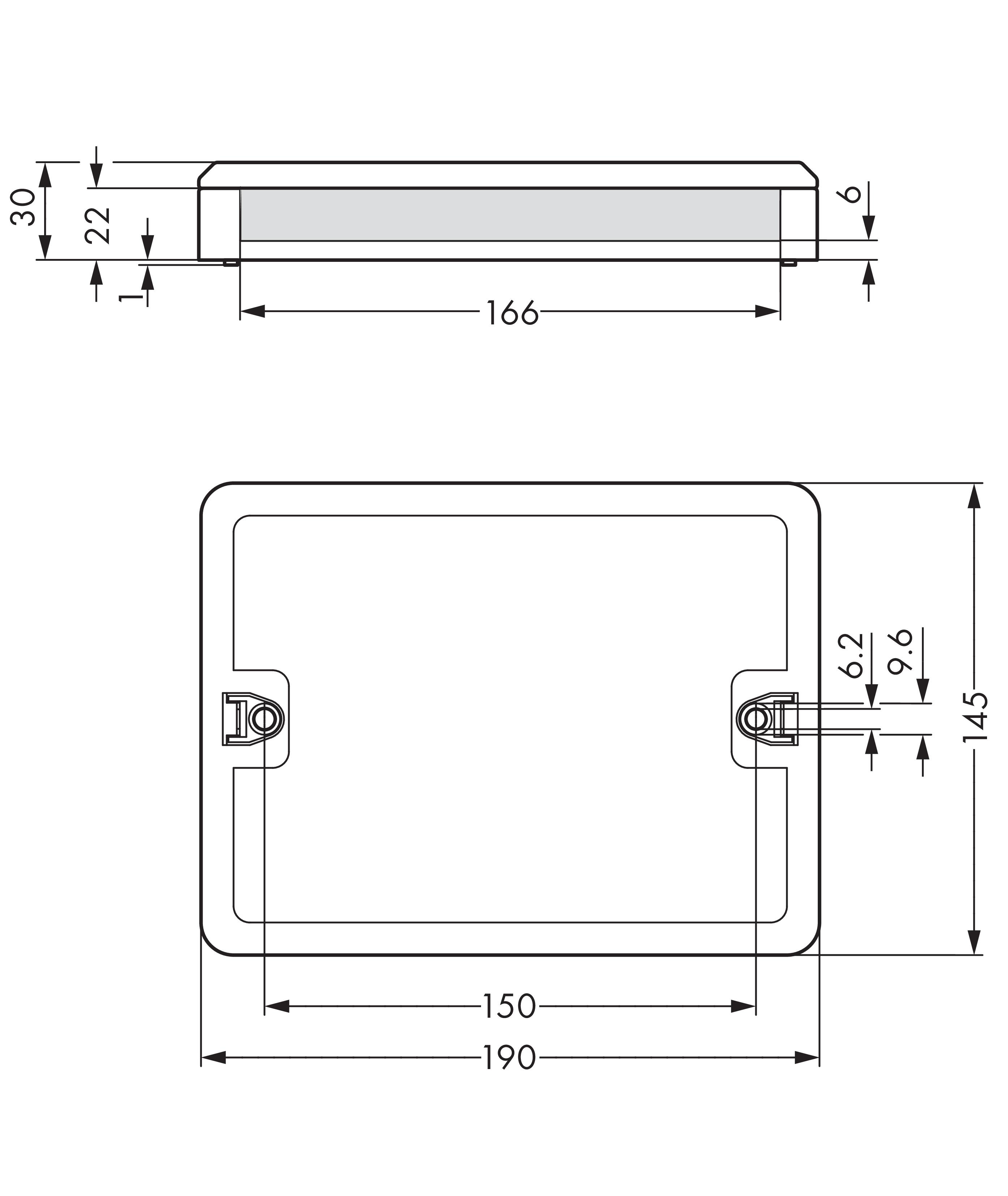

Width: | 145 mm |
Length: | 190 mm |
Type of distributor: | Distribution terminal block |
Mounting possibility: | With separate adapter |
Number of inputs: | 2 |
Height: | 30 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | Other |
Rated current to luminaire: | 25 A |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Max. continuous temperature resistance contact part: | 85 °C |
Surface treatment contacts: | Tinned |
Continuity resistance: | 1 mΩ |
Number of outputs: | 6 |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Colour of the separate adapter piece: | Without adapter piece |
