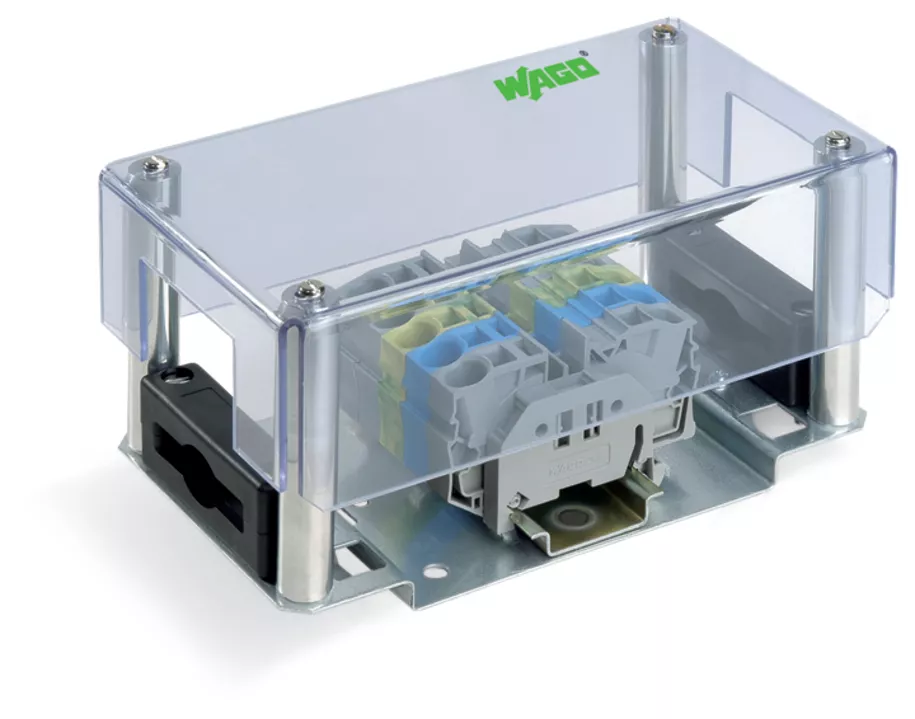

Moduł zasilający do płaskiego przewodu 5 x 10 mm², transparentny
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 895-1051 |
| GTIN(EAN) | 4045454006259 |
| Price unit | piece |
| Catalog price | 797,41 zł (648,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
moduł zasilający; do przewodu płaskiego; 5 x 10 mm²; 5-bieg.; transparentny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 450 g |
| ETIM class: | Flat cable adapter for plug-in building installation |
| Fire load: | 0.54444 kWh |
| Halogen free: | no |
| Housing colour: | Other |
| Model: | Power supply system |
| Number of poles: | 5 |
| Type of integrated switching: | None |
| Transparent: | no |
| Type of locking: | None |
| Rated current: | 57 A |
| Rated voltage: | 750 V |

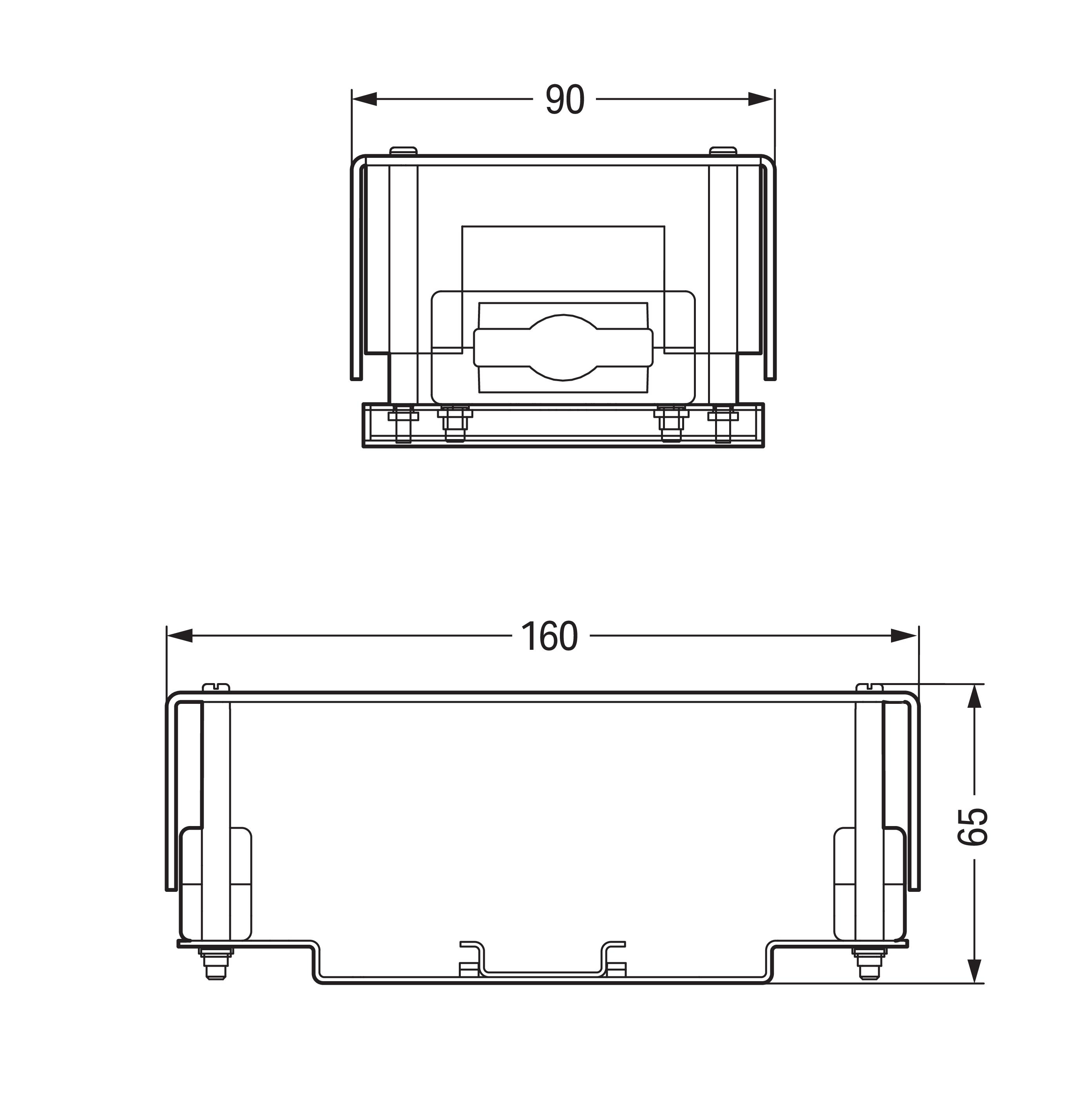

| Width: | 90 mm |
| Length: | 160 mm |
| Height: | 65 mm |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Housing material: | Polyamide (PA) |
| Max. continuous temperature resistance contact part: | 85 °C |
| Mechanical coding: | no |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Other |
| Connection round cable: | Spring clamp connection |
