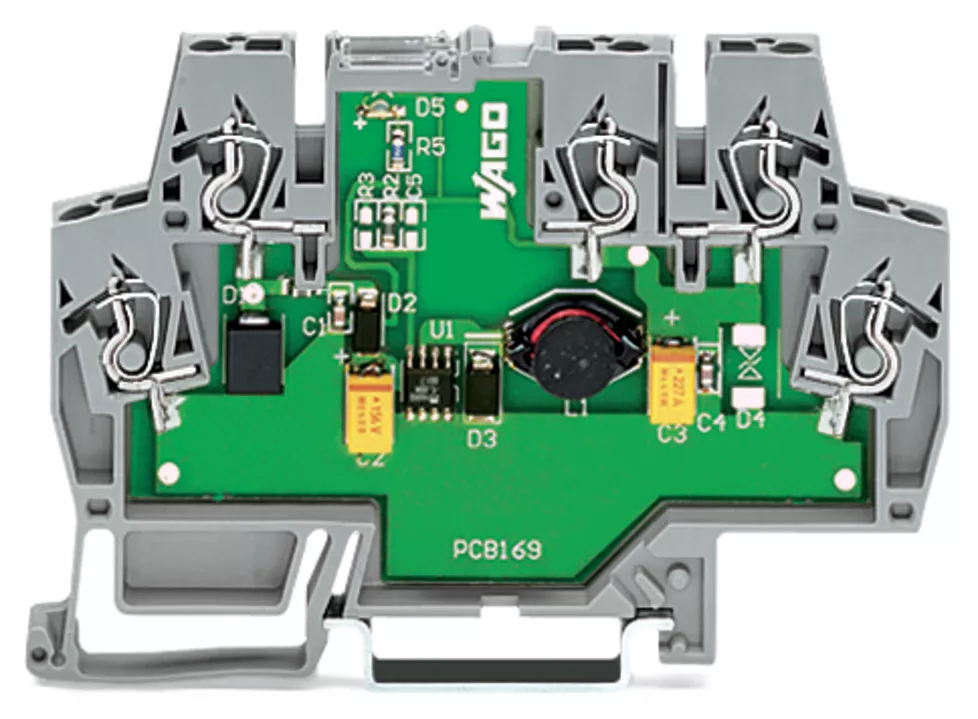

Przetwornik DC/DC IN DC 12V, szary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 859-804 |
GTIN(EAN) | 4050821017479 |
Price unit | piece |
Catalog price | 247,23 zł (201,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

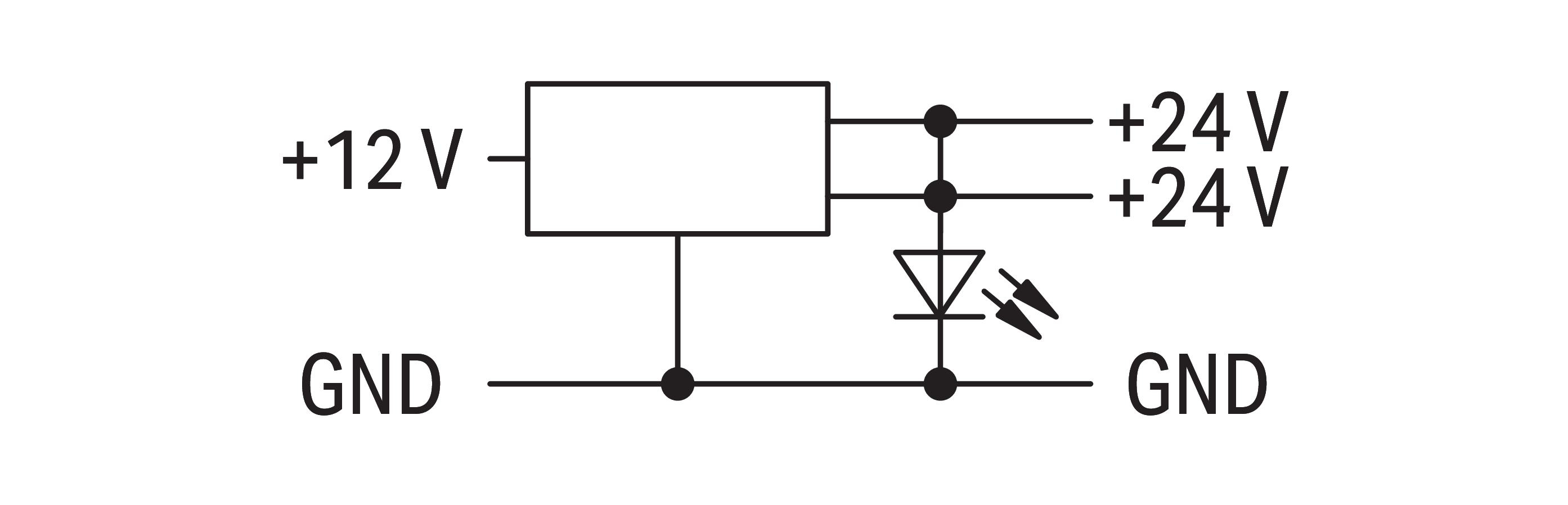

przetwornica DC/DC; napięcie wejściowe 12 V DC; napięcie wyjściowe 24 V DC; prąd wyjściowy 0,25 A; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 28,75 g |
ETIM class: | DC-power supply |

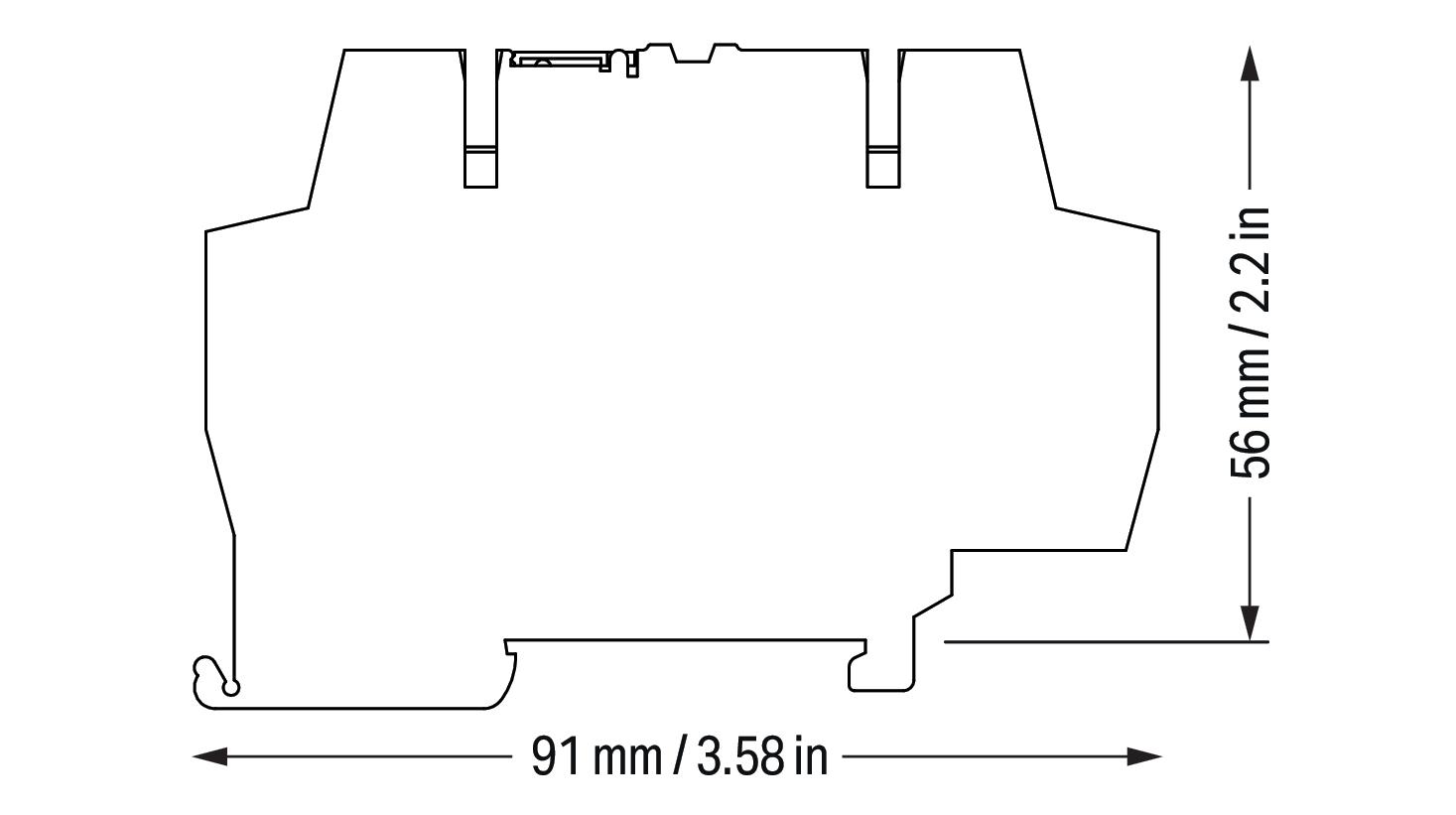

Built-in height: | 56 mm |
Type of electric connection: | Spring clamp connection |
1st secondary output voltage: | 24 - 24 V |
Short-circuit-proof: | no |
Width: | 6 mm |
Depth: | 91 mm |
Rail mounting possible: | yes |
Wall mounting possible: | no |
Suitable for safety functions: | no |
Output voltage stabilized: | yes |
Height: | 91 mm |
Modular version: | yes |
Nominal value output current 1: | 0.25 A |
Max. output current 1: | 0.25 A |
Rated supply voltage DC: | 8 - 16 V |
Degree of protection (IP): | IP20 |
Secondary voltage adjustable: | no |
Stabilized: | yes |
Voltage type (supply voltage): | DC |
Nominal value output voltage 1: | 12 V |
Direct mounting possible: | no |
Width in number of modular spacings: | 0.33 |
