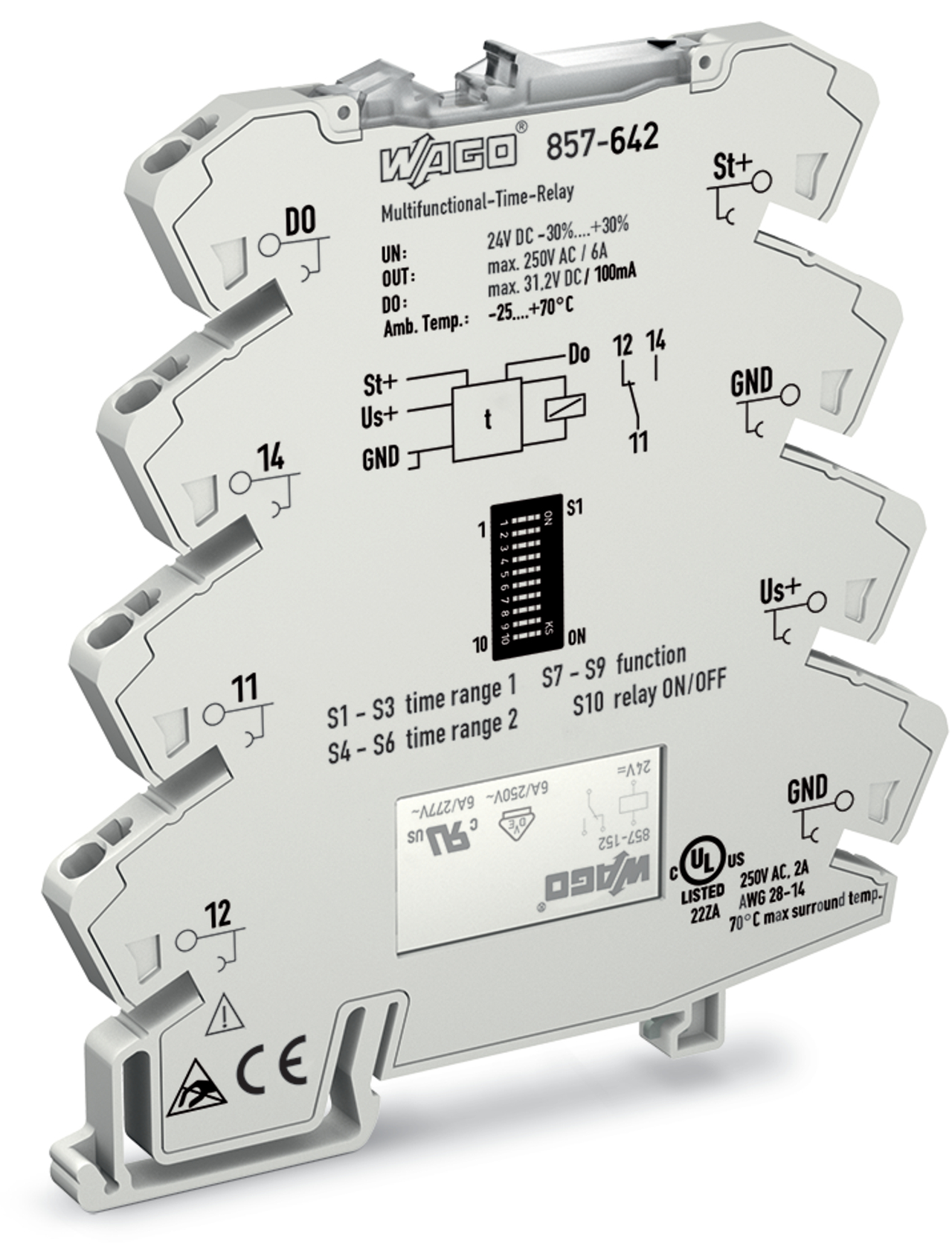

Wielofunkcyjny przekaźnik czasowy 1u 8 zakresów czasowych 7 zakresów funkcyjnych
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 857-642 |
| GTIN(EAN) | 4050821565710 |
| Price unit | piece |
| Catalog price | 415,99 zł (338,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
moduł przekaźnika czasowego; znamionowe napięcie wejściowe 24 V DC; maksymalny prąd długotrwały 6 A; kolejnictwo; wielofunkcyjny/wiele zakresów czasowych; sygnalizacja statusu żółta; szerokość 6 mm
Additional features:
| Information | Value |
|---|---|
| Net weight: | 52 g |
| ETIM class: | Timer relay |
| Time range: | 0.1 - 360000 s |
| Outputs, reversible delayed/undelayed: | no |
| Type of electric connection: | Spring clamp connection |
| Rated control supply voltage DC: | 24 - 24 V |
| With semiconductor output: | no |
| Number of outputs, delayed, change-over contact: | 1 |
| Function delay-on energization: | yes |

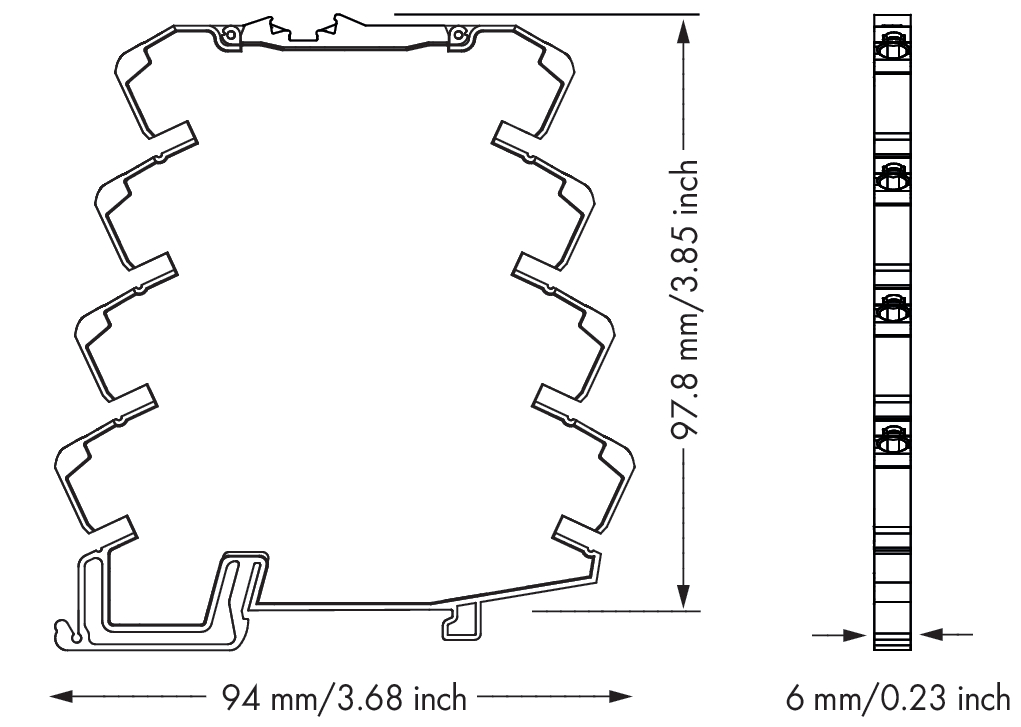

| Width: | 6 mm |
| Depth: | 97.8 mm |
| Function floating contact on energization: | yes |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Height: | 94 mm |
| Suitable for front mounting: | no |
| Function floating contact on de-energization: | yes |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Function pulse shaping: | no |
| Voltage type for actuating: | DC |
| Nominal current: | 6 A |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Pluggable on auxiliary contact block: | no |
| Clock function, starting with pause, variable: | yes |
| Clock function, starting with pulse, variable: | yes |
| Function delay on de-energization: | yes |
| Function star-delta: | no |
| With plug-in socket: | yes |
