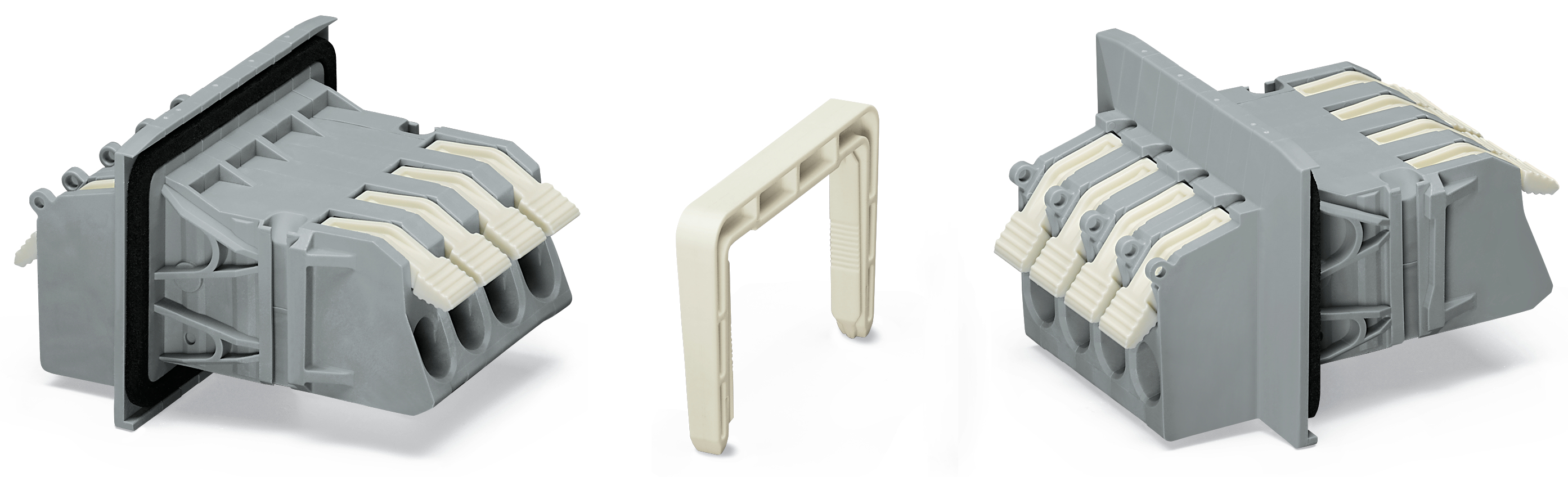

Złączka przepustowa dźwignia, szara
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 828-334 |
| GTIN(EAN) | 4050821148777 |
| Price unit | piece |
| Catalog price | 147,11 zł (119,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złącze przepustowe; dźwignia; grubość blachy 3 mm; 16 mm²; raster 11,5 mm; 4-bieg.; CAGE CLAMP®; 16,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 121,5 g |
| ETIM class: | Panel feed-through terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 105 °C |
| Thickness of mounting plate: | 3 - 3 mm |
| Rated current In: | 41 A |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 16 mm² |
| Number of poles: | 4 |
| Colour: | Grey |
| Rated voltage: | 1000 V |
| Number of clamp positions per pole: | 2 |
| Connectable conductor cross section solid-core: | 1.5 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 10 mm² |
| With integrated feed-through flange: | no |
| Mounting method: | Other |

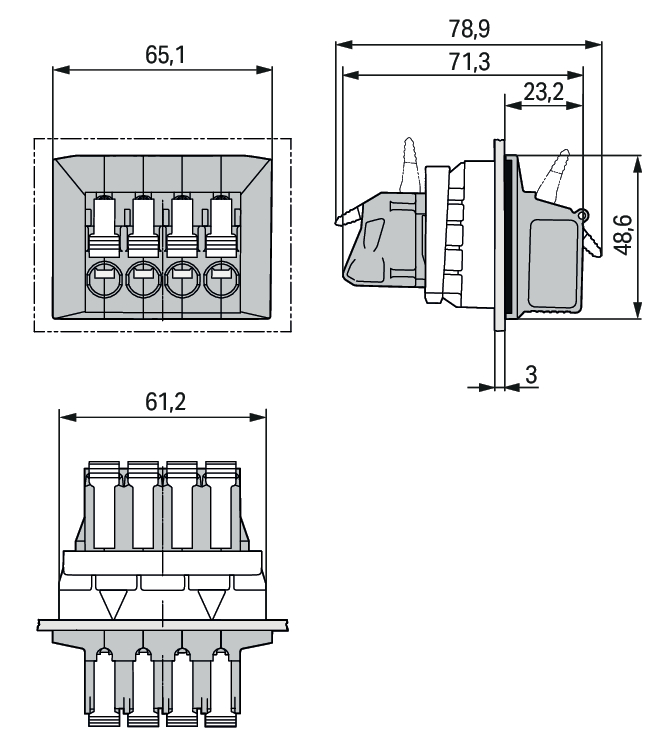

| Width/grid dimension: | 65.1 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Explosion-tested version 'Ex e': | no |
| Connection position: | Sideways |
