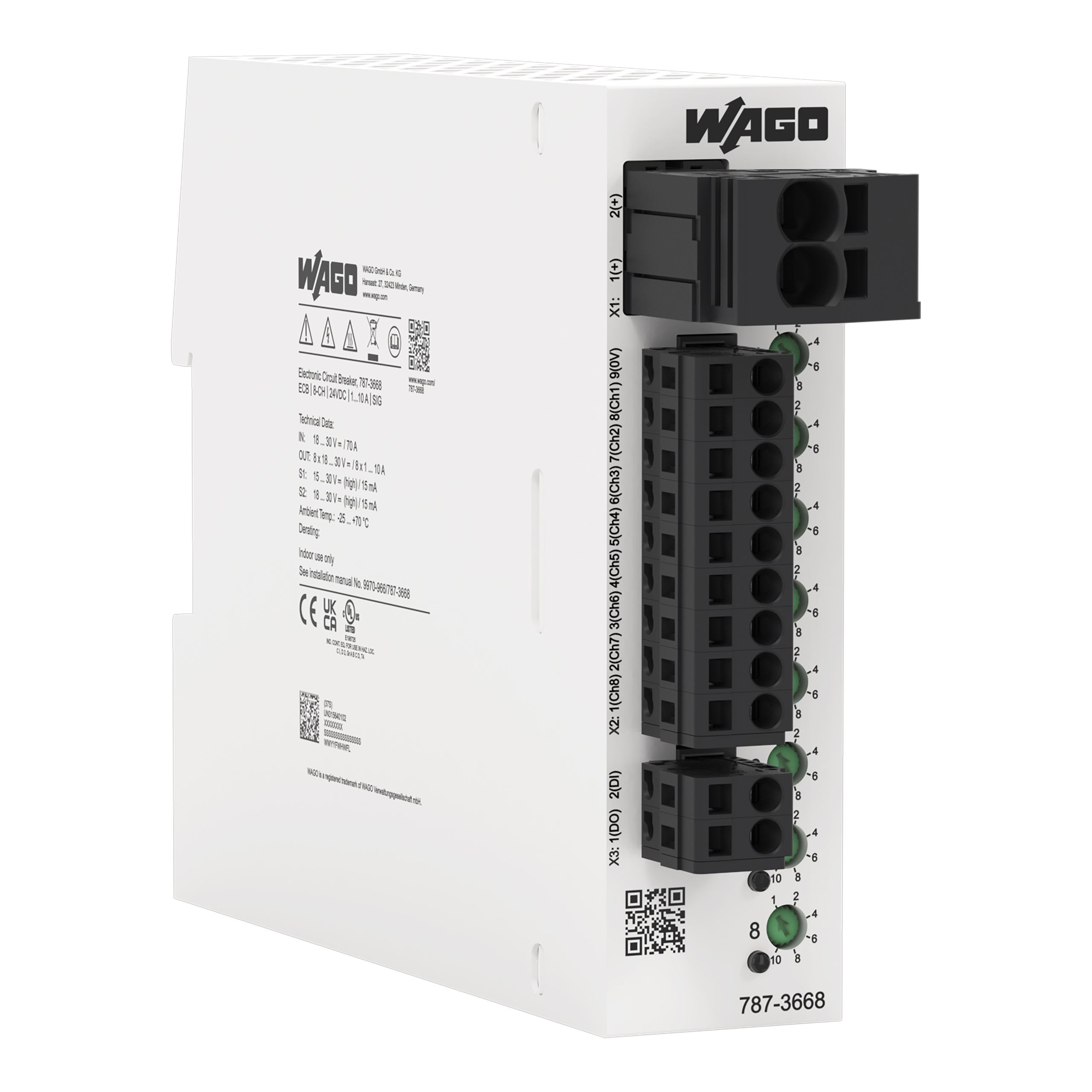

Elektroniczny wyłącznik nadprądowy 8-CH 24 V DC
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-3668 |
| GTIN(EAN) | 4066966493870 |
| Price unit | piece |
| Catalog price | 595,57 zł (484,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
elektroniczny wyłącznik nadprądowy; 8-kan.; napięcie wejściowe 24 V DC; konfig. 1 … 10 A; zestyk sygnalizacyjny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250,3 g |
| Country of origin | Indie |
| ETIM class: | Current monitoring relay |
| External current transformer: | no |
| Single-phase under current possible: | no |
| Three-phase under current possible: | no |
| Single-phase overcurrent possible: | yes |
| Three-phase overcurrent possible: | no |
| Contains function DC-voltage under current: | no |
| Single-phase hysteresis possible: | no |
| With detachable clamps: | yes |
| Three-phase hysteresis possible: | no |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Contains function DC-voltage overcurrent: | no |
| Function DC-current hysteresis: | no |
| Number of contacts as normally closed contact: | 0 |
| Depth: | 117.5 mm |
| Min. adjustable delay-on energization time: | 0.016 s |
| Current measuring range: | 1 - 10 A |
| Max. permitted delay-on energization time: | 100 s |
| Height: | 115 mm |
| Width: | 32 mm |
