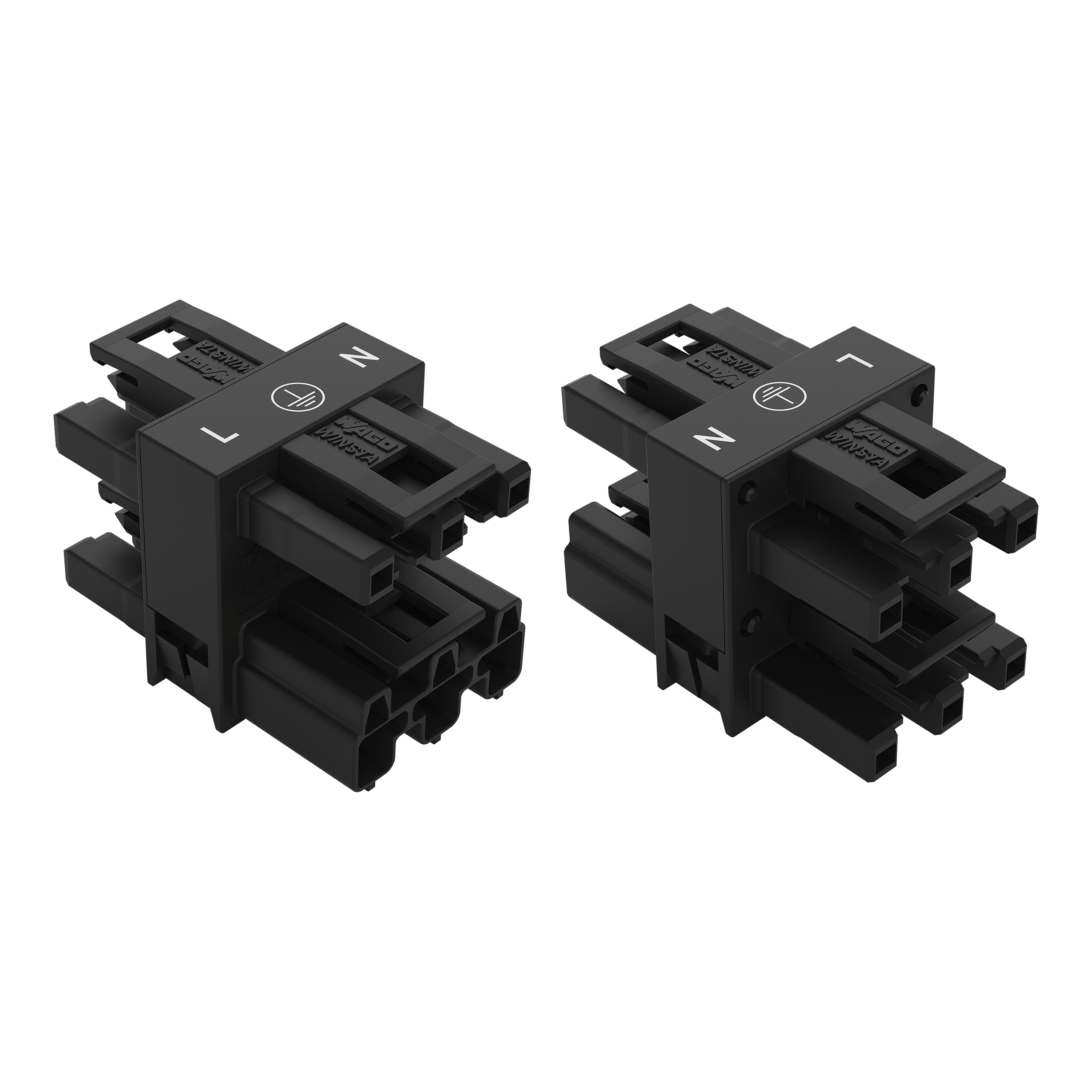

Rozgałęźnik 3-torowy 3-bieg. kodowanie A, czarny
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-607 |
GTIN(EAN) | 4045454251352 |
Price unit | piece |
Catalog price | 44,07 zł (35,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
rozgałęźnik 3-torowy; 3-bieg.; kodowanie A; 1 wejście; 3 wyjścia; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 25,1 g |
ETIM class: | Compact distributor for plug-in building installation |
Fire load: | 0.11611 kWh |
Halogen free: | yes |
Rated surge voltage: | 4 kV |
Number of poles: | 3 |
Type of integrated switching: | None |
Type of locking: | Integrated in plug-in connector |
Rated current: | 25 A |
Rated voltage: | 250 V |

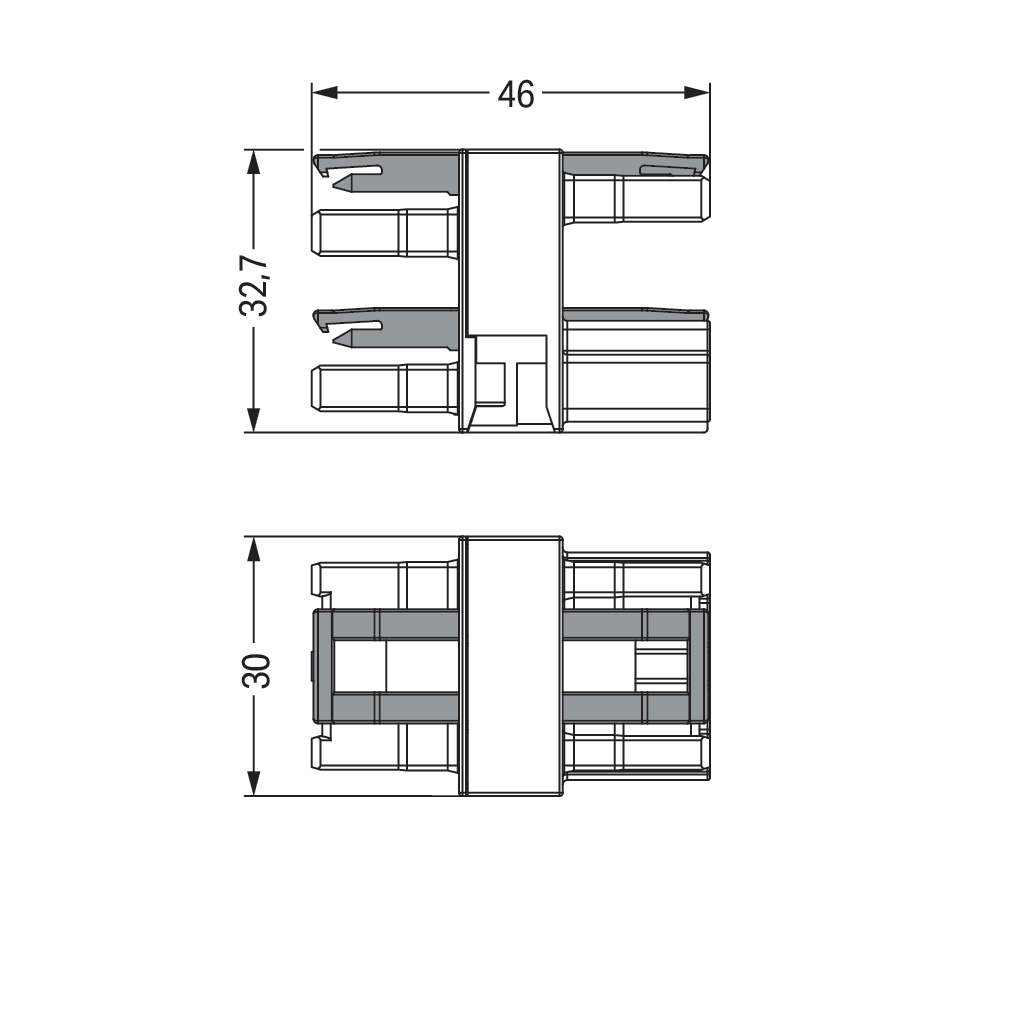

Width: | 30 mm |
Length: | 46 mm |
Type of distributor: | Distribution terminal block |
Mounting possibility: | With separate adapter |
Number of inputs: | 3 |
Height: | 32.7 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Rated current to luminaire: | 25 A |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Max. continuous temperature resistance contact part: | 85 °C |
Surface treatment contacts: | Tinned |
Continuity resistance: | 1 mΩ |
Number of outputs: | 9 |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Pole codification: | L, N, PE |
Colour of the separate adapter piece: | Without adapter piece |
