Gniazdo 3-bieg., szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-243/062-000 |
GTIN(EAN) | 4050821553243 |
Price unit | piece |
Catalog price | 18,35 zł (14,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

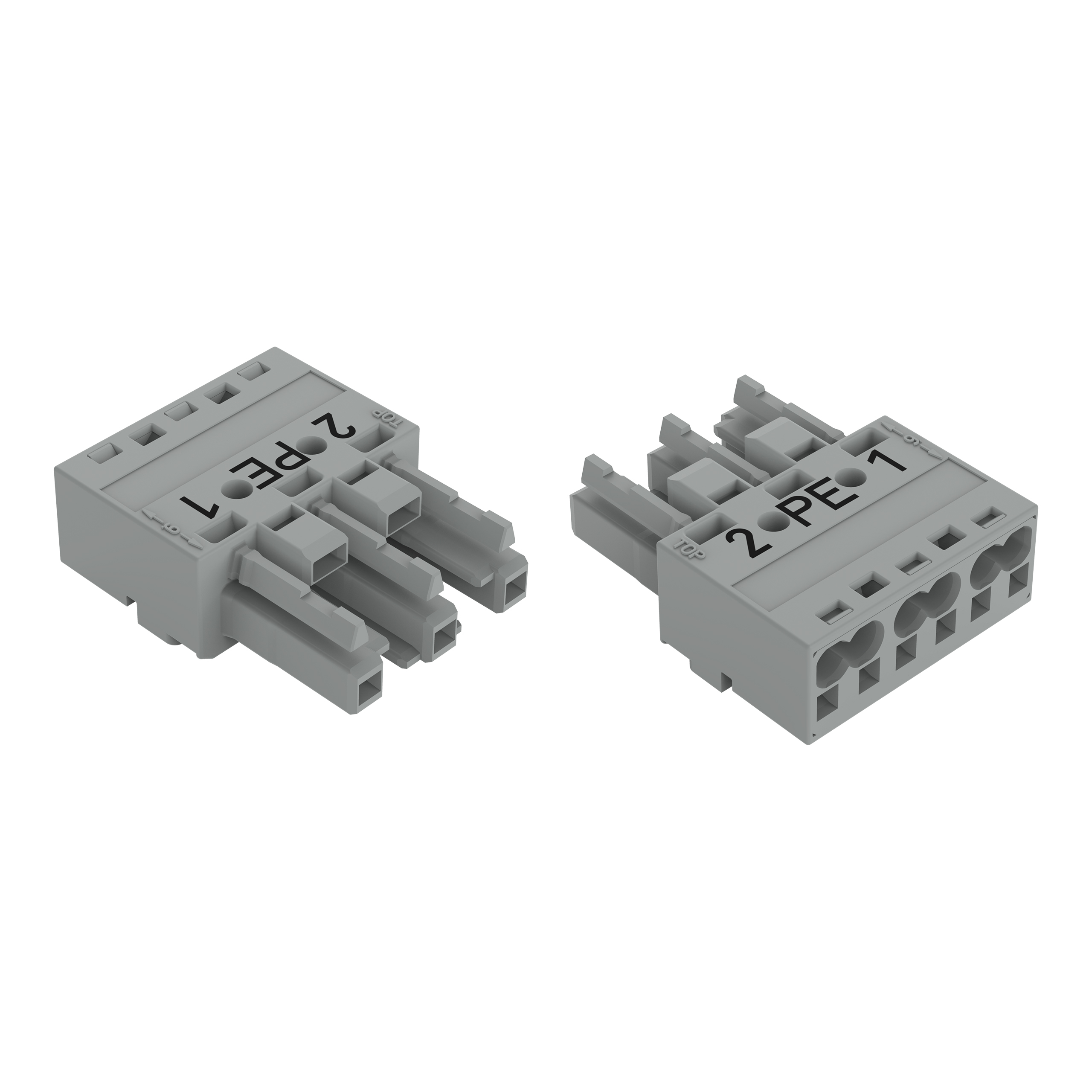

gniazdo; 3-bieg.; kodowanie B; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 9,56 g |
ETIM class: | Plug-in connector for plug-in building installation |
Fire load: | 0.045 kWh |
Halogen free: | no |
Number of connections per pole: | 2 |
Rated surge voltage: | 4 kV |
Model: | Bus |
Number of poles: | 3 |
Type of locking: | Separate |
Rated current: | 25 A |
Rated voltage: | 250 V |

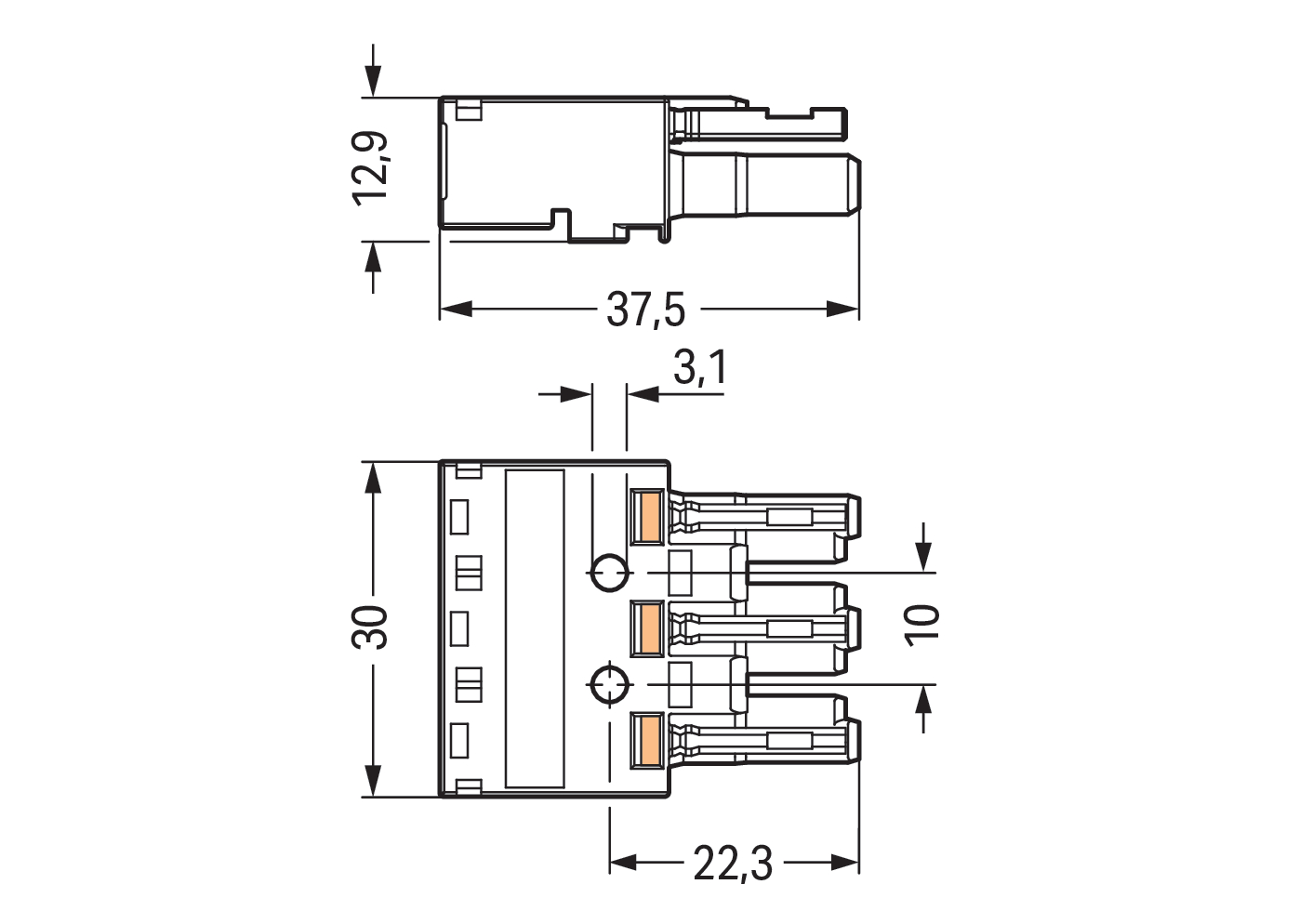

Length: | 37.5 mm |
Width: | 30 mm |
With strain relief: | no |
Height: | 12.9 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.5 - 4 mm² |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Mechanical coding: | yes |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Grey |
Pollution degree: | 3 |
Pole codification: | 1, 2, PE |
Connection cross section (fine-strand): | 0.5 - 4 mm² |
