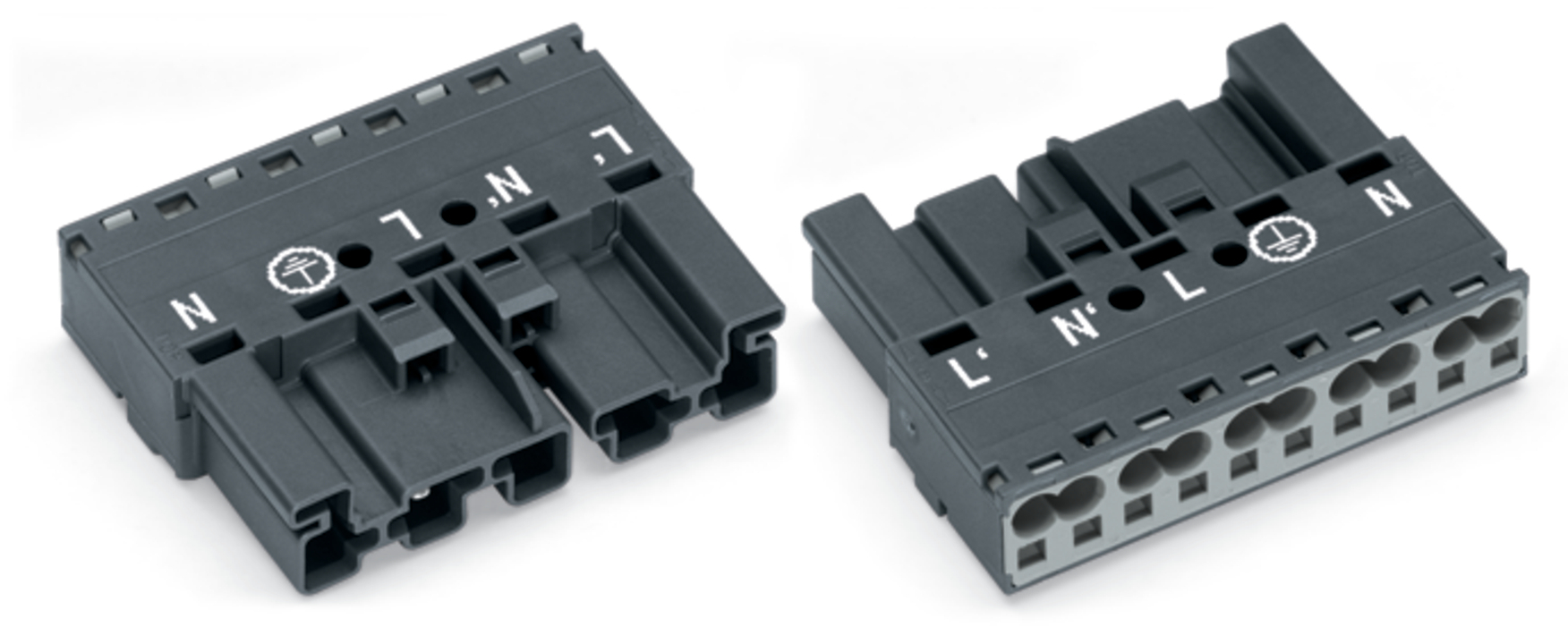

Wtyk 5-bieg., ciemnoszary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-1175 |
GTIN(EAN) | 4050821064398 |
Price unit | piece |
Catalog price | 21,05 zł (17,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
wtyk; 5-bieg.; kodowanie L; 4,00 mm²; ciemnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 16,73 g |
ETIM class: | Plug-in connector for plug-in building installation |
Fire load: | 0.09222 kWh |
Halogen free: | no |
Number of connections per pole: | 2 |
Rated surge voltage: | 6 kV |
Model: | Plug |
Number of poles: | 5 |
Type of locking: | Separate |
Rated current: | 25 A |
Rated voltage: | 400 V |

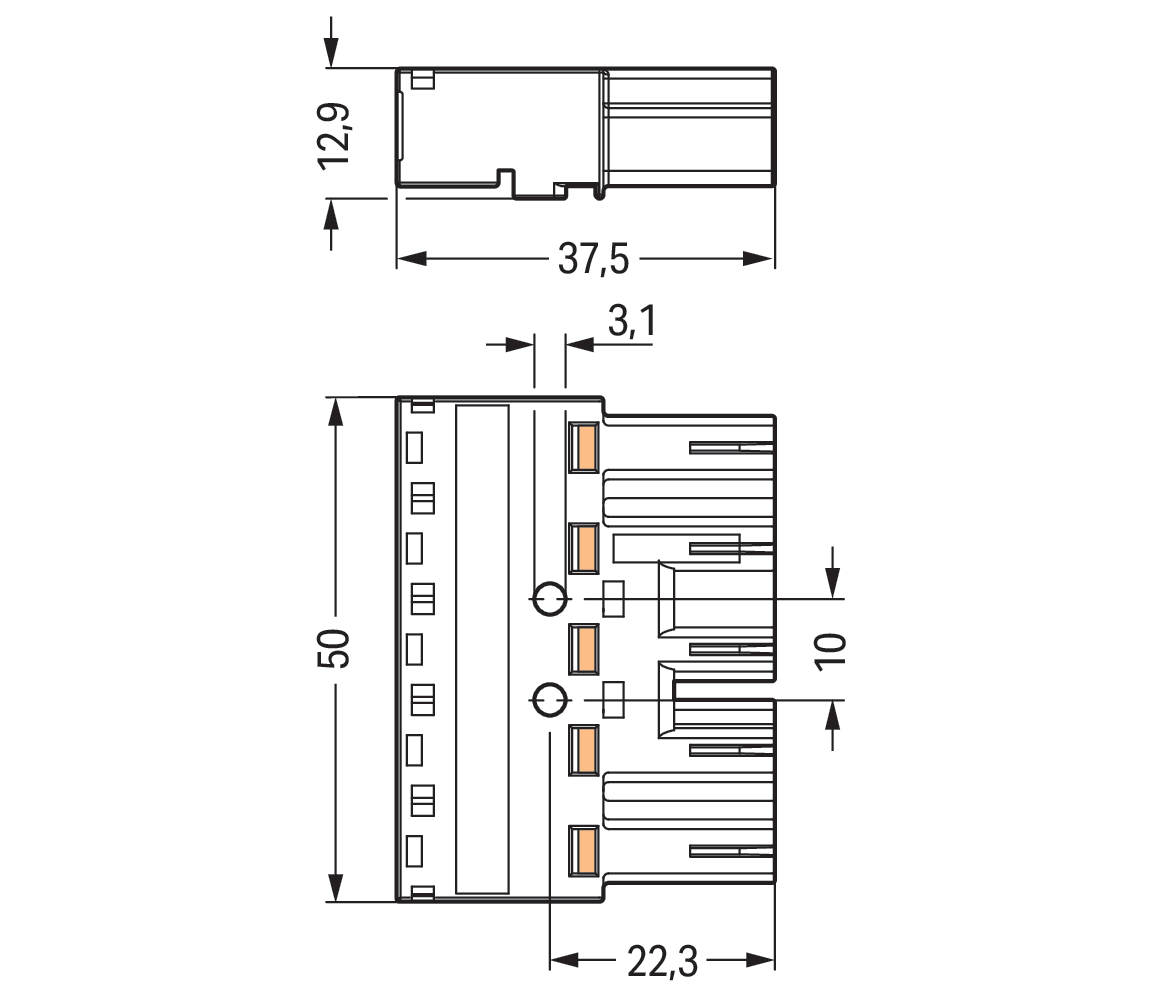

Length: | 37.5 mm |
Width: | 50 mm |
With strain relief: | no |
Height: | 12.9 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Housing material: | Polyamide (PA) |
Connection cross section (solid-core): | 0.5 - 4 mm² |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Mechanical coding: | yes |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Other |
Pollution degree: | 3 |
Connection cross section (fine-strand): | 0.5 - 4 mm² |
