Wtyk z obudową odciążającą przewody 5-bieg., niebieski
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 770-1115/022-000 |
| GTIN(EAN) | 4050821223009 |
| Price unit | piece |
| Catalog price | 33,81 zł (27,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

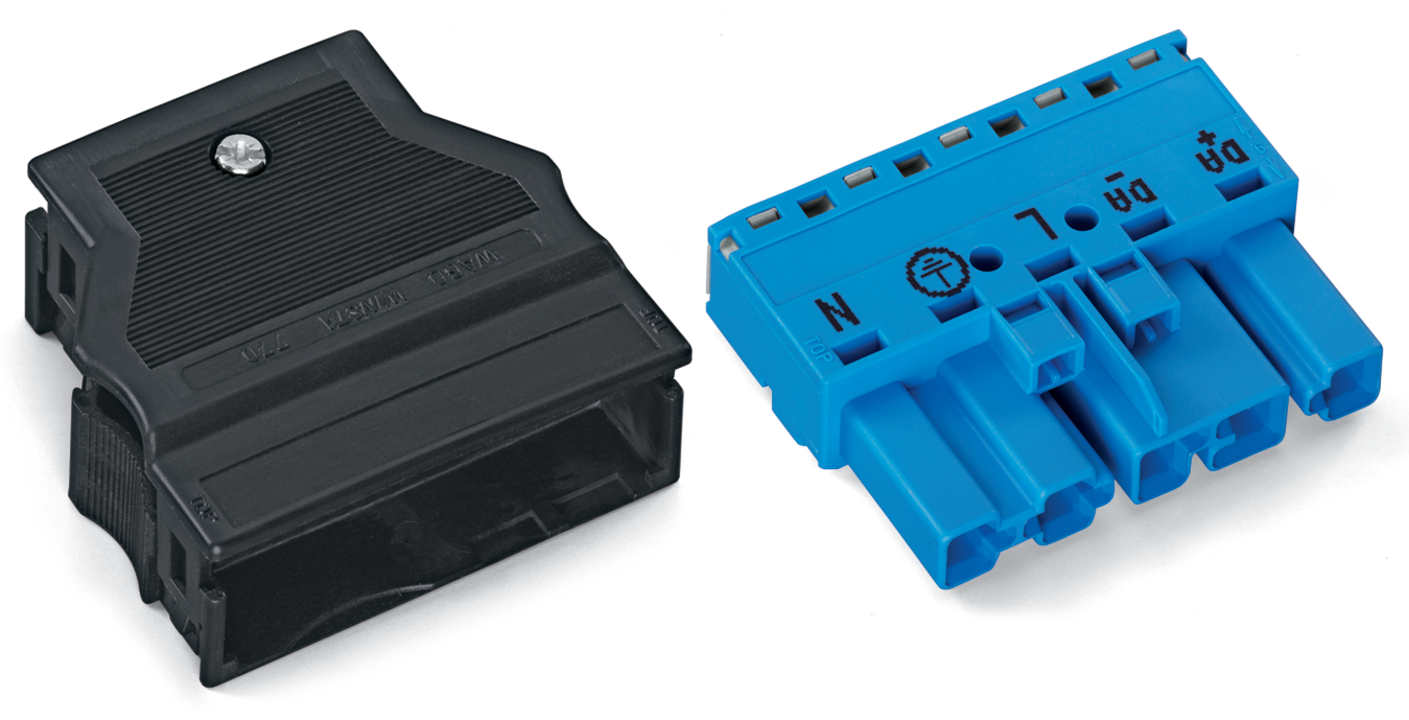

wtyk; z obudową odciążającą przewody; 5-bieg.; kodowanie I; 4,00 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 29,08 g |
| ETIM class: | Plug-in connector for plug-in building installation |
| Rated voltage: | 400 V |
| Rated current: | 25 A |
| Number of poles: | 5 |
| Degree of protection (IP): | IP20 |
| Connection type: | Spring clamp connection |
| Model: | Plug |
| Connection cross section (fine-strand): | 0.5 - 4 mm² |
| Connection cross section (solid-core): | 0.5 - 4 mm² |
| Number of connections per pole: | 2 |
| Mechanical coding: | yes |
| Colour coding/contact insert: | Blue |
| Type of locking: | Separate |
| Max. continuous temperature resistance contact part: | 85 °C |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Housing material: | Polyamide (PA) |
| Halogen free: | no |
| Contact material: | CuSn |
| Surface treatment contacts: | Tinned |
| Pollution degree: | 3 |
| Continuity resistance: | 1 mΩ |
| Rated surge voltage: | 6 kV |
| Cable diameter: | 9 - 13 mm |
| With strain relief: | yes |

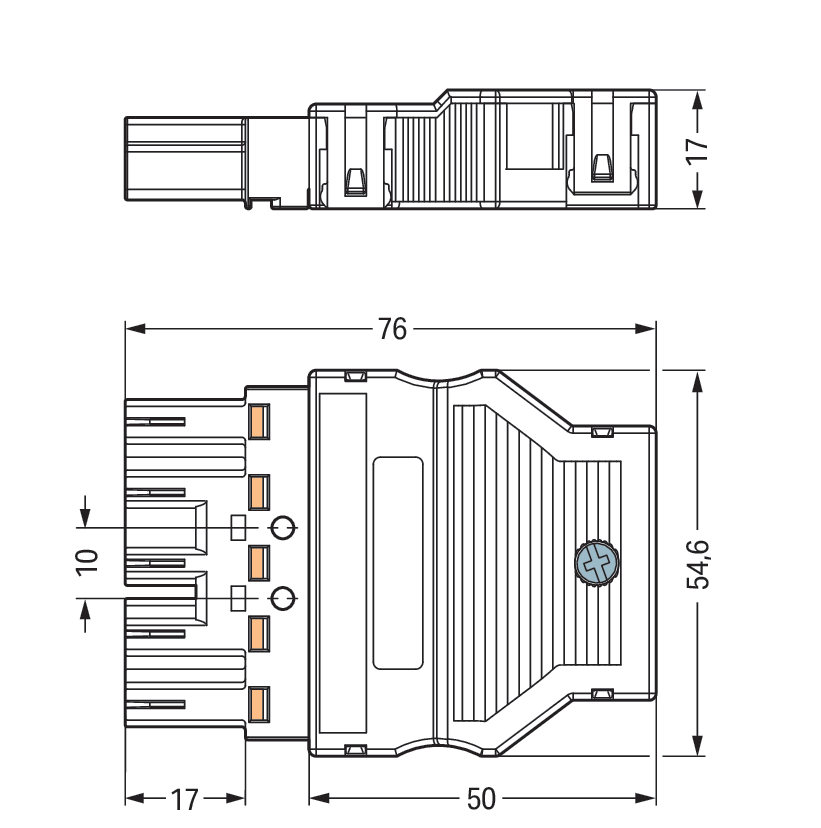

| Length: | 76 mm |
| Height: | 17 mm |
| Width: | 54.6 mm |
| Fire load: | 0.1825 kWh |
