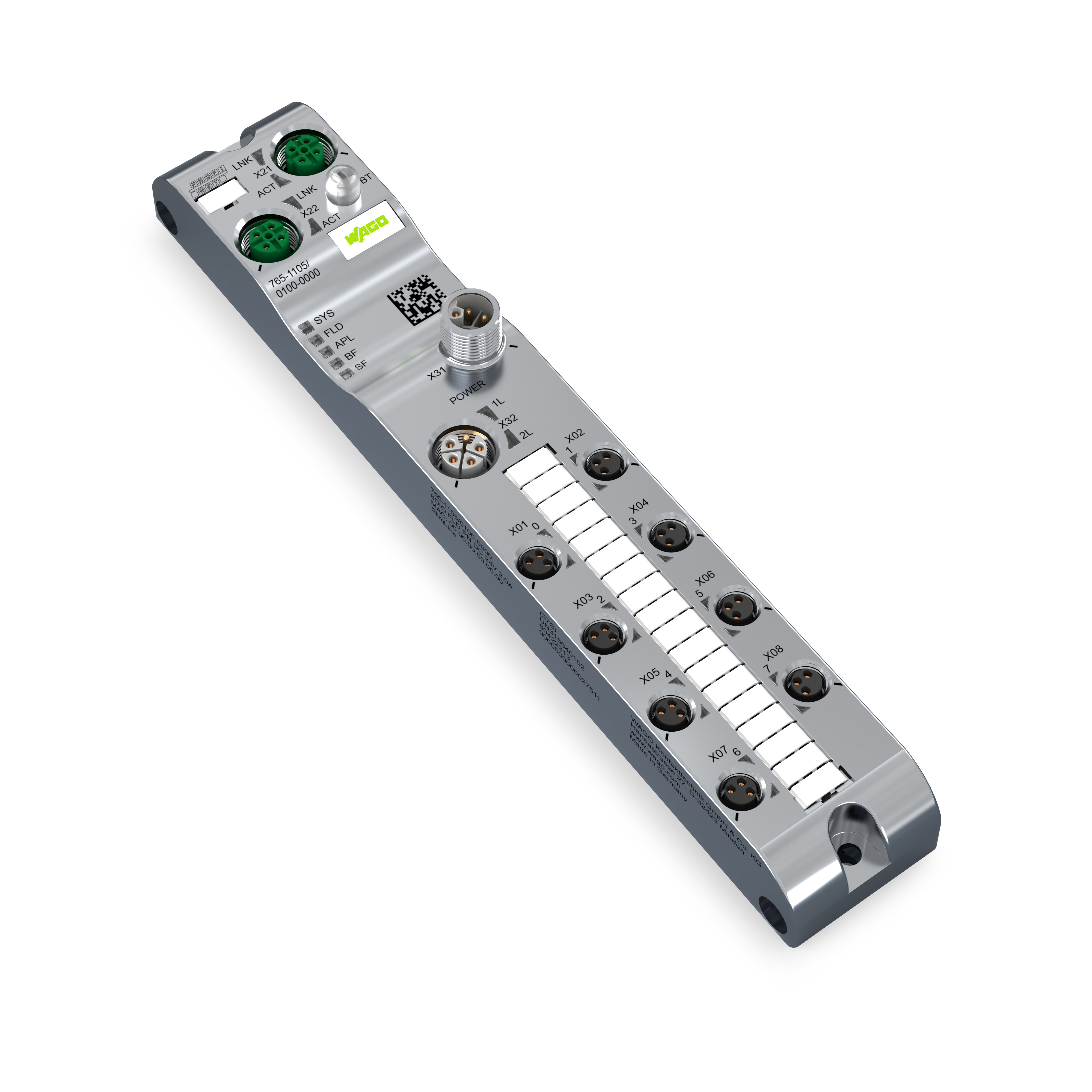

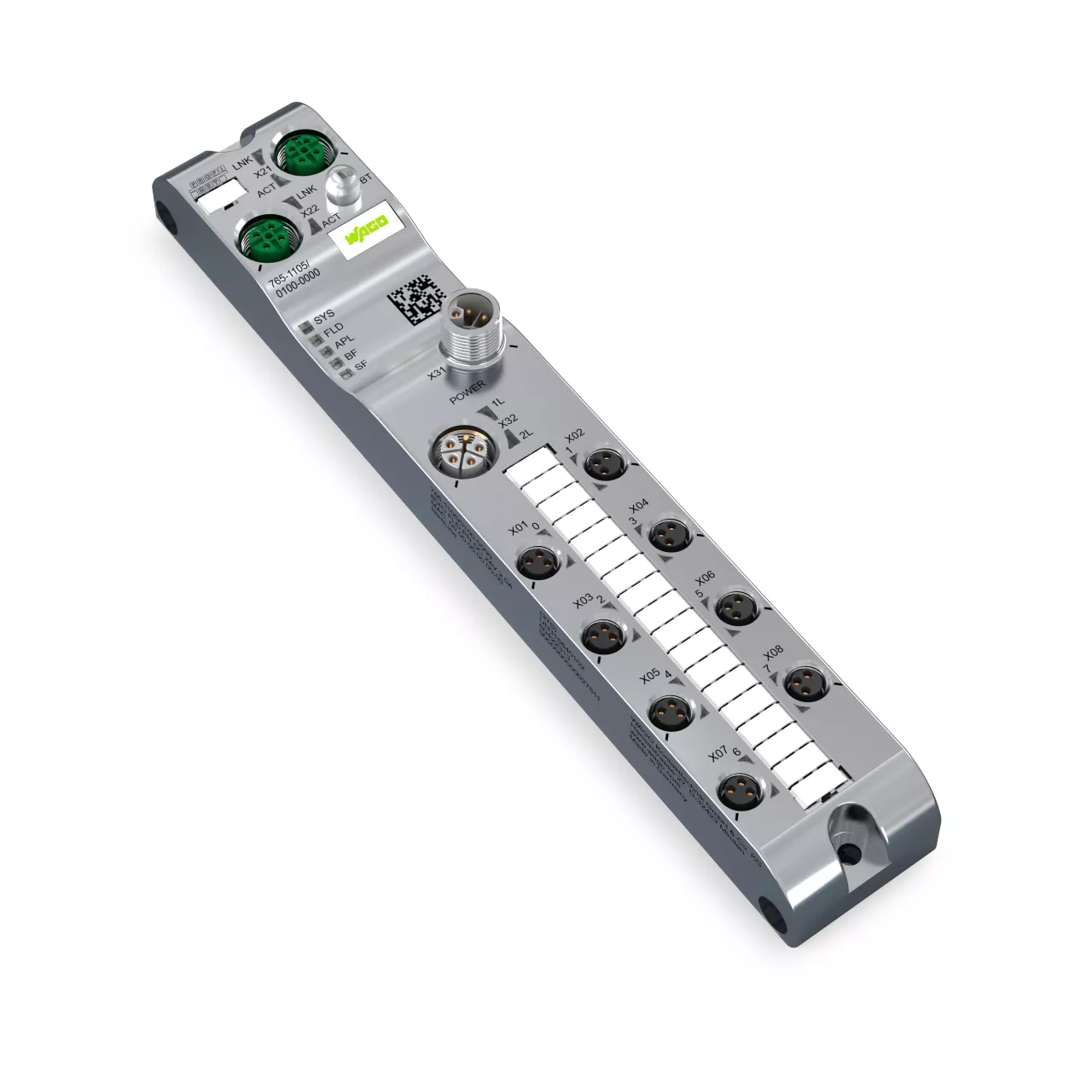

I/O System Field 8-kanałowe wejście/wyjście dwustanowe; Profinet; 24 V DC / 2,0 A; 8 x złącze M8; SlimLine
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 765-1105/100-000 |
GTIN(EAN) | 4055143949705 |
Price unit | piece |
Catalog price | 2 606,37 zł (2 119,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
moduł wejść/wyjść dwustanowych 8-kanałowy; Profinet; 24 V DC/2,0 A; 8 x złącze M8; SlimLine
Additional features:
Information | Value |
---|---|
Net weight: | 390 g |
ETIM class: | Fieldbus, decentr. periphery - digital I/O module |
Supporting protocol for AS-Interface Safety at Work: | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Type of electric connection: | Plug-in connection |
Output current: | 2 A |
Supporting protocol for INTERBUS-Safety: | no |
Radio standard GPRS: | no |
Digital outputs configurable: | yes |
Performance level according to EN ISO 13849-1: | None |
Fieldbus connection over separate bus coupler possible: | no |
Width: | 35 mm |
Radio standard GSM: | no |
Depth: | 210 mm |
Radio standard UMTS: | no |
Permitted voltage at input: | -3 - 30 V |
Height: | 30 mm |
Supporting protocol for SafetyBUS p: | no |
Type of voltage (input voltage): | DC |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for DeviceNet Safety: | no |
Voltage type (supply voltage): | DC |
Supporting protocol for PROFINET IO: | yes |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET CBA: | no |
Short-circuit protection, outputs available: | no |
Supporting protocol for LON: | no |
Supporting protocol for CAN: | no |
Appendant operation agent (Ex ib): | no |
Front built-in possible: | no |
Supporting protocol for INTERBUS: | no |
Radio standard Bluetooth: | yes |
Supporting protocol for KNX: | no |
Radio standard WLAN 802.11: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for DeviceNet: | no |
Rail mounting possible: | no |
Rack-assembly possible: | no |
Number of digital outputs: | 8 |
Suitable for safety functions: | no |
Number of digital inputs: | 8 |
Type of output voltage: | DC |
Supporting protocol for TCP/IP: | no |
IO link master: | no |
Supporting protocol for ASI: | no |
Appendant operation agent (Ex ia): | no |
Supporting protocol for PROFIBUS: | no |
Supply voltage DC: | 24 - 24 V |
With optical interface: | no |
System accessory: | yes |
Number of HW-interfaces wireless: | 0 |
Degree of protection (IP): | IP67 |
Number of HW-interfaces industrial Ethernet: | 0 |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces RS-422: | 0 |
Input current at signal 1: | 4000 mA |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Digital inputs configurable: | yes |
Number of HW-interfaces USB: | 0 |
Number of interfaces PROFINET: | 2 |
Number of HW-interfaces parallel: | 0 |
SIL according to IEC 61508: | None |
Supporting protocol for SERCOS: | no |
Number of HW-interfaces other: | 0 |
Supporting protocol for SUCONET: | no |
Wall mounting/direct mounting: | yes |
Supporting protocol for other bus systems: | no |
