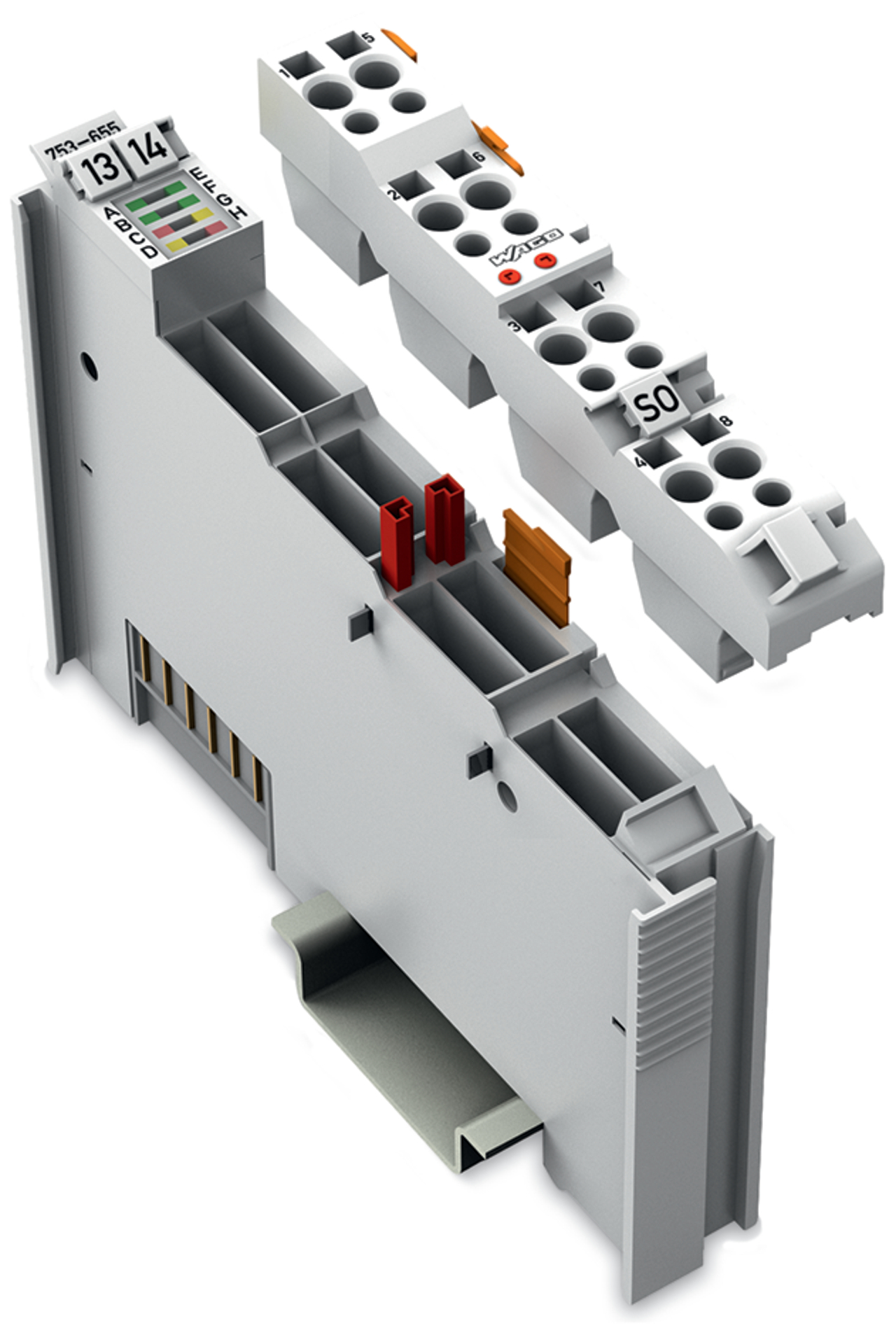

Moduł AS-Interface master jasnoszary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 753-655 |
GTIN(EAN) | 4045454641054 |
Price unit | piece |
Catalog price | 1 915,11 zł (1 557,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
moduł AS-Interface master
Additional features:
Information | Value |
---|---|
Net weight: | 46 g |
Country of origin | Niemcy |
ETIM class: | Fieldbus, decentr. periphery - communication module |
Supporting protocol for LON: | no |
Supporting protocol for AS-Interface Safety at Work: | no |
Explosion safety category for gas: | ATEX gas-ex-protection, Cat. 3G |
Explosion safety category for dust: | ATEX dust-ex-protection, Cat. 3D |
Supporting protocol for CAN: | no |
Appendant operation agent (Ex ib): | no |
Supporting protocol for INTERBUS-Safety: | no |
Front built-in possible: | no |
Supporting protocol for INTERBUS: | no |
Radio standard GPRS: | no |
Radio standard Bluetooth: | no |
Supporting protocol for KNX: | no |
Fieldbus connection over separate bus coupler possible: | yes |
Radio standard WLAN 802.11: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for Data-Highway: | no |
Radio standard GSM: | no |
Rail mounting possible: | yes |
Supporting protocol for DeviceNet: | no |
Radio standard UMTS: | no |
Rack-assembly possible: | no |
Suitable for safety functions: | no |
IO link master: | no |
Supporting protocol for TCP/IP: | no |
Supporting protocol for ASI: | yes |
Supporting protocol for PROFIBUS: | no |
With potential separation: | yes |
Appendant operation agent (Ex ia): | no |
System accessory: | yes |
Supporting protocol for SafetyBUS p: | no |
Radio standard LTE: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for PROFINET IO: | no |
Voltage type (supply voltage): | DC |
Supporting protocol for PROFIsafe: | no |
Radio standard eGPRS: | no |
Supporting protocol for SERCOS: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for SUCONET: | no |
Wall mounting/direct mounting: | no |
Supporting protocol for other bus systems: | no |
Height: | 100 mm |
Width: | 12 mm |
Depth: | 69 mm |
Degree of protection (IP): | IP20 |
Supply voltage DC: | 24 - 24 V |
