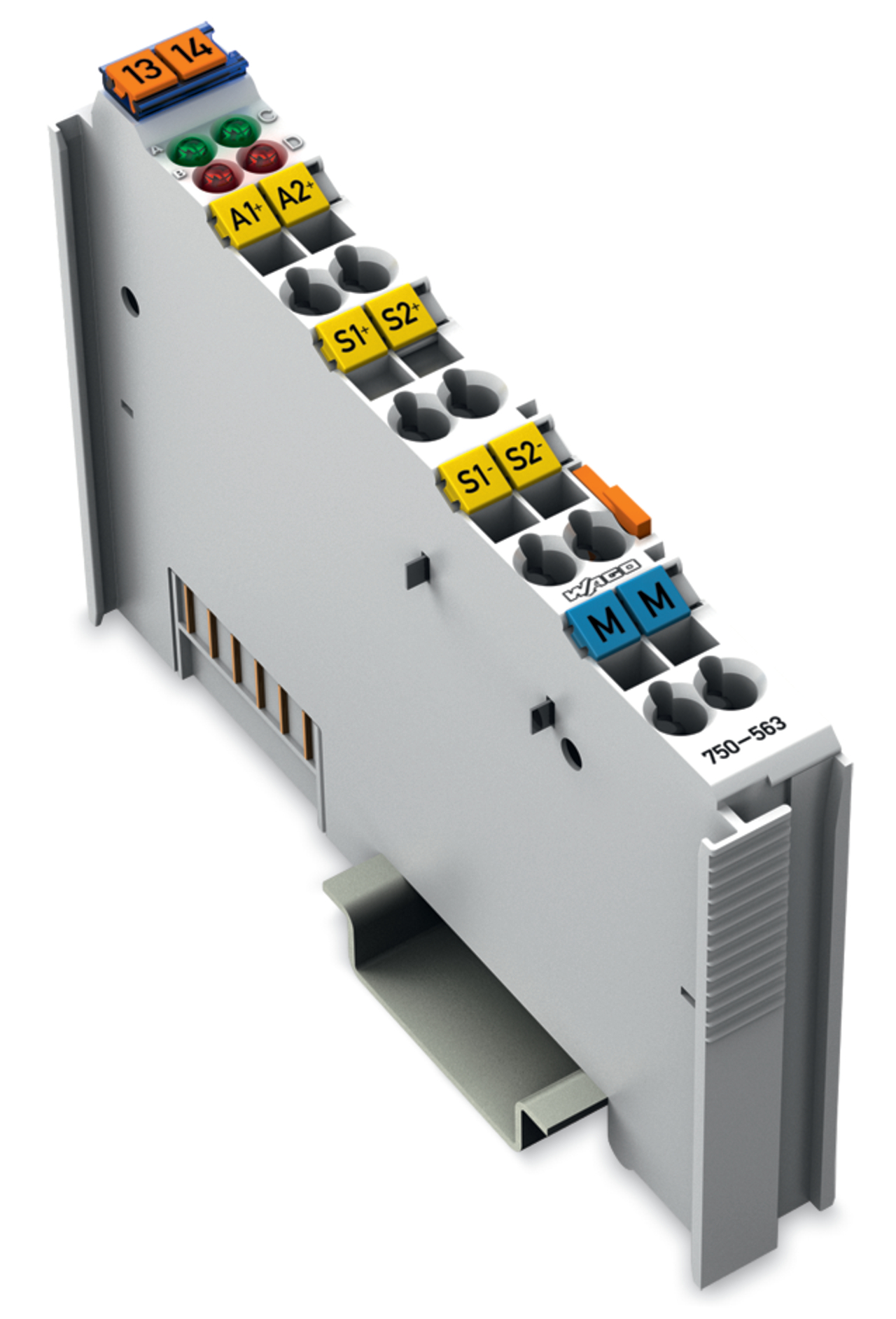

2-kanałowe wyjście analogowe 0/4-20mA, jasnoszare
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 750-563 |
| GTIN(EAN) | 4045454710323 |
| Price unit | piece |
| Catalog price | 1 483,38 zł (1 206,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

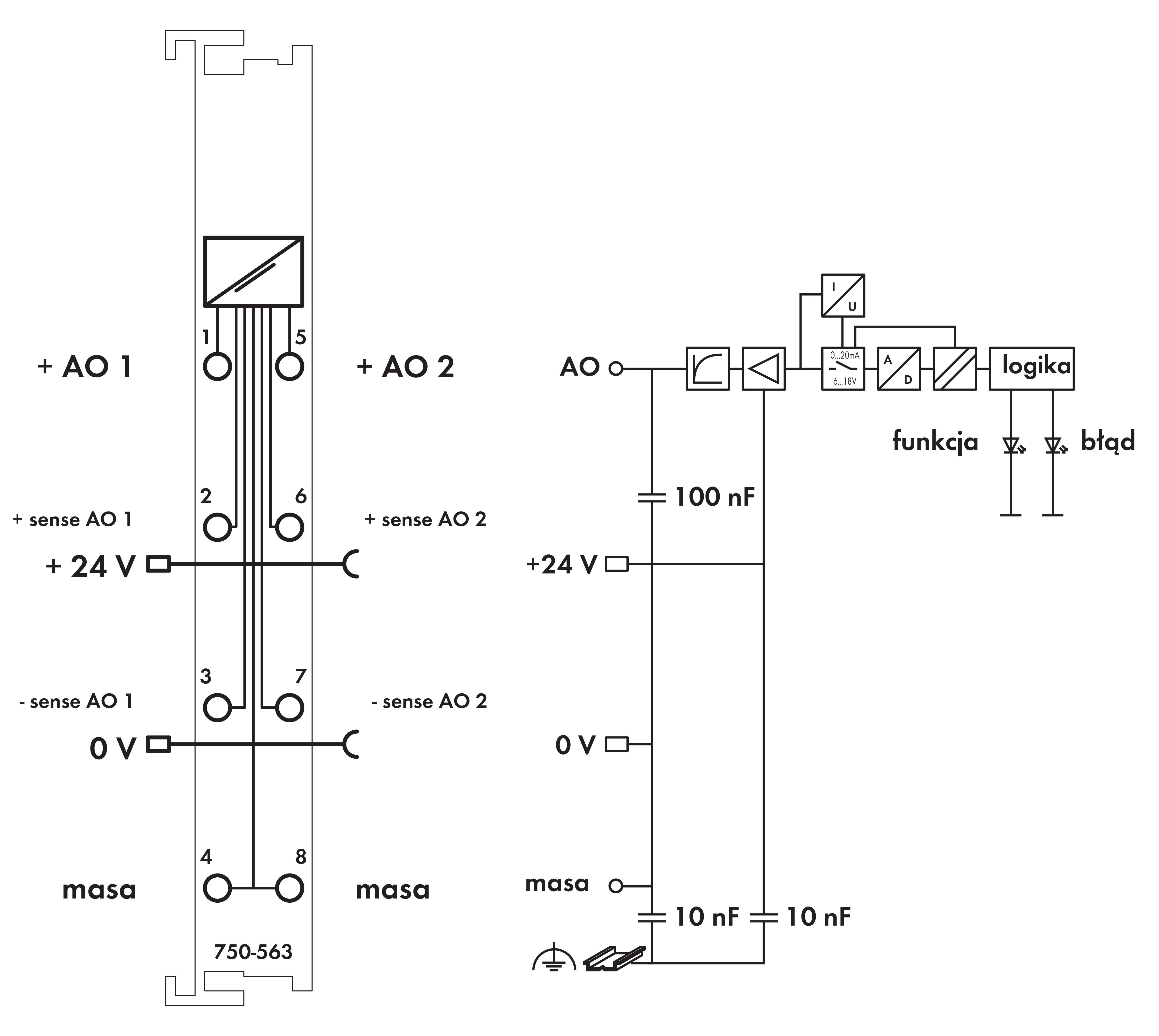

moduł wyjść analogowych 2-kanałowy; 0/4 … 20 mA; 16 bitów; 6 … 18 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 51,16 g |
| ETIM class: | Fieldbus, decentr. periphery - analogue I/O module |
| Explosion safety category for gas: | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Explosion safety category for dust: | ATEX dust-ex-protection, Cat. 3D |
| Type of electric connection: | Spring clamp connection |
| Supporting protocol for INTERBUS-Safety: | no |
| Radio standard GPRS: | no |
| Fieldbus connection over separate bus coupler possible: | yes |
| Width: | 12 mm |
| Depth: | 69.8 mm |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Height: | 100 mm |
| Input, current: | no |
| Input, voltage: | no |
| Input, resistor: | no |
| Supporting protocol for SafetyBUS p: | no |
| Input, resistance thermometer: | no |
| Input, thermocouple: | no |
| Input signal, configurable: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET CBA: | no |
| Number of analogue outputs: | 2 |
| Number of analogue inputs: | 0 |
| Supporting protocol for LON: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for INTERBUS: | no |
| Front built-in possible: | no |
| Radio standard Bluetooth: | no |
| Supporting protocol for KNX: | no |
| Radio standard WLAN 802.11: | no |
| Supporting protocol for Modbus: | no |
| Output, current: | yes |
| Supporting protocol for Data-Highway: | no |
| Output, voltage: | yes |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Rack-assembly possible: | no |
| Output signal configurable: | yes |
| Suitable for safety functions: | no |
| Supporting protocol for TCP/IP: | no |
| IO link master: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ia): | no |
| Supply voltage DC: | 24 - 24 V |
| Analogue outputs configurable: | yes |
| Number of HW-interfaces wireless: | 0 |
| System accessory: | yes |
| Resolution of the analogue outputs: | 16 b |
| Analogue inputs configurable: | no |
| Degree of protection (IP): | IP20 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of HW-interfaces other: | 0 |
| Supporting protocol for SUCONET: | no |
| Wall mounting/direct mounting: | no |
| Supporting protocol for other bus systems: | no |
